Quick Details
-
Brand Name:
-
Winvall
-
Top Sale Fast Delivery CE&ROHS:
-
small compact latest new 1/2" 3/4" 1" 1 1/4" 1 1/2"
-
12v 220v 24v 110v 3v ac dc 0~10v 4~20mA:
-
brass bronze ss316 ss304 stainless steel
-
cw617n cf8m cf8m 1000 wog upvc ss cpvc:
-
cf8m stainless steel copper stainless cast iron carbon steel
-
cw617n aluminum galvanized rubber brass:
-
titanium ceramic reducing port three way two way mini
-
4-way wafer type spring return:
-
self close self closing female male compression fitting 90 degree
-
high medium temperature big flow rate:
-
low power consumption IP55 IP45 IP65 waterproof fire proof 2.0Mpa
-
pvc electric actuator motorized pvc:
-
motorised electronic automatic spring return magnetic lockable
-
ON/OFF 3~Point Modulating Proportional:
-
Control floating motorized electric motorized control electric
-
actuator mounted water flow control:
-
fluid flow control flow control chemical solar heating hvac
Quick Details
-
Port Size:
-
1/2'' 3/4'' 1''
-
Place of Origin:
-
Hunan, China
-
Model Number:
-
WRA-6320A
-
Brand Name:
-
Winvall
-
Top Sale Fast Delivery CE&ROHS:
-
small compact latest new 1/2" 3/4" 1" 1 1/4" 1 1/2"
-
12v 220v 24v 110v 3v ac dc 0~10v 4~20mA:
-
brass bronze ss316 ss304 stainless steel
-
cw617n cf8m cf8m 1000 wog upvc ss cpvc:
-
cf8m stainless steel copper stainless cast iron carbon steel
-
cw617n aluminum galvanized rubber brass:
-
titanium ceramic reducing port three way two way mini
-
4-way wafer type spring return:
-
self close self closing female male compression fitting 90 degree
-
high medium temperature big flow rate:
-
low power consumption IP55 IP45 IP65 waterproof fire proof 2.0Mpa
-
pvc electric actuator motorized pvc:
-
motorised electronic automatic spring return magnetic lockable
-
ON/OFF 3~Point Modulating Proportional:
-
Control floating motorized electric motorized control electric
-
actuator mounted water flow control:
-
fluid flow control flow control chemical solar heating hvac

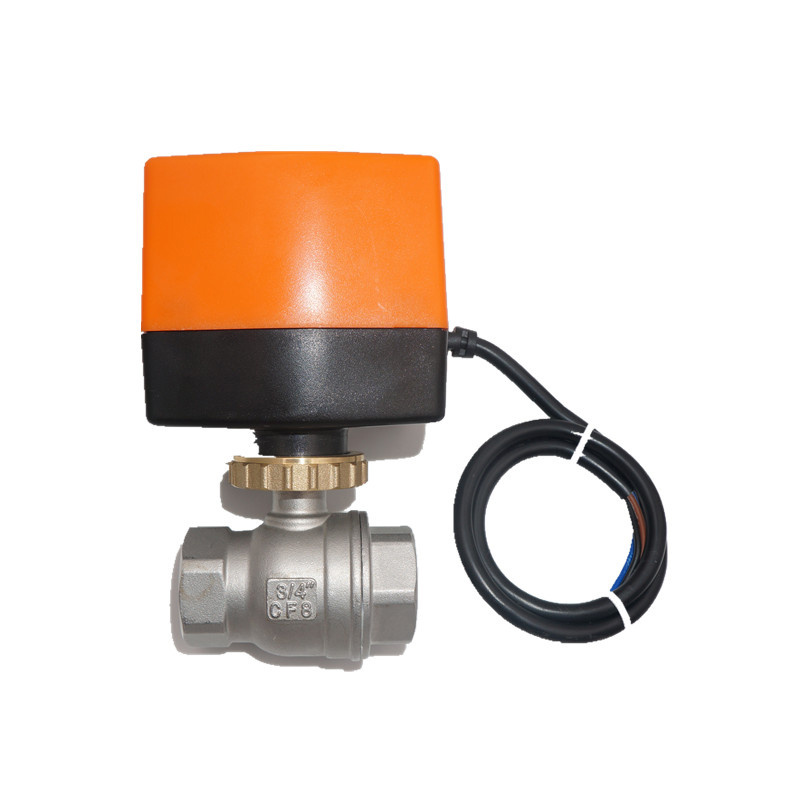

Description of Motorized Water Valve
Winner m otorized ball valve consists of on/off type or 3-point type actuator and W8BV… series ball valve , which have compact structure , stable operation , excellent capacity of water stoppage, large water flow rate, zero dirt block and low torque .
Application of Motorized Water Valve
HVAC system , heating system , Water treatment system , Industrial equipment
Technical data
Valve body:
Medium: cold/hot water, with 50% glycol Temperature of medium: 2°C... 90 °C
Rated pressure: PN20 Pipe connector: internal thread
Ambient temp. range: −5…+60°C;0…90%RH
Material
Valve body: forged brass, Hpb59-1 Seal: ball: EPDM+PTFE
Ball: chrome-plated brass Stem: EPDM O-rings
Ball Valve
|
Model No. |
Valve type |
Inner Dia. |
Inch |
Kvs(m3/h) |
Pvmax(KPa) |
Ps(KPa) |
|
WSBV215 |
2 -way
|
12mm |
1/2” |
6.15 |
1000 |
1400 |
|
WSBV220 |
15mm |
3/4” |
10.5 |
1000 |
1400 |
|
|
WSBV225 |
20mm |
1” |
16.1 |
1000 |
1400 |
Actuator
Function ( 3-point or on/off type )
The actuator is controlled by a modulating on/off or 3-point control signal, using r eversible synchronous motor and gear speed reducer drive to fix and lock.
|
Model No. |
Working Voltage |
Actuator type |
Output torque |
Consumption |
On/off time |
Valve body |
|
WRA-6320A |
230VAC±15% 50/60Hz |
On/off |
3.5N.m |
5W |
50Hz:16S 60Hz:12S |
WSBV215 WSBV220 WSBV225
|
Installation
insert the valve stem to the b o tto m of the actuator, and insert 2 pin, located in the bottom of the actuator to the valve ’ s mounting hole. Then screw down the brass cap nut
|
||
A
Professional Partner You Can Trust!
--The company adopts
PPAP standard
makes products.
--Nearly
20 years
experience.
--Defective rate is controlled
within 0.5‰
.
--Quality warranty is
18 months
,normal lifespan can be
4~5 years
.
--High quality raw materials:electric relay is from
Panasonic
,capacitor is from
Rubycon
and safty capacitor is from
Okaya.
--
CE&ROHS,ISO9001
Certificates.
--
Utility model patents
for actuators and valve atructure.
--Partipating exhibitions like
Chilventa,RHVAC,CR-Expo
overseas and domestic.
