Quick Details
-
Application:
-
Can be used both indoors, outdoors and offshore
-
acoustic insulation characteristics:
-
Up to -25dB
-
Color:
-
Optional colors available upon request
-
Installation:
-
On wall mounting
-
Material:
-
Polyethylene plastic construction
-
contain an inside lamp:
-
Optional available upon request
-
Stainless Steel Installation panel:
-
Yes
-
polyurethane acoustic insulation liner:
-
Yes
-
Fire Retardant:
-
Yes
-
UV resistant:
-
Yes
Quick Details
-
Brand Name:
-
J&R
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
JR-TH-01
-
Application:
-
Can be used both indoors, outdoors and offshore
-
acoustic insulation characteristics:
-
Up to -25dB
-
Color:
-
Optional colors available upon request
-
Installation:
-
On wall mounting
-
Material:
-
Polyethylene plastic construction
-
contain an inside lamp:
-
Optional available upon request
-
Stainless Steel Installation panel:
-
Yes
-
polyurethane acoustic insulation liner:
-
Yes
-
Fire Retardant:
-
Yes
-
UV resistant:
-
Yes
OEM&ODM Acoustic Booth,Sound Proof Telephone Booths,-23dB Acoustic Hood

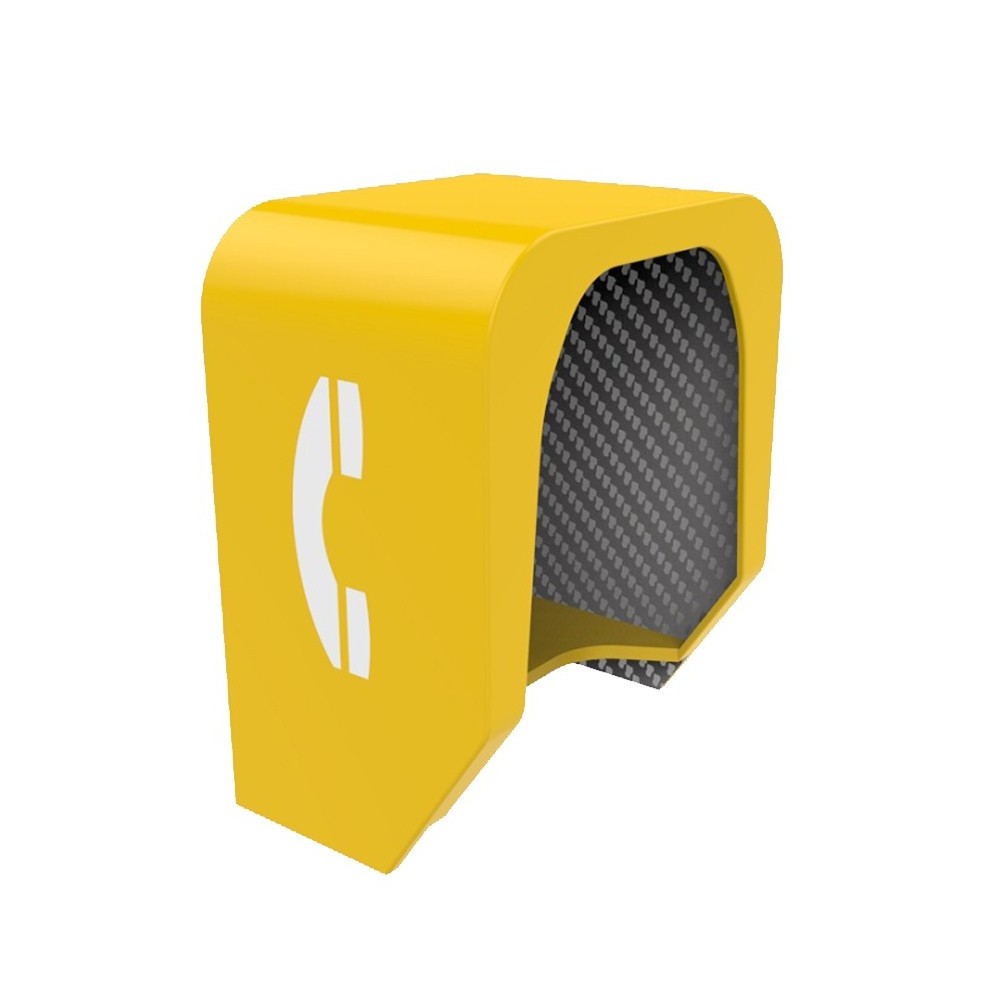

Model: JR-TH-01 Acoustic Booth/Hood
The Acoustic Hood made of fiberglass reinforced polyester(GRP), expecially designed for installation in corrosive industrial and marine areas, Off-Shore & On-Shore, with non hygroscopic sound absorbing filling material, attenuation up to -24dB(SPL).It can be used both indoors, outdoors.
The hood is fixed to the wall via two stainless steel mounting brackets that are secured through the hood's back wall to the inner telephone apparatus plate. This enables a load of up to 60 kgs to be safely mounted on the plate. The plate is pre-drilled to accept many telephones.
Main Characteristics for
OEM&ODM Acoustic Booth,Sound Proof Telephone Booth 23dB Acoustic Hood
1. Acoustic insulation: Noise Attenuation up to 25 dB
2. Polyethylene plastic construction
3. Polyethylene material flammability
4. Durable, lightweight, chemical resistant body
5. Excellent low temperatures impact properties
6. High performance polyurethane acoustic insulation liner, resistant to mildew and rot. Fire retardant class "0" rating
7. Completely maintenance free and corrosion resistant, impervious to chemical attack
8. Can be used both indoors, outdoors and offshore
9. Standard color - Yellow; Optional colors available upon request
10. UV resistant and suitable for harsh environment
11.Designed for corrosive and saline atmosphere
12.Suitable for heavy industrial telephones (up to 60 kg)
13.Easy fixing system
14.Special shape for higly noisy areas
15.Pass-trough hole on the shelf for cables inlet
16. Fire Retardant
17. Dimension:780*680*500(mm)
Operating Temperature: -30°C to +65°C
Storing Temperature: -40°C to +75°C
Materials: Fiberglass reinforced polyester (GRP)
APPLICATIONS for
OEM&ODM Acoustic Booth,Sound Proof Telephone Booth 23dB Acoustic Hood
Power Plants, Aerospace, Nuclear facilities, Factories, Chemical plants, Bulk loading stations, Mines, Drilling rigs, Steel mills, Off shore platforms, Any high noise industrial location and more.
Our Service
1.OEM&ODM service is available.
2.We will do our best to meet customer's requirements.
10 Reasons to Choose J&R
1. Where environmental factors pose a problem for conventional telephones
2. Where emergency communication points are needed
3. Where public information points are needed
4. When reliability and up-time are critical goals
5. When central management and control are important
6. Where maintenance access is difficult
7. When compatibility to existing systems is important
8. When voice sound quality is important
9. When future-proofing is needed
10. When ease of installation is important Service – Here when you Need us At J&R, we strive to deliver excellent service and customer support. We offer accreditation and installation training to our authorised partners, imparting best practice when it comes to installation and maintenance support. We also offer extended warranties and repair services on all our deliveries. We aim to respond to all product support requests within 24 hours.
Package for OEM&ODM Acoustic Booth,Sound Proof Telephone Booth 23dB Acoustic Hood
Telephone Booth Size: 780 * 680 * 500 (mm)
Wooden Box size:787 *685 *510( mm)
Packaging materials: pearl cotton, wooden box
Shippment for OEM&ODM Acoustic Booth,Sound Proof Telephone Booth 23dB Acoustic Hood
