Quick Details
-
Brand Name:
-
Uyoung
-
Year:
-
hot sale
-
Voltage:
-
Customized to customer needs
-
Dimension(L*W*H):
-
6*5*4m
-
Hollow part volume:
-
40L-200L
-
Screw L/D Ratio:
-
28
-
Screw diameter (mm):
-
120 mm
-
Screw Heating Power(kW):
-
20 kW
-
Extruder Motor Power(kW):
-
90 kW
-
Mold Platen Size(Width)(mm):
-
1500 mm
-
Mold Platen Size(Height)(mm):
-
1600 mm
-
Air Pressure(MPa):
-
0.8 MPa
-
Air Comsumption(m³/min):
-
0.3 m³/min
-
Die Head Heating Power(kW):
-
25 kW
-
Accumulator Capacity(L):
-
12.5 L
-
Power (kW):
-
140
-
Weight (T):
-
25
-
Certification:
-
CE IS09001
-
Color:
-
customized
-
Parison Control:
-
MOOG
-
Valve:
-
YUKEN
-
Parison controller:
-
MOOG
-
Inverter:
-
ABB/SIMENS
-
Motor:
-
SIEMENS(NOT BEIDE)
-
After-sales Service Provided:
-
Online support,Engineers available to service machinery overseas
-
Advantages:
-
20 Years Experiences
-
Key words:
-
Automatic Extrusion Blow Moulding Machine
Quick Details
-
Clamping Force (kN):
-
600
-
Output (kg/h):
-
300 kg/h
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Uyoung
-
Year:
-
hot sale
-
Voltage:
-
Customized to customer needs
-
Dimension(L*W*H):
-
6*5*4m
-
Hollow part volume:
-
40L-200L
-
Screw L/D Ratio:
-
28
-
Screw diameter (mm):
-
120 mm
-
Screw Heating Power(kW):
-
20 kW
-
Extruder Motor Power(kW):
-
90 kW
-
Mold Platen Size(Width)(mm):
-
1500 mm
-
Mold Platen Size(Height)(mm):
-
1600 mm
-
Air Pressure(MPa):
-
0.8 MPa
-
Air Comsumption(m³/min):
-
0.3 m³/min
-
Die Head Heating Power(kW):
-
25 kW
-
Accumulator Capacity(L):
-
12.5 L
-
Power (kW):
-
140
-
Weight (T):
-
25
-
Certification:
-
CE IS09001
-
Color:
-
customized
-
Parison Control:
-
MOOG
-
Valve:
-
YUKEN
-
Parison controller:
-
MOOG
-
Inverter:
-
ABB/SIMENS
-
Motor:
-
SIEMENS(NOT BEIDE)
-
After-sales Service Provided:
-
Online support,Engineers available to service machinery overseas
-
Advantages:
-
20 Years Experiences
-
Key words:
-
Automatic Extrusion Blow Moulding Machine
Products Description

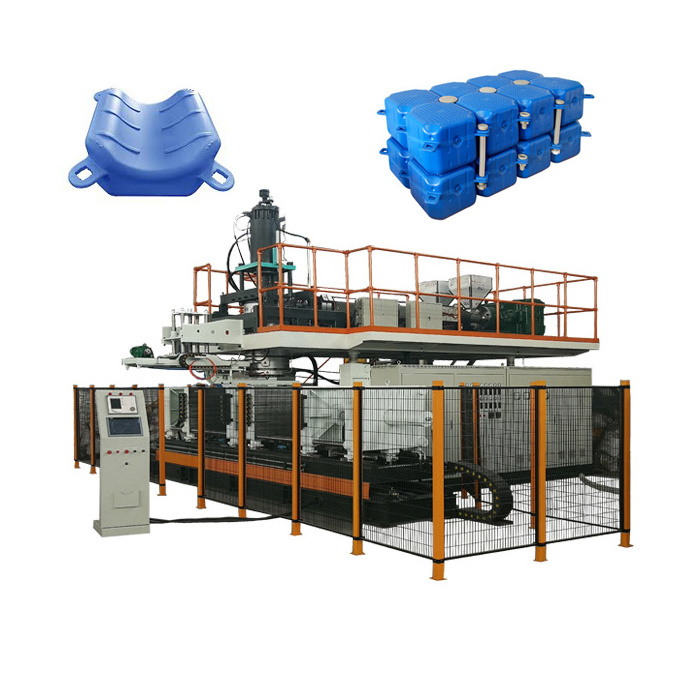

UYBM200L

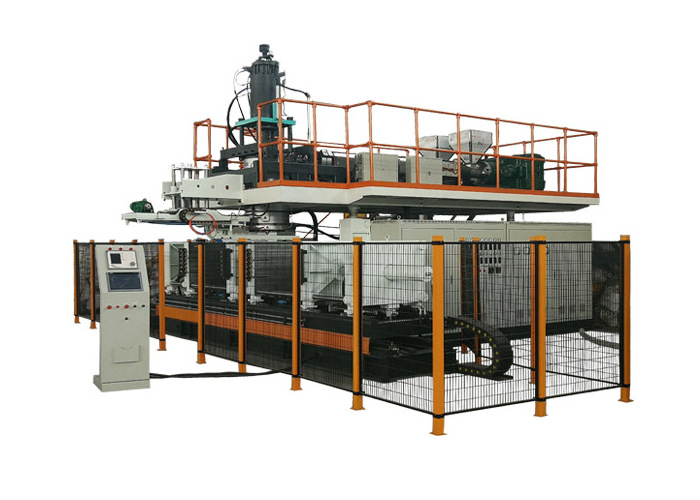

Machine Overview
Fully Automatic tank,drum and bucket Blow Molding Machine to produce Jerry cans,oil bucket,painting buckets,from 20 litter to 50 liter
,products can be designed into from 1 layer to multi-layers.As clients' request,this machine can be designed to produce other blow molded plastic products which within size and weightlimit.
Product Paramenters
|
Main parts brand
|
|
|
||
|
Motor
|
Siemens（Not BEIDE）
|
Germany
|
||
|
Inverter
|
Siemens/ABB
|
Germany
|
||
|
Touch screen/PLC
|
Siemens
|
Germany
|
||
|
Thickness controller/Servo valve
|
MOOG
|
Japan
|
||
|
Oil pump/valve
|
YUKEN
|
Japan
|
||
|
Gear box
|
Guomao/SEW
|
China/Germany
|
||
|
Low-voltage apparatus
|
Schneider/Omron
|
|
||
|
Displacement pickup
|
Jefran
|
Italy
|
||
|
Hydraulic oil seal
|
DZ
|
Taiwan，China
|
||
|
Intermediate relay/Thermal relay/Contactor/Air switch/Circuit breaker
|
Schneider
|
France
|
||
|
Servo System
|
Delta/Inovance
|
Taiwan，China
|
||
Details Images

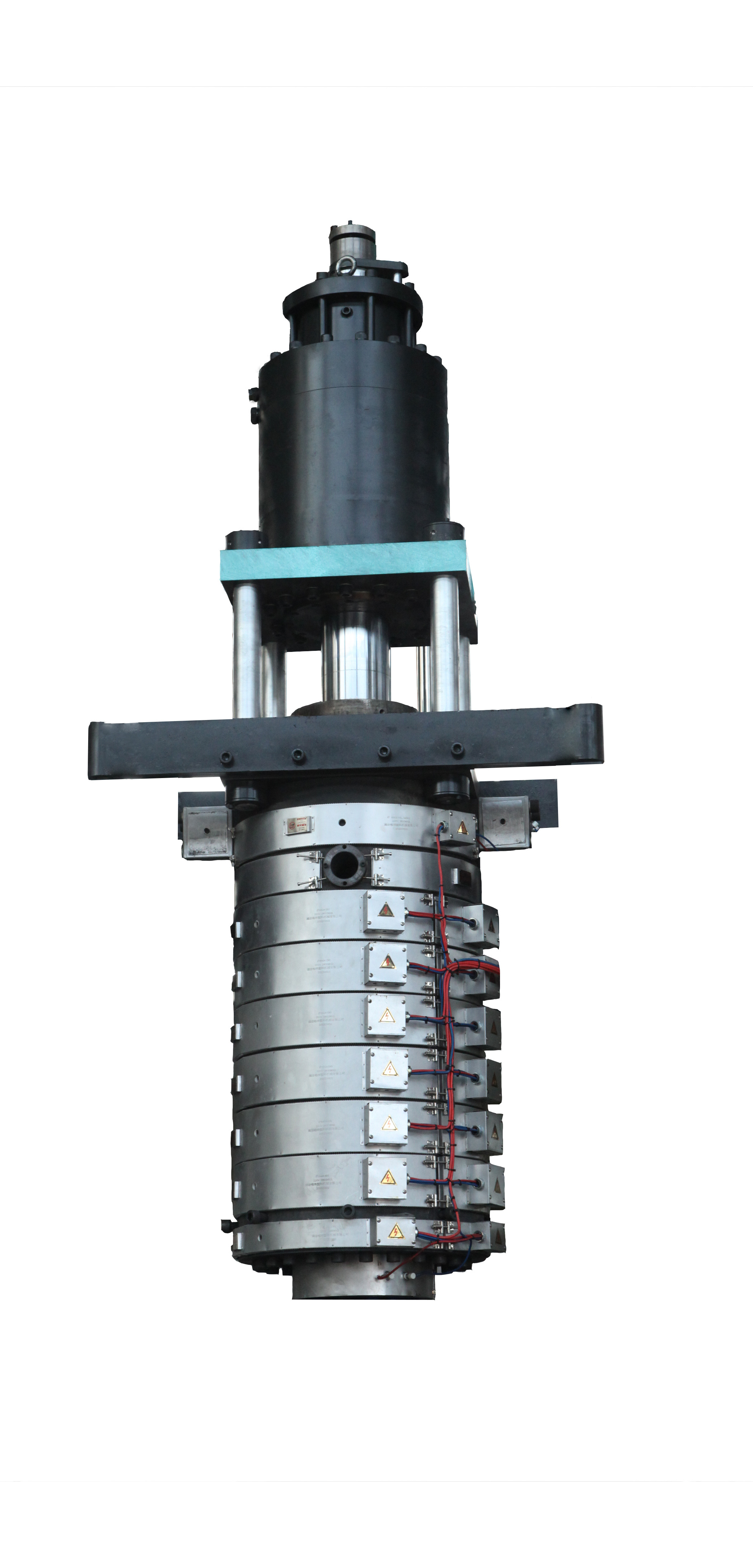

Die Head
Advantage：
Our Company Patent Technology
It can be designed from single to 8 layers
Material：
Nitrided 38CrMoAIA Material.
High precision core pin processing technology
Heating way：
Mica,Electromagnetic or far-infrared heating Choices
Control:
100 point wall thickness control system, Moog valve and electronic ruler, high precision cooperatio.
Clamping Unit
Three cylinders with three platen construction advantages:
Reduce recycled time.Enlarged locking force for better products.
Longer using life:
Runing on guide rails and all platens on sliders,run smoothly.
The clamping force is evenly distributed on the platen,
which is not easy to deform.
No noise:
Servo system makes pump and motor runing only when it needs.
Energy-efficient:
Prefill oil tank makes operation
efficiency and energy saving.
Serovo motor saves more energy.
Main control unit
12''
Siemens
Touch Screen
100 points MOOG thickness controller DigiPack III [Touch screen type]
Equipped with emergency quick switch
Temperature Controller
Real time monitoring
Easy to identify,convenient to operate
Extruders
Motor connects with gear box directly
Reduce energy loss,easy maintaining
Guide rails and sliders
HIWIN brand.
High operation accuracy.
Longer using and service life
Hydraulic valve
Equipped famous brand,more stable and reliable,longer using life.
Oil pump
SUMITOMO servo gear pump
Significant energy saving effect.
Servo system
Save electricity and more quiet, precise, durable and efficient.
Products Layer Analysis
We can manufacture one - to - ten - layers production Blow Molding Machines
OUTER LAYER
:HDPE material with UV protection, natural or pigmented.
MIDDLE LAYERS
: Use regrind material to reduce product cost,It can also serve as adhesive layer, EVOH layer according to product application.
INNER LAYER
: 100% Virgin material Food Grade.
Such as:Outer layer-15% MIDDLE LAYERS-70% INNER LAYER-15%
