Quick Details
-
Weight:
-
0.25
-
Size:
-
215/ 260 / 300mm
-
Weight (KG):
-
0.25 kg
-
Color:
-
Black
-
Material:
-
EPDM/Silicon /PTFE Membrane
-
Diameter:
-
215/ 260 / 300mm
-
Bubble Type:
-
Fine Bubble
-
Bubble Size:
-
1-2mm
-
Connector:
-
3/4 NPT
-
Flow Range:
-
1-10m3/h
-
Service Area:
-
0.2-1.2m2
-
Service Life:
-
More Than 5 Year
-
Certificate:
-
CE
Quick Details
-
Core Components:
-
EPDM/Silion
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Manvac
-
Weight:
-
0.25
-
Size:
-
215/ 260 / 300mm
-
Weight (KG):
-
0.25 kg
-
Color:
-
Black
-
Material:
-
EPDM/Silicon /PTFE Membrane
-
Diameter:
-
215/ 260 / 300mm
-
Bubble Type:
-
Fine Bubble
-
Bubble Size:
-
1-2mm
-
Connector:
-
3/4 NPT
-
Flow Range:
-
1-10m3/h
-
Service Area:
-
0.2-1.2m2
-
Service Life:
-
More Than 5 Year
-
Certificate:
-
CE

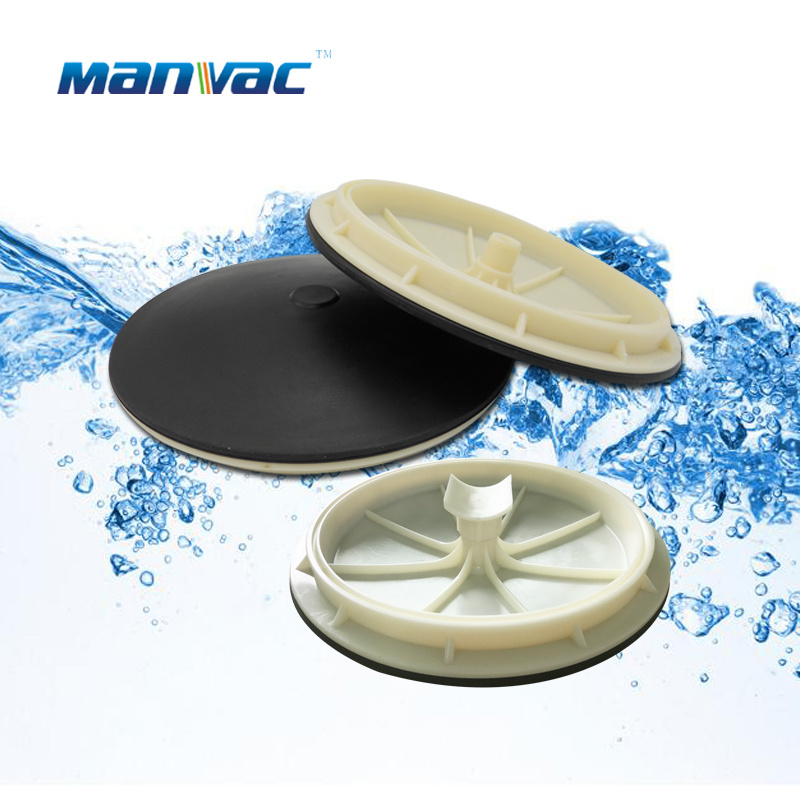

Industrial Aeration Fine Bubble Disc Diffuser for Wastewater Treatment
High oxygen Aerator Membrane Fine bubble Disc Diffuser features a unique split pattern and slit shapes, which can disperse air bubbles in an extremely fine and uniform pattern for high oxygen transfer efficiency.
A much highly effective and integrated check valve enables the aeration zones to be easily shut down for air-on/air-off applications.
A much highly effective and integrated check valve enables the aeration zones to be easily shut down for air-on/air-off applications.
| Model | 215mm | 260mm | 300mm |
| Size | 8 inch | 9 inch | 11.8 inch |
| Bubble Type | Fine bubble | Fine bubble | Fine bubble |
| MOC | EPDM/Silicon /PTFE membrane | EPDM/Silicon /PTFE membrane | EPDM/Silicon /PTFE membrane |
| Strengthened PP+GF(glass fiber) carrier plate | Strengthened PP+GF(glass fiber) carrier plate | Strengthened PP+GF(glass fiber) carrier plate | |
| Connector | 3/4 NPT | 3/4 NPT | 3/4 NPT |
| Bubble Size | 1-2mm | 1-2mm | 1-2mm |
| Flow Range | 1-6m³/h | 1-8m³/h | 1-10m3/h |
| Slit Quantity | 5000 | 8900 | 10000 |
| Service Area | 0.2-0.64m² | 0.25-1.0m² | 0.3-1.2m2 |
| Service Life | >5 year | >5 year | >5 year |
