Quick Details
-
Brand Name:
-
CIPPUS
-
Model Number:
-
CUF2000-M
-
Product Name:
-

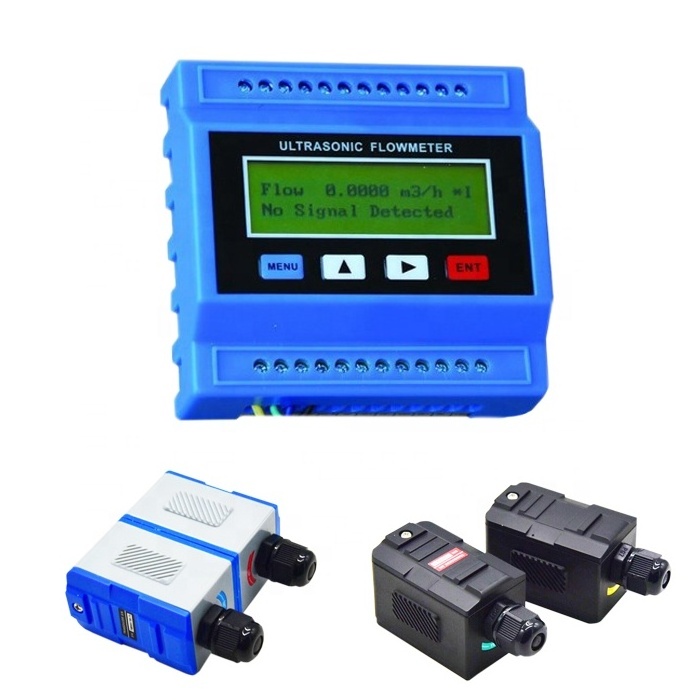

Fixed Mounted Clamp On Ultrasonic Flow Meter Ultrasonic Heat Meter
-
Accuracy:
-
±1%
-
Pipe Diameter:
-
DN15~6000mm
-
Medium:
-
water,sea water ,alcohol,Acid etc. transmit sound wave.
-
Pipe Material:
-
Steel, Stainless steel, Cast iron etc
-
Operating Temp.:
-
-30~160℃
-
Output:
-
4~20mA, OCT, Relay, RS485, GPRS
-
Power Supply:
-
DC8~36V or AC85~264V
-
Protection Grade:
-
Main unit:IP67; sensor:IP68
-
Principle:
-
Transit- time ultrasonic flowmeter
Quick Details
-
Type:
-
Variable Area Water Flowmeters
-
Warranty:
-
12 Months
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
CIPPUS
-
Model Number:
-
CUF2000-M
-
Product Name:
-
Fixed Mounted Clamp On Ultrasonic Flow Meter Ultrasonic Heat Meter
-
Accuracy:
-
±1%
-
Pipe Diameter:
-
DN15~6000mm
-
Medium:
-
water,sea water ,alcohol,Acid etc. transmit sound wave.
-
Pipe Material:
-
Steel, Stainless steel, Cast iron etc
-
Operating Temp.:
-
-30~160℃
-
Output:
-
4~20mA, OCT, Relay, RS485, GPRS
-
Power Supply:
-
DC8~36V or AC85~264V
-
Protection Grade:
-
Main unit:IP67; sensor:IP68
-
Principle:
-
Transit- time ultrasonic flowmeter
Products Description
Product Paramenters
|
Item
|
CUF2000-M Fixed Mounted Clamp On Ultrasonic Flow Meter Heat Meter
|
|
|
|
Convertor
|
Principle
|
Transit-time measurement principle
|
|
|
|
Accuracy
|
±1%
|
|
|
|
Display
|
2*20 character LCD display with backlight
Language:Support Chinese, English, Italy etc. |
|
|
|
Signal Input
|
3 way 4~20mA input, accuracy 0. 1%, acquisition signal such as temperature, press and liquid level;
Connect the temperature transducer Pt100, can finish the heat/energy measurement |
|
|
|
Signal Output
|
1 way 4~20mA output, electric resistance 0~1K, accuracy0.1%
1 way OCT pulse output (Pulse width~1000ms, default is 200ms) 1 way replay output |
|
|
|
Data Interface
|
Insulate RS485 serial interface, upgrade the flowmeter software by computer, support the MODBUS
|
|
|
Medium
|
Type of Liquid
|
Single liquid that can conduct sound wave,such as water(hot water, chilled water, city water, sea water, waste water etc.
Sewage with small particle content:oil (crude oil, lubricating oil, diesel oil, fuel oil, ultra-pure liquids, etc.) |
|
|
|
Temperature
|
-30℃~160℃
|
|
|
|
Turbidity
|
No more than 10000ppm and less bubble
|
|
|
|
Flowrate
|
0~±7m/s
|
|
|
Working Environment
|
Temperature
|
Convertor:~20-60℃; Flow Transducer:~30-160 ℃
|
|
|
|
Humidity
|
Convertor:85% RH;
Flow Transducer: can measure under water, water depth≤2m (transducer sealed glue) |
|
|
Pipe Material
|
Steel, Stainless Steel, cast iron, copper, PVC , Aluminum etc.
|
|
|
|
Pipe Diameter
|
DN15-DN6000mm
|
|
|
|
Straight Pipe
|
Transducer installation should be satisfied: upstream10D, downstream 5D, 30D from the pump
|
|
|
|
Power Supply
|
DC8-36V; AC85-264V;(optional)
|
|
|
|
Power Consumption
|
1.5W
|
|
|
|
Velocity
|
-12m/s~12m/s
|
|
|
|
Protection Class
|
Main Unit: IP67; Sensor:IP68
|
|
|
|
Special Cable
|
Wisted-pair cable, generally, the length under 50 meters ; Select the RS485, transmission distance can over 1000m
|
|
|
