Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
China
-
Brand Name:
-
Greensky
-
Model Number:
-
GS2IK6GU~370GN/NMRV030~50
-
Voltage:
-
110v, 220v, 230v, 380v
Quick Details
-
Speed(RPM):
-
1250rpm - 1500rpm
-
Continuous Current(A):
-
1A
-
Efficiency:
-
IE 1
-
Warranty:
-
1 year
-
Place of Origin:
-
China
-
Brand Name:
-
Greensky
-
Model Number:
-
GS2IK6GU~370GN/NMRV030~50
-
Voltage:
-
110v, 220v, 230v, 380v

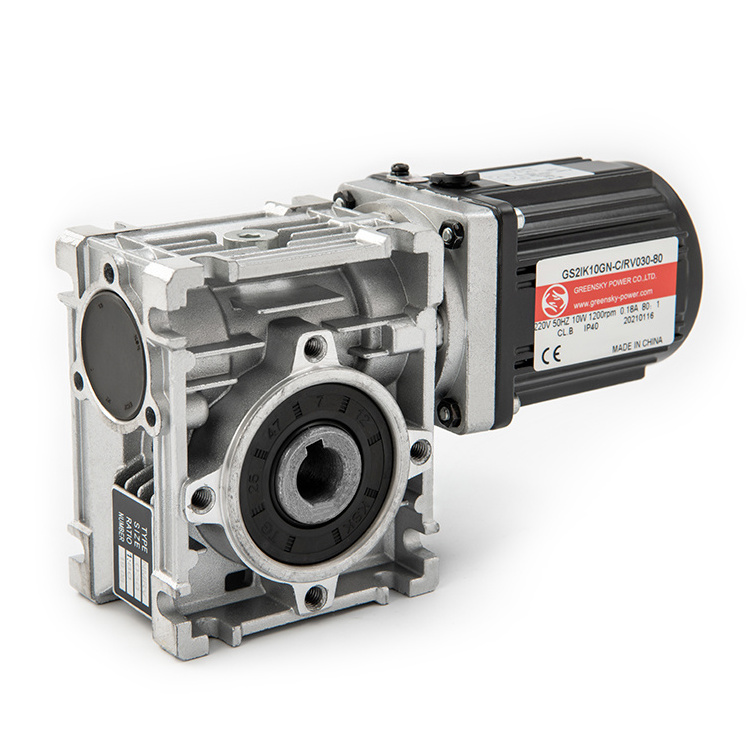

6W~40W 60W~370W AC gear motor with NMRV worm gearbox
Introduction
1. Light weight, compact dimension ;
2. Wide speed range and high torque;
3. Low noise and high efficiency;
4. Stable and safe, long lifetime;
5. Multi-structure, various assembling methods;
6. One-stop solution with speed controller, driver, encoder, brake, and transformer available.
Specifications
| Greensky Power Right Angle Gear AC Motor | |
| Motor type | Induction motor, brake motor, torque motor, speed adjustable motor, reversible motor |
| Frame size | 80mm, 90mm, 104mm |
| Motor Output speed | 1250rpm - 1500rpm |
| Gearbox Speed Ratio | 1:3 - 1: 100 |
| Output power |
80mm: 25W, 30W
90mm: 40W, 60W, 90W, 120W 104mm: 120W, 140W, 200W, 250W, 370W |
| Output shaft | 12mm ~ 50mm; round shaft, D-cut shaft, key-way shaft, hollow shaft |
| Voltage | 110v, 220v, 230v, 380v |
| Frequency | 50Hz, 60Hz |
Note:
FAQ
1 Q: What's your MOQ for gear motor and gearbox?
A: 1 unit is OK for different types.
2 Q: What about your warranty for your gear motor and gearbox?
A: One year.
3 Q: Do you provide OEM service with customer-logo?
A: Yes, we could do OEM orders.
4 Q: How about your payment terms ?
A: TT, western union and paypal. 100% payment in advanced for orders less $10,000. 50% deposit and balance before delivery for orders over $10,000.
5 Q: How about your packing ?
A: Carton, plywood case and pallet
6 Q: What information should be given, if I buy gear motor and gearbox from you ?
A: Rated power, gearbox ratio, input speed, mounting position. More details, better!
7 Q: How do you deliver the gear motor and gearbox?
A: We will compare and choose the most suitable ways of delivery by sea, air or express courier after customer's confirmation.
