Quick Details
-
Power:
-
0.75KW
-
Min. Lifting Height:
-
1.1M
-
Table Size:
-
11.8X2.1M
-
Overall Dimensions:
-
11.8X2.1X1.1M
-
Weight:
-
2400 kg
-
After-sales Service Provided:
-
Free spare parts
-
Application:
-
Loading unloading for warehouse, food factory
-
Main Material:
-
High-duty Steel Structure with steel mesh plate
-
Type:
-
Loading dock ramps
-
Tire:
-
2 piece solid tires
-
Usage:
-
a ramp between ground and container truck
-
Color:
-
blue / black
-
Capacity:
-
8-20 tons
-
Control:
-
Manuall or electric
-
Certification:
-
CE
Quick Details
-
Warranty:
-
2 years
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SKYSTAIR
-
Power:
-
0.75KW
-
Min. Lifting Height:
-
1.1M
-
Table Size:
-
11.8X2.1M
-
Overall Dimensions:
-
11.8X2.1X1.1M
-
Weight:
-
2400 kg
-
After-sales Service Provided:
-
Free spare parts
-
Application:
-
Loading unloading for warehouse, food factory
-
Main Material:
-
High-duty Steel Structure with steel mesh plate
-
Type:
-
Loading dock ramps
-
Tire:
-
2 piece solid tires
-
Usage:
-
a ramp between ground and container truck
-
Color:
-
blue / black
-
Capacity:
-
8-20 tons
-
Control:
-
Manuall or electric
-
Certification:
-
CE

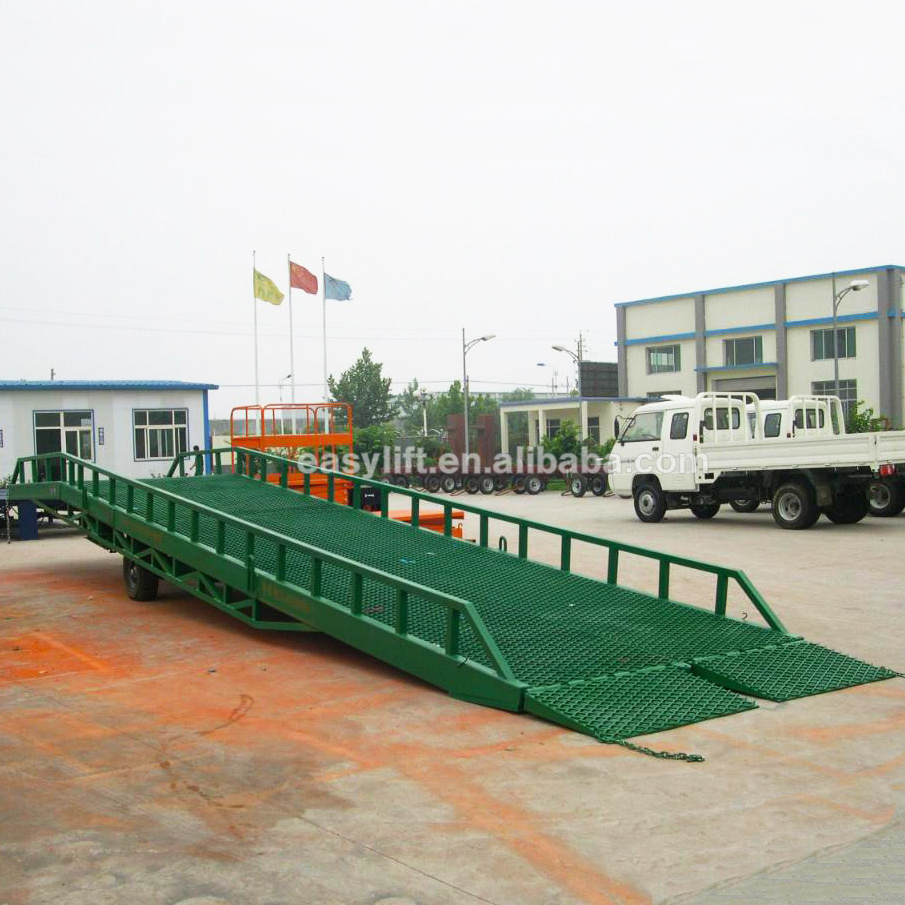

The container loading ramp is used together with forklift truck for loading and unloading the cargos.
Advantages
- The ramp using the hydraulic pump as lifting power, and no need electric power source, can easily adjust the height by hand-cranked.
- Adopting anti-slip checkered steel plate to guarantee good anti-slip performance of the platform,
- We use solid tyres instead of the pneumatic tyres which will be more safety and easy to control during operation, it will extend the tyres and the ramps service life.
- Adopting imported sealing member to guarantee good sealing performance of the hydraulic system.
|
Model |
Load capacity(t) |
Luffing range(m) |
Length(m) |
Width(m) |
Wheel tread (m) |
Max height(m) |
|
YDQ-8 |
8 |
0.9 |
11.8 |
2.12 |
1.5 |
1.8 |
|
YDQ-10 |
10 |
0.9 |
11.8 |
2.12 |
1.5 |
1.8 |
|
YDQ-12 |
12 |
0.9 |
11.8 |
2.12 |
1.5 |
1.8 |
