Quick Details
-
Brand Name:
-
OEM
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
Variable
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
Name:
-
SHREDDER MACHINE
-
Type:
-
double shaft our shaft
-
Application:
-
Recycled Industry
-
Keyword:
-
shredder machine
-
Color:
-
any color
-
Usage:
-
Waste Plastic /steel/wooden Shredding
-
Blades material:
-
9CrSi/D2/SKD-11/6crw2si/H13
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Max.Production Capacity (kg/h):
-
15000
-
Place of Origin:
-
Anhui, China
-
Production Capacity (kg/h):
-
5000 - 15000 kg/h
-
Brand Name:
-
OEM
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
Variable
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
Name:
-
SHREDDER MACHINE
-
Type:
-
double shaft our shaft
-
Application:
-
Recycled Industry
-
Keyword:
-
shredder machine
-
Color:
-
any color
-
Usage:
-
Waste Plastic /steel/wooden Shredding
-
Blades material:
-
9CrSi/D2/SKD-11/6crw2si/H13
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
Marketing Type:
-
Ordinary Product

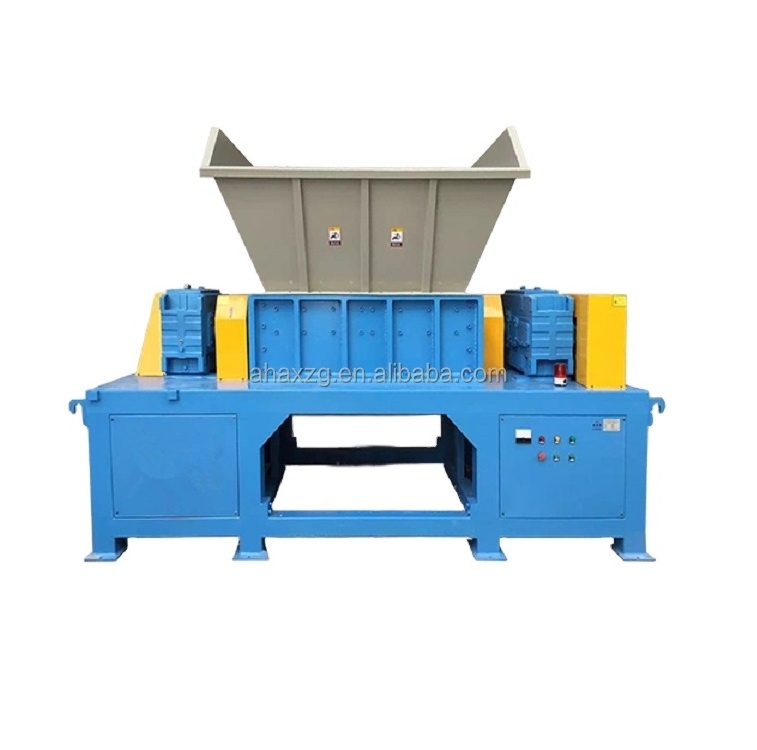

Instock wood pallet/waste iron/ Used Tire recycling shredder machine for sale
Product description
Our tire recycling line is suitable for recycling wide range of material. It is an idea machine for plastic, paper, wood,fiber,rubber, organic waste and a wide range of non metallic material. As for each customer requirement. such as the input size of the material, capacity and final output size etc. We can provide a best suitable solution for our customer. After being shredded by the machine, the output material can be used directly or go into next step of size reduction. With fuction of siemens PLC control system, it is possible to control start,stop, automatic reverse sensors to protect the machine against over loading and jamming.
Application of Plastic Single/double/four shaft tire recycling line:
1.Plastic film, Woven bag, PET bottle, Plastic Drum,Plastic pipe, Plastic board, Plastic Pallet Plastic Lump,Fiber, and high strength plastic Like (ABS,PC,PPS) high capacity tire recycling line
2.Wood including wood timber,Tree Root,Wood Pallet tire recycling line equipment
3. Cable and electrical wire shredding process
4. Paper: Newspaper and Carton box and books
5. Light metal:Aluminum Can,Aluminum Scraps
6. TV Shell, Washing machine shell. Regrigerator Body. Circuit Board.
7. Rubber
8. Texible product, Cloth or Fiber product
Key features of Garbage tire recycling line machine:
1. Safety Devices in line with european CE certification.
2. The hydraulic Ram pushes material against the rotor
3. Various Screen size for different material.
4. Various Rotating blade for processing different material. Blades are made from hardened DC53 steel. The Blades can be turned 4 times before it does not work.
5. Absorbs vibrations caused by the shredding of the material. this protects the machine and all parts in the machine.
6. Water cooled gearbox guards against overloading. Hardened teeth for the gearbox.
7. Protective bearing covers to avoid foreign contaminations entering the bearing house Also grease points to release oil at intervals to increase service life.
8. The Hydraulic ram pressure and timing can be adjusted to suit different material. The machine be fitted with wind cooled two speed pump.
Technical data
|
Model No |
Blade Diameter MM |
Blade thickness mm |
Blade qty |
motor power KW |
Main Shaft Speed rpm |
Shredder chamber MM |
Machine weight KG |
| AX-400 | 120 | 19 | 18 | 1.5 | 18-25 | 350*230 | 500 |
| AX-600 | 220 | 20 | 30 | 15 | 18-25 | 600*480 | 1800 |
| AX-800 | 300 | 25 | 32 | 22 | 18-25 | 800*600 | 4500 |
| AX-1000 | 400 | 40 | 25 | 44 | 18-25 | 1000*660 | 5000 |
| AX-1200 | 430 | 50 | 24 | 60 | 18-25 | 1200*800 | 7000 |
| AX-1500 | 530 | 50 | 30 | 110 | 18-25 | 1500*1000 | 10000 |
| AX-2000 | 600 | 60 | 33 | 150 | 20-28 | 2000*1200 | 15000 |
Blade picture material D2 SKD11 H13 Cr12Mov 6Crw2si 9CrSi
Apllication
