Quick Details
-
Model Number:
-
LFS-03
-
Max. Current:
-
20A
-
Max. Working Pressure:
-
12.5
-
COLOR:
-
BLACK
-
material:
-
plastic
-
pressure gape:
-
2.5-3bar
-
loading pressure:
-
6bar
-
unloading pressure:
-
8bar
-
connection way:
-
3 way
-
pipe dimension:
-
6mm
-
packing:
-
carton
-
hs code:
-
90328990.90
-
name:
-
air compressor pressure switch
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TOPLONG
-
Model Number:
-
LFS-03
-
Max. Current:
-
20A
-
Max. Working Pressure:
-
12.5
-
COLOR:
-
BLACK
-
material:
-
plastic
-
pressure gape:
-
2.5-3bar
-
loading pressure:
-
6bar
-
unloading pressure:
-
8bar
-
connection way:
-
3 way
-
pipe dimension:
-
6mm
-
packing:
-
carton
-
hs code:
-
90328990.90
-
name:
-
air compressor pressure switch
2016 top quality best price 4 way and single way air compressor pressure switch

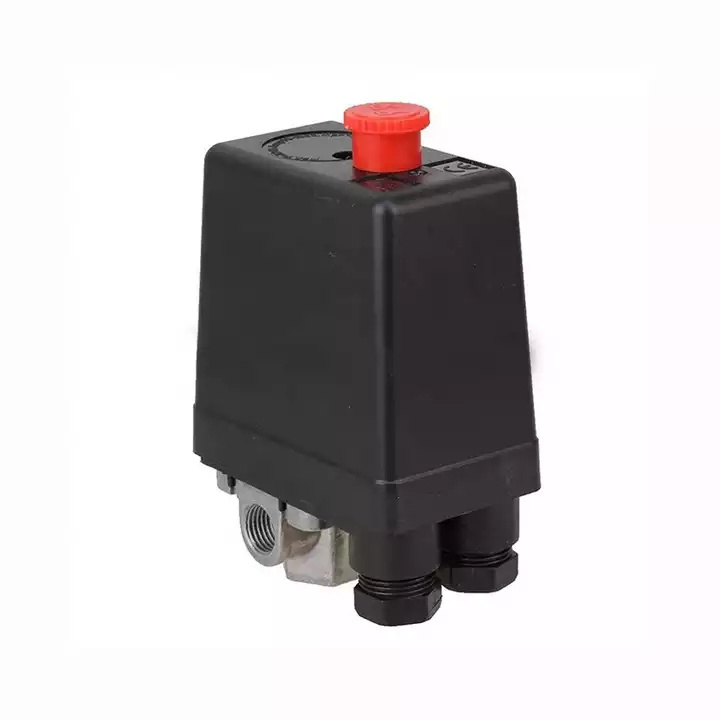

LF10-L pressure switch is a pressure-operated electric switch for use in regulating
the tank pressure between two preset values on electrically driven air compressors.
It is available with an unloader valve, which prevents compressors from starting
under load, and an on-off button for manual cut off the compressor. A four-port
manifold style is available which provides a means for easy mounting of
valves and gauges.
Specifications:
|
MODEL
|
LF10-L1H
|
LF10-L4H
|
|
Media
|
Air
|
Air
|
|
Operating Pressure Range
|
0.5~1.2Mpa
|
0.5~1.2Mpa
|
|
Differential Pressure
|
0.2Mpa
|
0.2Mpa
|
|
Factory Setting
|
0.6~0.8 Mpa
|
0.6~0.8 Mpa
|
|
Operating Temperature Range
|
-3055
|
-3055
|
|
Electrical Rating
|
240V, 20A, 50Hz
|
240V, 20A, 50Hz
|
|
Contact Arrangement
|
Normal On(NC)
|
Normal On(NC)
|
| Port Connection |
one port
|
four ports
|
|
Pipe Fittings
|
G1/4, G3/8 or 1/4, 3/8 NPT Female
|
G1/4, G3/8 or 1/4, 3/8 NPT Female
|
