Quick Details
-
Brand Name:
-
Labaodi
-
Model Number:
-
PQ1000
-
Product name:
-
PQ1000 common rail injector test bench
-
High pressure:
-
0-1800bar
-
Main Frequency(Hz):
-
50/60
-
Input System pressure(bar/psi):
-
0-10/0-145
-
System Build-up Pressure(bar/psi):
-
1-1800bar/0-26100 psi
-
Main Voltage:
-
220V
-
Color:
-
Customized Color
-
Applicable Models:
-
Diesel trucks
-
Application:
-
Diesel Fuel Injection System
-
Display:
-
Digital display
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Labaodi
-
Model Number:
-
PQ1000
-
Product name:
-
PQ1000 common rail injector test bench
-
High pressure:
-
0-1800bar
-
Main Frequency(Hz):
-
50/60
-
Input System pressure(bar/psi):
-
0-10/0-145
-
System Build-up Pressure(bar/psi):
-
1-1800bar/0-26100 psi
-
Main Voltage:
-
220V
-
Color:
-
Customized Color
-
Applicable Models:
-
Diesel trucks
-
Application:
-
Diesel Fuel Injection System
-
Display:
-
Digital display
Product Description
Auto Vehicle Repair Tools High Pressure PQ1000 Common Rail System Cr Diesel Fuel Diesel Injector Tester

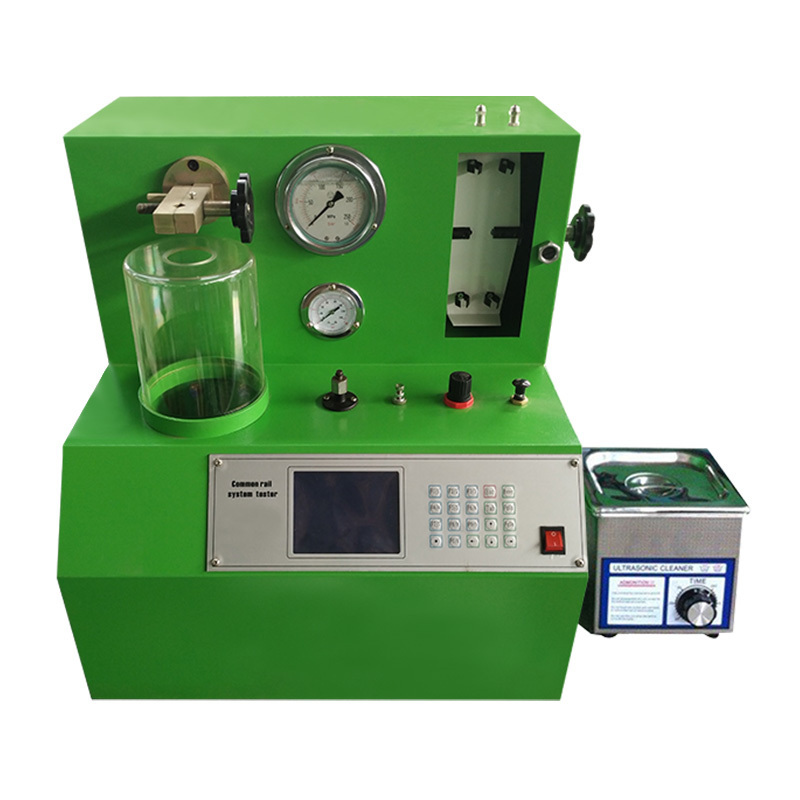

Common rail injector test bench PQ1000, which is used to test the common rail injector like the Bos'ch, Den'so, Delp'hi, Siem'ens injectors and Piezo injector. It also can clean the common rail injector by Ultrasonic Cleaning Instrument.
Details Images
CHARACTERISTIC
1.High pressure 0-1800bar
2. Check the injector starting pressure
3.Assessment of the injector spray fog quality
4. Inspeciton of the injector spray oil range
5.Check of the injector seal and angel
6.Check of the injector oil flow
2. Check the injector starting pressure
3.Assessment of the injector spray fog quality
4. Inspeciton of the injector spray oil range
5.Check of the injector seal and angel
6.Check of the injector oil flow
7.The machine has fog dissipation convulsion device to improve the work condition.
8.It has the two garde filter to ensure the cleanliness of test.
9.The parameter of common rail injector ( fuel spray counts, frquency, pulse width, pressure etc..)
can be set willfully.
10.it also can clean the common rail injector by Ultrasonic Cleaning Instrument.
8.It has the two garde filter to ensure the cleanliness of test.
9.The parameter of common rail injector ( fuel spray counts, frquency, pulse width, pressure etc..)
can be set willfully.
10.it also can clean the common rail injector by Ultrasonic Cleaning Instrument.
Specification
|
output power:
|
2.6KW
|
|
power voltage:
|
220V 1phase
|
|
motor speed:
|
0-3000RPM
|
|
flow measure range:
|
0-600ml/1000times
|
|
flow measurement accuracy:
|
0.1ml
|
|
temperature control range:
|
40+-2
|
|
Language
|
Support Multi-language(English,Spanish,Russian
|
System
A,Key definition ：
1.Press F1 select language .Press F3 into PID Settings screen.
2.Press Enter, into the main screen.
1.Press F1 select language .Press F3 into PID Settings screen.
2.Press Enter, into the main screen.
3.In the main picture.
F1,Choose injector brand.
F2,Select Settings injector pulse width
F3,Select set frequency of injectors.
F4,Select set number of fuel injector. (don't use)
F0,Select set of pump model
F7 Select set the oil pump pressure control mode (OPEN, CLOSE) open-loop control and closed-loop control.
F8,If F7 select OPEN, PWM value can be set up here, by changing the PWM value, to control the pressure oil pump.
F5,If choose CLOSE
F1,Choose injector brand.
F2,Select Settings injector pulse width
F3,Select set frequency of injectors.
F4,Select set number of fuel injector. (don't use)
F0,Select set of pump model
F7 Select set the oil pump pressure control mode (OPEN, CLOSE) open-loop control and closed-loop control.
F8,If F7 select OPEN, PWM value can be set up here, by changing the PWM value, to control the pressure oil pump.
F5,If choose CLOSE
F7, pump pressure can be set here, 0-250 mpa.
F9,After the completion of the parameter Settings, press F9 save parameters.
F6,st+art
F9,After the completion of the parameter Settings, press F9 save parameters.
F6,st+art
3
4,in PID screen：
Set the rail pressure sensor model
BOSCH:F5=0.44 F6=4.04
DENSO:F5=1.04 F6=3.65
B,Fuel injector test methods:
1，According to the actual pump model according to choose the F0 pump model.
2，Choose to test injector according to the formula one chooses injector brand.
3，Press F3 select injector pulse width
4，press F7choose CLOSE.
5，press F5Choose to test pressure
6, pressF6Start injector test.
C,Oil pump test methods:
1，pressF7choose OPEN.
2，press F0choose pump model
3，press F6start。
4，press PgUp和PgUn, up and dowm adjust PWM value，to the required pressure 。Whether pressure is stable.
Set the rail pressure sensor model
BOSCH:F5=0.44 F6=4.04
DENSO:F5=1.04 F6=3.65
B,Fuel injector test methods:
1，According to the actual pump model according to choose the F0 pump model.
2，Choose to test injector according to the formula one chooses injector brand.
3，Press F3 select injector pulse width
4，press F7choose CLOSE.
5，press F5Choose to test pressure
6, pressF6Start injector test.
C,Oil pump test methods:
1，pressF7choose OPEN.
2，press F0choose pump model
3，press F6start。
4，press PgUp和PgUn, up and dowm adjust PWM value，to the required pressure 。Whether pressure is stable.
