Quick Details
-
Brick size:
-
400*100*200 mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
CANMAX
-
Voltage:
-
220V/380V/440V
-
Dimension(L*W*H):
-
1200*1000*1700mm
-
Weight (KG):
-
650 kg
-
Name:
-
LG2-25 blocks making machine
-
Model:
-
LG2-25
-
Pressure:
-
16mpa
-
Foaming force:
-
22KN
-
Molding cycle:
-
25S
-
Weight:
-
650KG
-
Lifespan:
-
10 years
-
Color:
-
Optional
-
Certification:
-
CE/ ISO9001
Quick Details
-
Type:
-
Hollow Block Making Machine
-
Brick Raw Material:
-
concrete cement sand stone fly ash
-
Production Capacity (Pieces/8 hours):
-
2500 pcs/8hours
-
Brick size:
-
400*100*200 mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
CANMAX
-
Voltage:
-
220V/380V/440V
-
Dimension(L*W*H):
-
1200*1000*1700mm
-
Weight (KG):
-
650 kg
-
Name:
-
LG2-25 blocks making machine
-
Model:
-
LG2-25
-
Pressure:
-
16mpa
-
Foaming force:
-
22KN
-
Molding cycle:
-
25S
-
Weight:
-
650KG
-
Lifespan:
-
10 years
-
Color:
-
Optional
-
Certification:
-
CE/ ISO9001

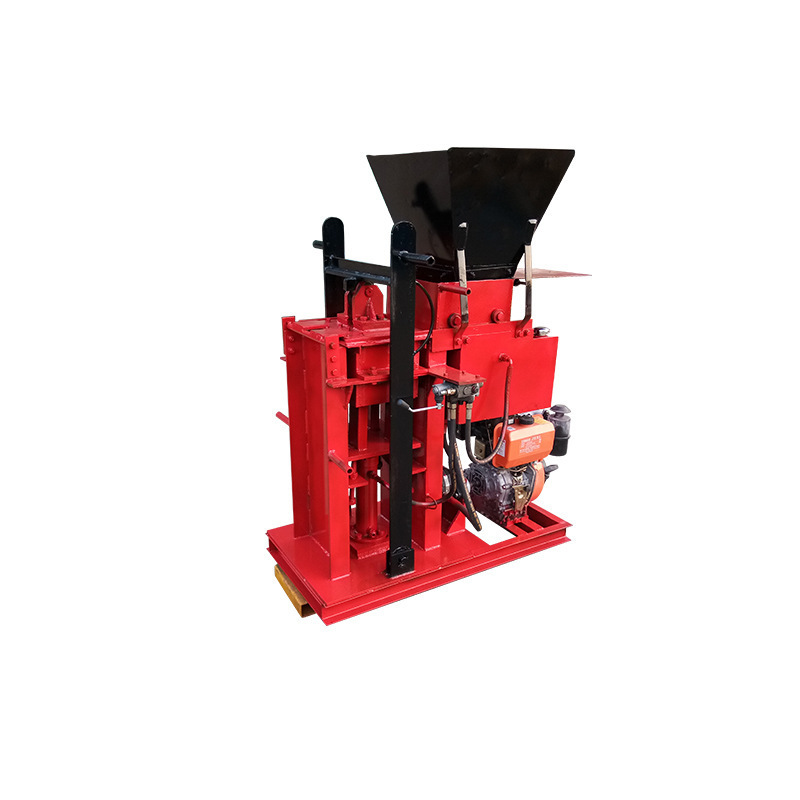

LG2-25 Semi-auto hydraulic block Machine is one kind of perfecting model for a starting or an upgrading project. With economical prie, compact and exquisite structure, simple and convenient operation and maintenance, small investment and quick results. It is suitable for small and medium-sized customers to invest in a simple production line.
Main features of the product:
*Easy operation and labor saving;
*Low investment and high benefit;
*Hydraulic Semi-auto system and Diesel or Electric;
*Imported hydraulic valves; hydraulic pressure with vibration force to form together;
*Not using fire to bake blocks and not building kiln to save the energy sources and fields;
*The molds are changeable according to customer's requirement;
*360°rotating mixing bars, more suitable for solid bricks and pavers;
| MODEL | LG2-25 |
| POWER (KW) | 3KW |
| DIMENSION (MM) | 1200*1000*1700mm |
| WEIGHT | 650KG |
| CYCLE TIME (s) | 25S(2pieces) |
| CAPACITY | 2300pieces per day(8hours) |
| VIBRATION FORCE (KN) | 22KN |
| HYDRAULIC PRESSURE (mpa) | 16mpa |
| OPERATION METHOD | Semi-auto Hydraulic |
| LG SERIES BLOCK MACHINES | ||||||
| For bigger or smaller plants please refer to the models below: | ||||||
| Model | Power | Size(mm) | Weight | Cycle time |
Capacity/day (250*125*100) |
Staff Suggested |
| LG2-40 | 2KW | 890*500*1300 | 200KG | 40s | 1,400 | 1-2 |
| LG2-25 | 3KW | 1200*1000*1700 | 650KG | 25s | 2,300 | 1-2 |
| LG2-20 | 4KW | 2950*1700*1600 | 2200KG | 20s | 2 ,8 00 | 1-2 |
| LG4-10 | 7.5KW | 2300*1250*2490 | 1700KG | 10s | 11,500 | 2-3 |
