Quick Details
-
Heating Power (kW):
-
150 kW
-
Place of Origin:
-
Guangdong,CHN
-
Brand Name:
-
KELI
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
15x3m
-
Weight (T):
-
25 T
-
Application:
-
Food & Beverage Factory
-
Usage:
-
Pla Vacuum and cutting Machine
-
Keyword:
-
Vacuum and cutting Machine for Biodegradable
-
Material:
-
PLA
-
Function:
-
Vacuum forming and cutting Machine
-
Color:
-
Customsized
-
Marketing Type:
-
New Product 2020
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Quick Details
-
Max.Forming Height(mm):
-
100 mm
-
Forming Width (mm):
-
1000 mm
-
Forming Length (mm):
-
1300 mm
-
Heating Power (kW):
-
150 kW
-
Place of Origin:
-
Guangdong,CHN
-
Brand Name:
-
KELI
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
15x3m
-
Weight (T):
-
25 T
-
Application:
-
Food & Beverage Factory
-
Usage:
-
Pla Vacuum and cutting Machine
-
Keyword:
-
Vacuum and cutting Machine for Biodegradable
-
Material:
-
PLA
-
Function:
-
Vacuum forming and cutting Machine
-
Color:
-
Customsized
-
Marketing Type:
-
New Product 2020
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Product Overview

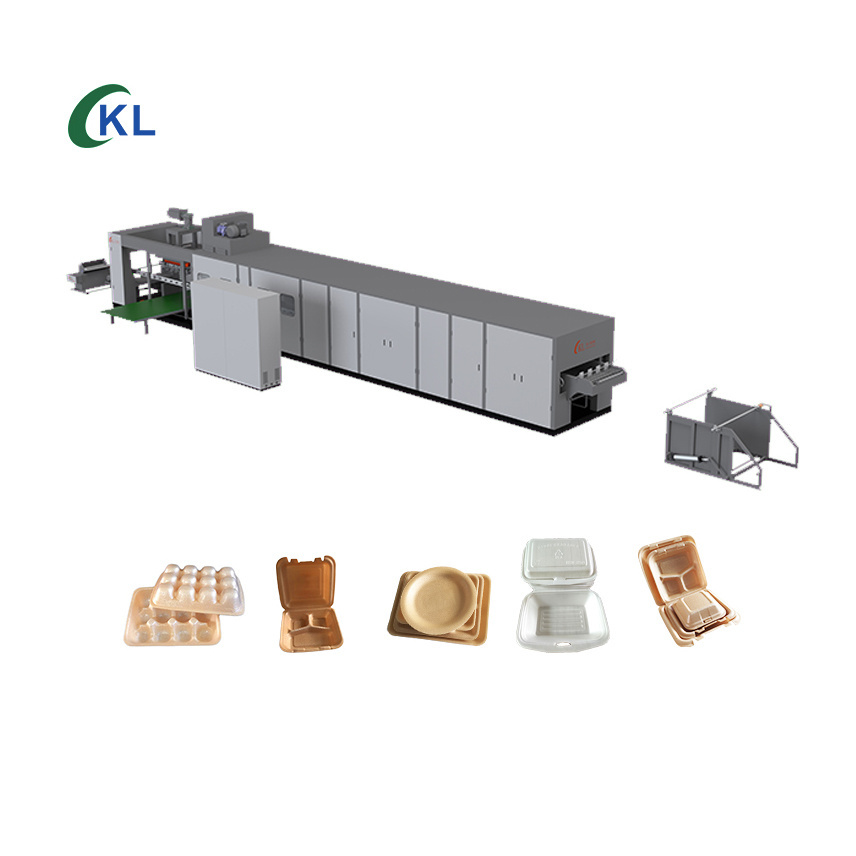

PLA Fully Automatic Vacuum Forming and Cutting Machine
The raw material of polylactic acid is degradable and environmentally friendly. It is also one of the most widely used biodegradable biomass materials. This unit is specially used for molding and blistering PLA foam products, mainly for food foam trays, disposable foam fast food boxes, cosmetics trays, electronic trays, etc.
Feature:
1. Integrated cutting, separating, stacking and sending out with a high degree of automation
2. Exclusive PLA sheet preheating crystallization oven design,balanced temperature control, high crystallization efficiency
3. Extra large effective molding area design, mold layout size: 1000mm*1300mm
4. Configure the mold oil temperature control system to realize in mold crystallization of PLA products
5. Configure the on-line crushing system of waste materials
PRODUCT SPECIFICATIONS
|
Model
|
Unit
|
PLAAVF600A&T-40
|
PLAAVF600B&T-60
|
PLAAVF1000B&T-80
|
|
Max. working area
|
MM
|
650*900
|
700*1200
|
1000*1300
|
|
Forming speed
|
S
|
4*10
|
4*10
|
4*10
|
|
Forming presssure
|
T
|
30
|
40
|
50
|
|
Capacity
|
KW
|
60
|
100
|
150
|
|
Weight of machine
|
T
|
13
|
18
|
25
|
|
Machine size
|
M
|
10*3
|
13*3
|
15*3
|
