Quick Details
-
Voltage:
-
380V
-
Power:
-
1.5KW
-
Dimension(L*W*H):
-
660x420x970mm
-
Name:
-
C41 series AIR HAMMER
-
Strike capability:
-
200
-
Function:
-
Forging metal
-
The number of strikes:
-
270
-
Motor speed:
-
1440r.p.m
-
COLOR:
-
Costomized
-
Hit number:
-
258
-
Max. round steel can be forged:
-
Dia. 22 mm
-
Max. square steel can be forged:
-
20x20 mm
-
Max.hit energy:
-
0.18KJ
-
After-sales Service Provided:
-
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
Weight:
-
1200KG
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
WADJAY
-
Machine Type:
-
Air Hammer
-
Voltage:
-
380V
-
Power:
-
1.5KW
-
Dimension(L*W*H):
-
660x420x970mm
-
Name:
-
C41 series AIR HAMMER
-
Strike capability:
-
200
-
Function:
-
Forging metal
-
The number of strikes:
-
270
-
Motor speed:
-
1440r.p.m
-
COLOR:
-
Costomized
-
Hit number:
-
258
-
Max. round steel can be forged:
-
Dia. 22 mm
-
Max. square steel can be forged:
-
20x20 mm
-
Max.hit energy:
-
0.18KJ
-
After-sales Service Provided:
-
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
Weight:
-
1200KG
-
Certification:
-
CE
Product Description
Products Description

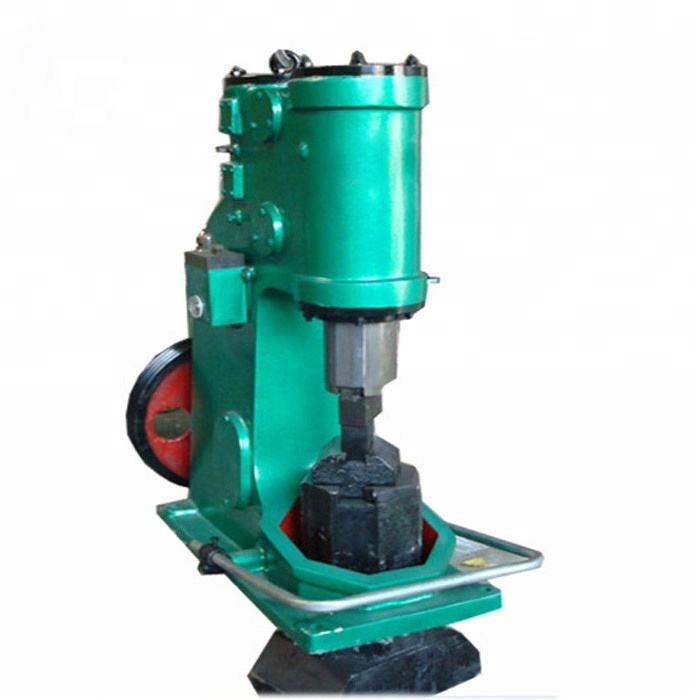

AIR HAMMER PRODUCT FEATURES:
The air hammer is easy operation ,flexible movement and convenient to transit ,
installation ,maintenance ,the type is widely used for various of free forging works ,
such as drawing out ,upsetting ,punching ,chiseling .forging welding ,bending and twisting .
It is also used for open die forging in bolster dies.
it is suitable for free forging works of all kinds of different shape parts ,
especially suitable for village township enterprise and self-employed forge small agriculture tools .
For example sickle ,horseshoes ,Spike ,hoe etc .
At the same time ,the industrial enterprise use the air hammer to forge the steel ball ,
scaffold and many other factories and mines ,construction supplies .
In addition the series air hammer is very commonly professional blacksmith's iron tools
that can install all kinds of mould to forge a variety iron flowers ,birds and other beautiful decoration.
|
Model
|
C41-16KG
|
C41-20KG
|
C41-25KG
|
C41-40KG
|
C41-55KG
|
|
Weight of failling parts(KG)
|
16
|
20
|
25
|
40
|
55
|
|
Max.hit energy(KJ)
|
0.18
|
0.22
|
0.27
|
0.53
|
0.7
|
|
Height of working area(mm)
|
180
|
200
|
240
|
245
|
265
|
|
Hit number(min)
|
258
|
255
|
250
|
245
|
230
|
|
Dimension of top and bottom die surface(LxW mm)
|
70x40
|
90x50
|
100x50
|
120x50
|
120x55
|
|
Max. square steel can be forged(Diameter mm)
|
20x20
|
30x30
|
40x40
|
52x52
|
52x52
|
|
Max. round steel can be forged(Diameter mm)
|
Φ 22
|
Φ35
|
Φ 45
|
Φ 68
|
Φ 68
|
|
Rate power(kw)
|
1.5
|
2.2
|
3/2.2
|
4
|
5.5
|
|
Speed of motor(r.p.m)
|
1440
|
1440
|
1440
|
1440
|
1440
|
|
Total weight(kg)
|
240
|
380
|
560
|
880
|
1700
|
|
Overall dimensions(L x W x H mm)
|
660x420x970
|
820x460x1110
|
980x510x1200
|
1080x600x1430
|
1320x670x1620
|
