Quick Details
-
Product name:
-
Total Station
-
Model:
-
TS07
-
Angel accuracy:
-
2''
-
Imaging:
-
Erect
-
Magnification:
-
30X
-
Display:
-
LCD Display
-
Weight:
-
15.5KG
-
Reflectorless:
-
500m
-
Working temperture:
-
-20℃~50℃
-
Application:
-
Surveying
Quick Details
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
OEM
-
Model Number:
-
TS07
-
Product name:
-
Total Station
-
Model:
-
TS07
-
Angel accuracy:
-
2''
-
Imaging:
-
Erect
-
Magnification:
-
30X
-
Display:
-
LCD Display
-
Weight:
-
15.5KG
-
Reflectorless:
-
500m
-
Working temperture:
-
-20℃~50℃
-
Application:
-
Surveying

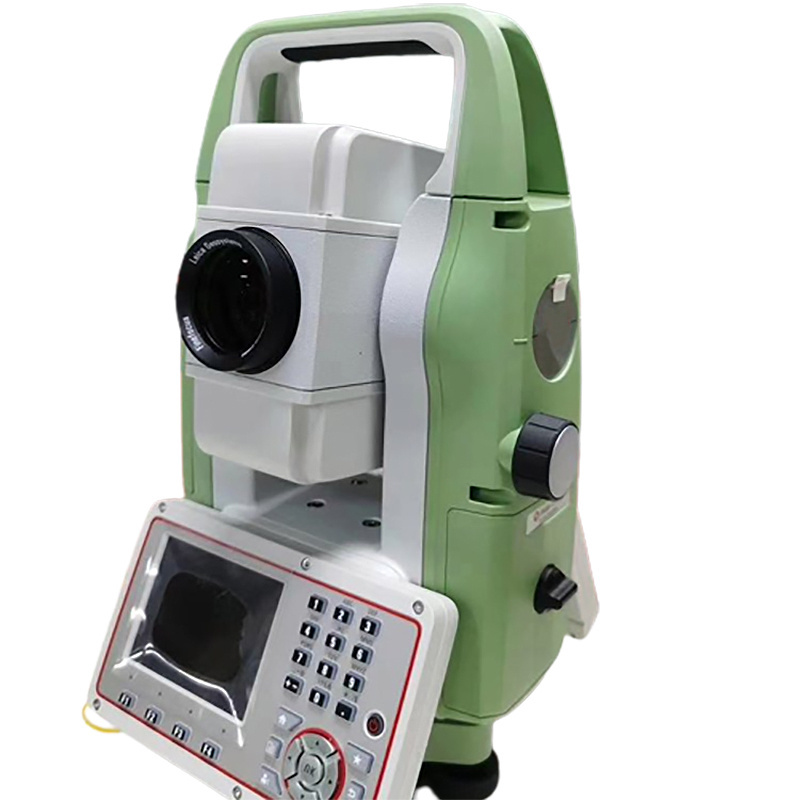

TS07 Reflectorless Total Station High Quality with Angle Accuracy 2'' Total Station
| Viva TS07 Total Station | |||
| ANGULAR MEASUREMENT | |||
| Accuracy 1 Hz and V | Absolute, continuous, diametrical |
1’’ (0.3 mgon), 2’’ (0.6 mgon), 3’’ (1 mgon),
5’’ (1.5 mgon) |
|
| DISTANCE MEASUREMENT | |||
| Range 2 |
Prism (GPR1, GPH1P) 3
Non-Prism / Any surface 4 |
1.5m to 3500m
R500: 1.5m to >500m, R1000: 1.5m to >1000m |
|
| Accuracy / Measurement time |
Single (prism) 2,5
Single (any surface) 2,4,5,6 |
1mm + 1.5ppm / typically 2.4s 2mm + 2ppm / typically 3s | |
| Laser dot size | At 50m | 8mm x 20mm | |
| Measurement technology | System analyser | Coaxial, visible red laser | |
| IMAGING | |||
| Overview camera |
Sensor
Field of view Frame rate |
5 megapixel CMOS sensor 19.4°
Up to 20 frames per second |
|
| AUTOMATIC AIMING - ATRplus | |||
| Target aiming range2 / Target locking range2 | Circular prism (GPR1, GPH1P) 360° prism (GRZ4, GRZ122) |
1500m / 1000m
1000m / 1000m |
|
| Accuracy 1,2 / Measurement time | ATRplus angle accuracy Hz, V |
1’’ (0.3 mgon), 2’’ (0.6 mgon), 3’’ (1 mgon),
5’’ (1.5 mgon) / typically 3-4s |
|
| POWERSEARCH | |||
| Range / Search time | 360° prism (GRZ4, GRZ122) | 300m / typically 5s | |
| GUIDE LIGHT (EGL) | |||
| Working range / Accuracy | 5–150m / typically 5cm @ 100m | ||
| GENERAL | |||
| Field software | Leica Captivate with apps | ||
| Display and keyboard | 5" (inch), WVGA, colour, touch, face I standard / face II optional | 37 keys, illumination | |
| Processor | TI OMAP4430 1GHz Dual-core ARM® Cortex™ A9 MPCore™ | Operating system – Windows EC7 | |
| Power management | Exchangeable Lithium-Ion battery | Operating time 5–8 h | |
| Data storage | Internal memory Memory card |
2 GB
SD card 1 GB or 8 GB |
|
| Interfaces | RS232, USB, Blue tooth®, WLAN | ||
| Weight | Total station including battery | 5.3 - 6kg | |
| Environmental specifications |
Working temperature range
Dust / Water (IEC 60529) / Humidity |
–20°C to +50°C
IP55 / 95%, non-condensing |
|
