Quick Details
-
Size:
-
10500/11000/12000x2550mmx3950mm(outside)/optioanl
-
Place of Origin:
-
Shandong, China
-
Application:
-
Shipping Dry Bulk Powder Cement
-
Pneumatic Tank Trailer Type:
-
Horizontal V type or W type
-
Off loading sys:
-
Peumatic fluidized sys
-
Diesel Engine:
-
Deutz/Huafeng/Weichai 4102/optinal
-
Air Compressor:
-
Bohai 12-15 m3 double-cylinder Optional
-
Working Pressure:
-
2.5 Bar
-
Discharging Pipe:
-
3 or 4 inch rubber hose, 7m standard
-
Unloading Speed:
-
1.5tons/min
-
Deliver Hieght:
-
15m
-
Residual Rate:
-
Less 0.3%
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
30T/40T/50T/60T/80T(30-70CBM)
-
Brand Name:
-
ALEEAO Trailer
-
Size:
-
10500/11000/12000x2550mmx3950mm(outside)/optioanl
-
Place of Origin:
-
Shandong, China
-
Application:
-
Shipping Dry Bulk Powder Cement
-
Pneumatic Tank Trailer Type:
-
Horizontal V type or W type
-
Off loading sys:
-
Peumatic fluidized sys
-
Diesel Engine:
-
Deutz/Huafeng/Weichai 4102/optinal
-
Air Compressor:
-
Bohai 12-15 m3 double-cylinder Optional
-
Working Pressure:
-
2.5 Bar
-
Discharging Pipe:
-
3 or 4 inch rubber hose, 7m standard
-
Unloading Speed:
-
1.5tons/min
-
Deliver Hieght:
-
15m
-
Residual Rate:
-
Less 0.3%

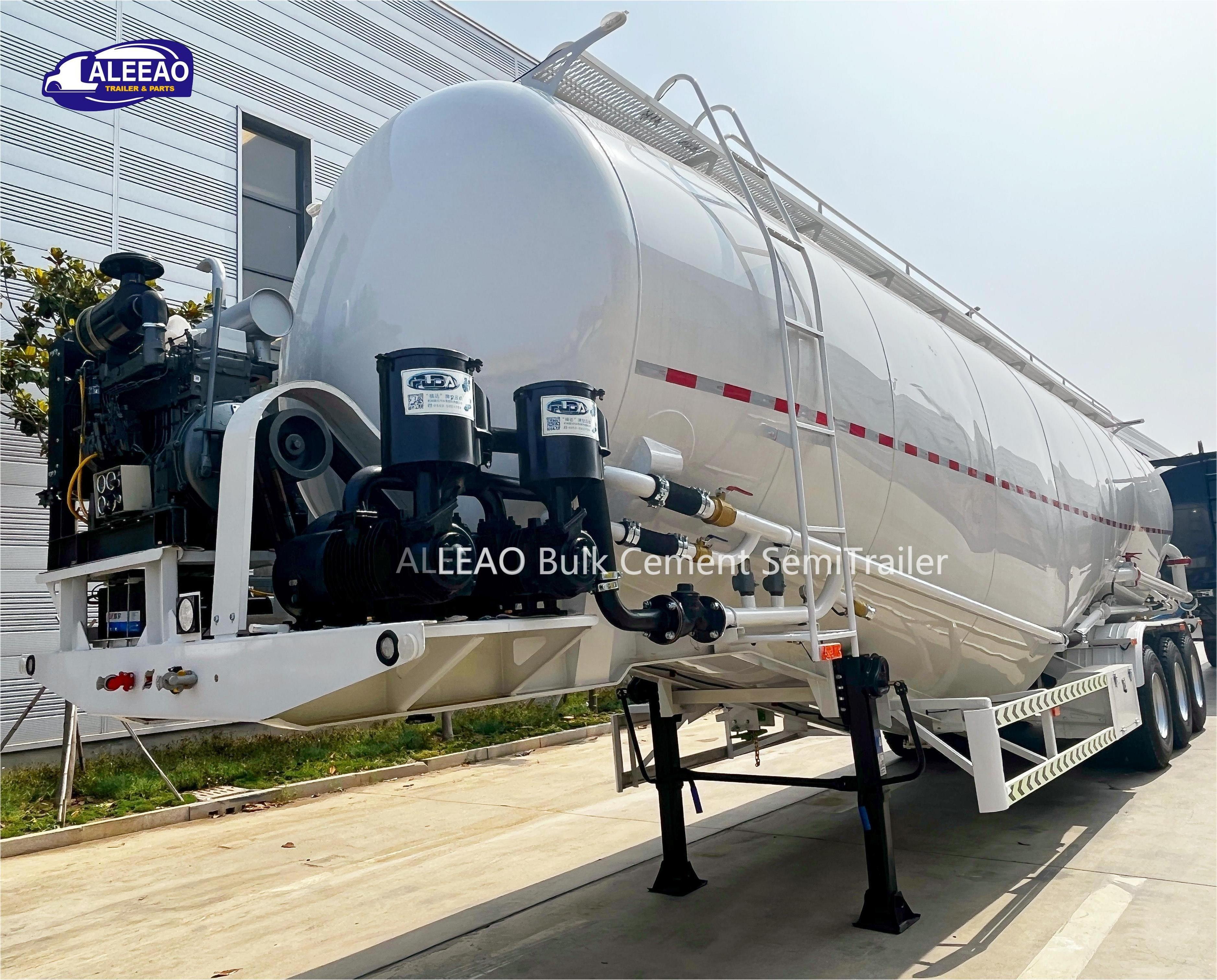

LEAO Bulk Cement Tanker Semi-trailer
Liangshan LEAO Machinery factory has more than
15 years
of production experience in the trailer industry
. Please believe that our professional technology and manufacturing experience can help your transportation be safer and more efficient. We can provide high quality products and competitive prices. Please contact me if necessary.
Specification
The main volume of the LEAO bulk cement trailer is 25/30/35/40/55/65 cubic meters. This trailer can load bulk cement, grain, sodium bicarbonate and any bulk powdered material. Loading capacity from 40 tons to 80 tons, V (banana) type, W type and dump type for your choice. Available in carbon steel, stainless steel and aluminum alloys, we also support custom designs, which help to get the most suitable vehicle.
Our Advantage:
1. Full load rate>98%
2. Residual rate <0.3%
3. Conveying height>15m suitable for most silos
4. Faster discharge >1.5ton/min to save fuel
|
Specification for LEAO Bulk Cement Semi Trailer
|
|
|
|
Bulker Body
|
|
|
|
Shape
|
V type or W type
|
|
|
Dimension
|
10500/11000/12000mm*2490mm*3990mm ( Exact size depends on the final design)
|
|
|
Payload
|
28T - 125tons
|
|
|
Volume
|
25cbm - 100cbm
|
|
|
Material
|
Carbon Steel/ Aluminum/ Stainless Steel
|
|
|
Tare weight
|
About 7500KGS-15000KGS
|
|
|
Compartments
|
1-3
|
|
|
Tanker body
|
6mm
|
|
|
Manhole Cover
|
3 - 5 pcs
Carbon steel or Aluminum500mm |
|
|
Air Compressor
|
Bohai 12 - 15 m3 double-cylinder or other brand
|
|
|
Diesel Engine
|
Deutz or Huafeng engine/Weichai/Tianhe 4102 4100 or other brand
|
|
|
Discharge Valve
|
3 or 4 inch disc valve (Material: Aluminum )
|
|
|
Discharging Pipe
|
3 or 4 inch rubber hose, 1pcs, 6m/each
|
|
|
Spry cooling system
|
2 Pcs Water tankers Pneumatic Power
|
|
|
Chassis
|
|
|
|
Main Beam
|
Q345 Carbon steel material
|
|
|
Tanker Body and End Plate
|
5mm or 6mm/ Q235 carbon steel
|
|
|
Axles
|
2 - 3 pcs 13 - 20tons BPW or Fuwa Axles
|
|
|
Suspenssion
|
Mechanical suspension/Germany or America type /Air Suspension
|
|
|
Leaf Spring
|
90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12
|
|
|
Landing Leg
|
JOST E100 or A400 Heavy duty type
|
|
|
Brake system
|
6pcs T30/30 Brake Chambers, WABCO relay valve
|
|
|
Tire
|
12 pcs 12R22.5 or 315/80R22.5 or 12.00R24 Triangle Brand
|
|
|
Rim
|
9.00-22.5/8.00-20/8.5-20 China Brand
|
|
|
King Pin
|
JOST 2" or 3.5 " Bolting Type
|
|
|
Painting
|
Complete Chassis sand blasting to clean rust,
1 coat of anticorrosive prime, 2 coats of final paint
|
|
|
Any parts fitted could according to clients request, contact us to get more.
|
|
|
Product Display
1. The bulk cement semi-trailer uses the engine power to drive the on-board air compressor through the power take-off, sends the compressed air into the tank, and liquefies the powdery material through the liquefaction device. Due to the pressure difference between the inside and outside of the tank, the powdery material is transported to the designated position along the discharge line along with the air.
2. External Weichai 4100 engine and Wuhu 10.00 vehicle air compressor unit ensure sufficient air pressure when the vehicle is unloading, and the exhaust speed can reach 1.6 tons per minute.
3. It is manufactured by domestic advanced technology, with novel design, strong and durable. The air bag type has large bearing capacity, fast unloading speed and small margin.
4. The LEAO integrated tank has the characteristics of high overall strength, good rigidity, good pressure bearing and good performance.
5. It has reasonable design, short discharge time, and discharge speed of 1.2-1.6 tons/minute, which improves the volumeutilization rate of the tank and reduces the residual ash rate by 0.2%.
6.The bulk cement semi-trailer tank adopts a double-cone inclined-horizontal structure, double-pipe intake, double-cylinder feeding, and its discharge speed and residual rate are in line with industry standards.
Details Images
Axle
BPW/FUWA/LEAO Axle optional.
Because oil tankers are special to transport oil, they need high quality to ensure safety. We usually choose Fuwa axles(Chinese best axles) . If you want , we can choose other axles.
The warranty period of Chinese brand/JOST landing gear is more than 5 years. The gearbox uses low temperature premium chassis oil and is rated for service from -30°C to 120°C.
Double Coin / LingLong/ Michelin/ Triangle/ Bridgestone and other famous brand for choice.Better Performance in wear resistance.
12 line fluidizing air pipes support cement trailer faster unloading and less residual powder
Cement tanker construction quality is the life of the whole tanker, LEAO Cement tanker support 5 years guarantee for tank body.
Experienced Automatic welding
Automatic Submerged arc welding, and Key point reinforces and purposeful welding avoid some parts easier lose welding according experience, support vehicle longer time working without repairing.
DEUTZ / WEICHAI Compressor engine
Stable, Support high attendance, Working all time never strike
Durable, 2-3 times Longer service life than poor quality engine
After-sale, Support 100+ courtiers, original guarantee.
