Quick Details
-
Place of Origin:
-
China
-
COLOUR:
-
White
-
Application:
-
Indoor
-
Power Supply:
-
AC 220V 50Hz
-
Power Consumption:
-
≤65W
-
Network Protocol:
-
SIP 2.0 (RFC 3261), FTP, HTTP, TCP/IP, UDP, ARP, ICMP, IGMP
-
Audio Codec:
-
MP3, PCM/L16, ADPCM
-
Maximum SPL:
-
101dB±3dB
-
S/N (Signal-to-Noise) Ratio:
-
≥80dB
-
Frequency Response:
-
35Hz-18kHz
-
Wired or wireless:
-
Wired
Quick Details
-
Type:
-
PAGA system
-
Model Number:
-
XC-9602B
-
Brand Name:
-
SPON
-
Place of Origin:
-
China
-
COLOUR:
-
White
-
Application:
-
Indoor
-
Power Supply:
-
AC 220V 50Hz
-
Power Consumption:
-
≤65W
-
Network Protocol:
-
SIP 2.0 (RFC 3261), FTP, HTTP, TCP/IP, UDP, ARP, ICMP, IGMP
-
Audio Codec:
-
MP3, PCM/L16, ADPCM
-
Maximum SPL:
-
101dB±3dB
-
S/N (Signal-to-Noise) Ratio:
-
≥80dB
-
Frequency Response:
-
35Hz-18kHz
-
Wired or wireless:
-
Wired
KEY FEATURES
●

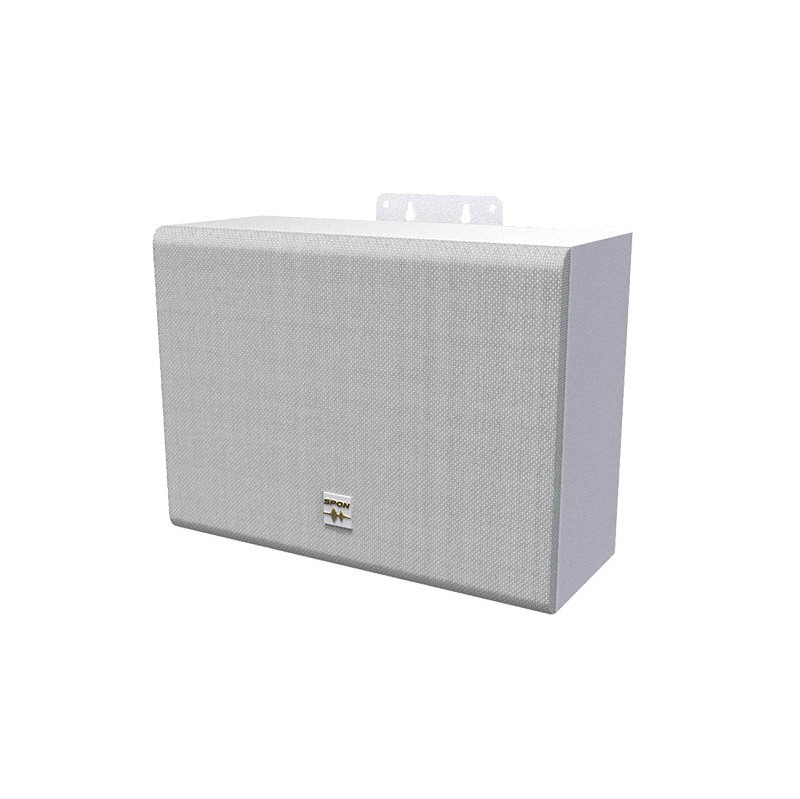

Bass reflex subwoofer design with 5” woofer and 3” tweeter, ensuring excellent sound reproduction of human voice.
●
Easy configuration via user-friendly web interface.
●
All-in-one speaker with built-in network audio decoder, class-D digital amplifier and DSP (digital signal processor), ensuring crystal clear voice intelligibility all the time.
●
Scheduled bell ringing tasks with custom MP3 audio files can be stored in the FTP server of the speaker, specific audio files can be played automatically at the specified time even when the speaker is offline.
●
Fully compliant 3rd party SIP endpoint, compatible with most mainstream on-premise and cloud/hosted VoIP telephone systems.
●
Work with VoIP telephone system for live voice announcements.
●
Work with SPON® XC-9000 audio management software for powerful features such as live and scheduled voice announcements, real-time and timed background music, emergency notification alerting, zone paging, etc.
●
Optional: USB 2.0 port on the back of the speaker can be connected to SEC-M1101A - LED Digital Wall Clock for synchronous time & text display.
●
Optional: Auxiliary speaker output (8Ω) on the back of the speaker can be connected to and drive NAC-301H - 30 Watt 8 Ohm Cabinet Speaker.
●
Optional: Built-in UHF wireless receiver module can be used together with NAC-5059C - Mini Lavalier Lapel UHF Wireless Microphone for local sound reinforcement in the classroom.
System Topology Diagram
Product Parameters
|
Power Supply:
|
AC 220V 50Hz
|
|
|
|
|||
|
Power Consumption:
|
≤65W
|
|
|
|
|||
|
Rated Power Output:
|
2×30W
|
|
|
|
|||
|
Network Protocol:
|
SIP 2.0 (RFC 3261), FTP, HTTP, TCP/IP, UDP, ARP, ICMP, IGMP
|
|
|
|
|||
|
Audio Codec:
|
MP3, PCM/L16, ADPCM
|
|
|
|
|||
|
Maximum SPL:
|
101dB±3dB
|
|
|
|
|||
|
S/N (Signal-to-Noise) Ratio:
|
≥80dB
|
|
|
|
|||
|
Frequency Response:
|
35Hz-18kHz
|
|
|
|
|||
|
Auxiliary Speaker Output:
|
8Ω (Low-Impedance)
|
|
|
|
|||
|
Interface:
|
2×RJ45 Ethernet Port, 1×USB 2.0, 2×Line Input (1/8” TS Jack), 1×Line Output (1/8” TS Jack), 1×Auxiliary Speaker Output (8Ω),
1×Power Input |
|
|
|
|||
|
Dimensions:
|
290×215×117mm
|
|
|
|
|||
|
Weight:
|
3.3kg
|
|
|
|
|||
|
Standard Accessories:
|
1×8.2 ft. 1/8” Male to Male Audio Cable, 1×Installation Manual
|
|
|
|
|||
|
Optional Accessories:
|
Fixed Power Cord (US/EU/UK/AU)
|
|
|
|
|||
Typical Application
