low starting wind speed, high wind energy utilization coefficient, and increased annual power generation.
- Product Details
- {{item.text}}
Quick Details
-
Product name:
-

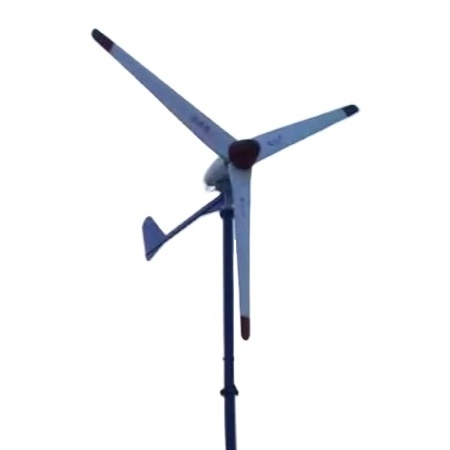

5KW wind and solar complementary power generation system
-
Number of blades:
-
3blades
-
Starting wind speed:
-
4m/s
-
Fan height:
-
6 meters
-
Material:
-
All glass fiber reinforced plastic material
-
Operation Method:
-
Inner Rotor
-
Color:
-
Customized Color
-
Weight:
-
13Kg-130kg
-
Rated power:
-
500W-20KW
-
Generator type:
-
Permanent Magnet Synchronous Generator
Quick Details
-
Place of Origin:
-
Shanxi, China
-
Brand Name:
-
Kunyuan
-
Rated Voltage:
-
220AC
-
Product name:
-
5KW wind and solar complementary power generation system
-
Number of blades:
-
3blades
-
Starting wind speed:
-
4m/s
-
Fan height:
-
6 meters
-
Material:
-
All glass fiber reinforced plastic material
-
Operation Method:
-
Inner Rotor
-
Color:
-
Customized Color
-
Weight:
-
13Kg-130kg
-
Rated power:
-
500W-20KW
-
Generator type:
-
Permanent Magnet Synchronous Generator
Product Overview
Horizontal axis wind turbine curve
Starting wind speed:
2m/s is faster than the traditional 3m/s
Unique side brake speed regulating mechanism, protect the motor, controller unloading
2m/s is faster than the traditional 3m/s
Unique side brake speed regulating mechanism, protect the motor, controller unloading
|
name
|
Technical level
|
Technical characteristics
|
|
lamina
|
Domestic leading
|
According to aerodynamic optimization design, the airfoil lift-drag ratio, speed ratio, speed, blade number, blade and slurry loss
are considered, and the wind energy utilization coefficient is greatly improved. |
|
Governing mechanism
|
Domestic advanced
|
Type D adopts the negative side of the tail rudder speed regulation mechanism, when the fan exceeds the limited speed, The tail
rudder can deflect, change the windward Angle of the wind energy, and play the role of automatic speed regulation, especially increasing the control ability of the speed when the wind is strong, and greatly improving the scope of the safe operation of the unit. The small wind turbine of this mechanism has the characteristics of simple and reliable, low cost, and is very popular with users at home and abroad. |
|
dynamo
|
Domestic advanced
|
Low speed motor, no slip ring, brush, can be directly coupled with wind wheel, using rare earth permanent magnet material, high
power generation efficiency, small size, compact structure, simple support mechanism. |
|
Rectifier inverter
|
Domestic advanced
|
In addition to the rectifier, inverter function, but also with overcharge protection, overdischarge protection, positive and
negative polarity connection and other automatic protection functions of the battery, extend the service life of the battery, reduce the user's cost of use, but also with short circuit and other automatic overload protection device, to protect the power device of the equipment from being damaged. |
|
Building block tower
|
Domestic advanced
|
Multi-section building block tower, easy to install and transport.
|
1· Generator 2 air wheel 3. Nut 4 washers 5 Cotter pin 6 Front air hood 7· Rear air hood 8· Bolt 9 nut 11 Tail pin 13 Blade 14 carbon brush guide wire 15 collector ring guide wire 16 Tail rudder 17 swivel body 18 screws 19· Wire clamp 20 limit bolt 22 Plane bearing 23 collector ring 24 carbon brush cover plate 25 Positioning screw 26· Cable 27· Cable Flange tape 28 tower (all limit bolts on the rotating body, positioning bolts do not loose; This unit has no handbrake mechanism)
Product details
low starting wind speed, high wind energy utilization coefficient, and increased annual power generation.
Using rare earth permanent magnet material, high power generation efficiency, small machine size, compact mechanism, simple
support structure.
support structure.
1, the use of NdFeb permanent magnet material, overload capacity.
2, closed transmission slip ring, cable is not wound.
3, with anti-corrosion, anti-acid rain, anti-saline-alkali characteristics.
4, micro fan, 2 wind power storage.
5, with wind 360 degree automatic adjustment, super risk control function
6, over charge over discharge protection, DC constant voltage charging.
7, the actual area is small, the land requirements are low.
8. The wind wheel not only has a variety of artistic shapes but also increases the vertical and wind blades.
9. Cost-effective, cheap and reasonable price.
weight, small space, easy to carry, is an ideal, new type of green energy. Life span is about 10 years. The warranty is 5 years
quality components, suitable for low temperature and other harsh working environment and has reliable performance and service life. (Customizable)
isolation, digital intelligent control. (Customizable)
Installation guide
1:Place the screws in the card slot and lay them flat, whole side up
2: Place the slot of one of the blades on the screw
3: Place the remaining 2 blade slots on the screws
4: Place the cover in the corresponding slot
5: Screw each screw on the nut
6: The installation is complete
PRODUCT SPECIFICATIONS
|
Wind turbine model and specifications
|
FD-500W
|
FD-1000W
|
FD-1500W
|
FD-2000W
|
FD-3000W
|
FD-5000W
|
FD-10000W
|
FD-20000W
|
|||||||
|
Start wind speed
|
4 meters/second (level 2 wind)
|
|
|
|
|
|
|
|
|||||||
|
Working wind speed
|
3m/s-18m/s (2-8) wind
|
|
|
|
|
|
|
|
|||||||
|
Rated wind speed
|
8 meters/second (level 4 wind)
|
|
|
|
|
|
|
|
|||||||
|
Parking wind speed
|
>8 meters/second (>8 levels of wind) automatic braking
|
|
|
|
|
|
|
|
|||||||
|
Rated speed of generator
|
500 rpm
|
|
|
|
|
|
|
|
|||||||
|
Generator rated power
|
500W
|
1000W
|
1500W
|
2000W
|
3000W
|
5000W
|
10000W
|
20000W
|
|||||||
|
Generator rated voltage
|
12V/24v
|
24v/48v
|
48V/96V
|
48V/96V
|
48V/96V0
|
96V/220V
|
220V-450V
|
220V-750V
|
|||||||
|
Winding method
|
X/Y
|
|
|
|
|
|
|
|
|||||||
|
Generator type
|
Neodymium iron boron permanent magnet rare earth three-phase AC synchronous high-efficiency generator
|
|
|
|
|
|
|
|
|||||||
|
Wind wheel diameter
|
1.3M
|
1.5M
|
1.5
|
2.5M
|
3M
|
3.8M
|
6M
|
10M
|
|||||||
|
blade
|
All glass fiber reinforced plastic material 3 blades
|
|
|
|
|
|
|
|
|||||||
|
Speed regulation method
|
Automatic side brake speed regulating mechanism
|
|
|
|
|
|
|
|
|||||||
|
Tower form
|
Building block steel pipe cable type or tapered pole tower type
|
|
|
|
|
|
|
|
|||||||
|
Fan height
|
Generally 4 meters-12 meters
|
|
|
|
|
|
|
|
|||||||
|
Output control system
|
NWP wind and solar complementary multi-function control inverter (see also manual for parameters)
|
|
|
|
|
|
|
|
|||||||
|
Power supply method
|
Stand-alone independent power supply or centralized and unified power supply for multiple machines: AC220V-380VAC/50HZ pure sine
wave, DC battery controlled output |
|
|
|
|
|
|
|
|||||||
|
Battery configuration specifications
|
According to the actual situation（80ah/12v,100ah/12V,50AH/12V.200AH/12V,250AH/12V）
|
|
|
|
|
|
|
|
|||||||
|
Generator weight
|
13KG
|
16KG
|
18KG
|
20KG
|
25KG
|
32KG
|
80KG
|
130KG
|
|||||||
|
Service life
|
Under normal circumstances, the average life span is about 20 years (>15 years), except for wearing parts.
|
|
|
|
|
|
|
|
|||||||
|
product name
|
Specification parameters
|
number
|
|
|||
|
Full power wind turbine (horizontal axis)
|
SP-1000W/48VAC
|
1set
|
|
|||
|
|
|
|
|
|||
|
|
|
|
|
|||
|
|
|
|
|
|||
|
|
|
|
|
|||
|
High performance wind turbine controller
|
FYKZQ-1000w/48vdc
|
1set
|
|
|||
|
|
|
|
|
|||
|
Monocrystalline silicon photovoltaic panel (including bracket)
|
GN-550w/360vdc
|
8set
|
|
|||
|
|
|
|
|
|||
|
|
|
|
|
|||
|
Photovoltaic controller
|
HFPC-4K-50A
|
1set
|
|
|||
|
|
|
|
|
|||
|
|
|
|
|
|||
|
|
|
|
|
|||
|
Fully enclosed valve controlled colloidal battery
|
LY-12V/200AH
|
4set
|
|
|||
|
|
|
|
|
|||
|
|
|
|
|
|||
|
Wind turbine tower
|
6 meters, 3 knots/2 meters, customized
|
1set
|
|
|||
|
|
|
|
|
|||
|
|
|
|
|
|||
|
|
|
|
|
|||
|
|
|
|
|
|||
|
|
|
|
|
|||
|
pure sine wave inverter
|
NB-5KW/220V,50HZ
|
1set
|
|
|||
|
|
|
|
|
|||
|
|
|
|
|
|||
|
For detailed configuration table, please contact customer service.
|
|
|
|
|||
