Quick Details
-
Brand Name:
-
NK
-
Dimension(L*W*H):
-
450*410*700MM
-
Product name:
-

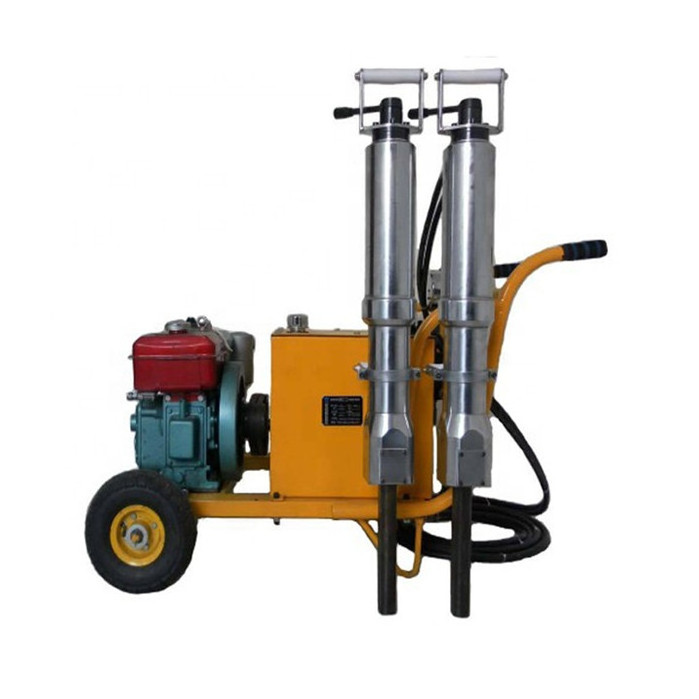

Hydraulic Rock Splitter
-
Working Medium:
-
68 Anti-wear
-
Work pressure:
-
63Mpa Rock Splitter
-
Split time:
-
10-15s
-
Wedge length:
-
250-450mm
-
Splite Width(mm):
-
50--60mm
-
Drilling Depth (mm):
-
500-900mm
-
Theoretical splitting force:
-
500t
-
Power supplier:
-
Hydraulic
-
Feature:
-
Fast Rock Splitter
Quick Details
-
Weight (KG):
-
200
-
Application:
-
splitter stone ,concrete, Stone, concrete
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
NK
-
Dimension(L*W*H):
-
450*410*700MM
-
Product name:
-
Hydraulic Rock Splitter
-
Working Medium:
-
68 Anti-wear
-
Work pressure:
-
63Mpa Rock Splitter
-
Split time:
-
10-15s
-
Wedge length:
-
250-450mm
-
Splite Width(mm):
-
50--60mm
-
Drilling Depth (mm):
-
500-900mm
-
Theoretical splitting force:
-
500t
-
Power supplier:
-
Hydraulic
-
Feature:
-
Fast Rock Splitter
Product Description
Rock splitter is our newly developed Product which is a powerful and extremely cost-effective alternative to other conventional demolition tools. Rock splitter can develop a very huge splitting force (Maximum 1000T) when it put into the pre-drill holes of rock or concrete, and crack it into pieces within several seconds.
Now it is widely used in mineral mining (cave mining), civil engineering construction and demolition.
It is also an indispensable tool in construction, river dredging, salvation etc. Our main Models of hydraulic
pump and cylinder are as follows.
Now it is widely used in mineral mining (cave mining), civil engineering construction and demolition.
It is also an indispensable tool in construction, river dredging, salvation etc. Our main Models of hydraulic
pump and cylinder are as follows.
|
SPECIFICATIONS FOR ROCK SPLITTER
|
|
|
|
|
|
|
||||||
|
Rock spliter Cylinder
|
|
|
|
|
|
|
||||||
|
Model
|
NK80-250
|
NK80-350
|
NK80-450
|
NK90-250
|
NK90-350
|
NK90-450
|
||||||
|
Piston diameter
|
80mm
|
80mm
|
80mm
|
90mm
|
90mm
|
90mm
|
||||||
|
Drilling diameter
|
Φ42mm
|
Φ45mm
|
Φ50mm
|
Φ42mm
|
Φ45mm
|
Φ50mm
|
||||||
|
Drilling depth
|
≧500mm
|
≧550mm
|
≧600mm
|
≧500mm
|
≧550mm
|
≧600mm
|
||||||
|
Cheese block length
|
250mm
|
350mm
|
450mm
|
250mm
|
350mm
|
450mm
|
||||||
|
Crack width
|
10～40mm
|
|
|
|
|
|
||||||
|
Splitting time
|
5～15s
|
|
|
|
|
|
||||||
|
Theory of separatist force
|
600T
|
600T
|
600T
|
800T
|
800T
|
800T
|
||||||
|
The actul split force
|
480T
|
|
|
|
|
|
||||||
|
Hydraulic rock splitter pump station
|
|
|
|
|
|
|
||||||
|
Engine
|
Electric engine
|
|
|
Diesel engine
|
|
|
||||||
|
Capacity of tank
|
15L
|
40L
|
88L
|
45L
|
65L
|
90L
|
||||||
|
Motor power
|
1.5KW
|
4KW
|
7.5KW
|
4HP
|
7HP
|
7.5HP
|
||||||
|
Working pressure(Mpa)
|
55-60
|
|
|
|
|
|
||||||
|
Working flow(L/min)
|
2—13
|
|
|
|
|
|
||||||
DIESEL ENGINE POWER
ELECTRIC POWER
GASOLINE POWER
Detailed Images
Related Products
Company Introduction
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Contact us for more details about price,packing,shipping and discount.
Worked as a mechanical engineer to serve you better than other
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Contact us for more details about price,packing,shipping and discount.
Worked as a mechanical engineer to serve you better than other
