Quick Details
-
wheelbase(mm)(mm):
-
2500
-
curb weight(kg):
-
1450
-
rated load(kg):
-
500
-
FRONT/Rear Wheel distance(mm):
-
FRONT 1165/REAR 1205
-
Tire specifications:
-
155R13C(LT)
-
Maximumspeed (km/h):
-
75
-
Energyconsumption(Wh/km):
-
82.3
-
Charging time0-100%(h):
-
7.5
-
Drive mode:
-
Rear drive
Quick Details
-
Brand Name:
-
xinxing
-
Place of Origin:
-
Chongqing, China
-
overall dimension(mm):
-
3700*1480*1715
-
wheelbase(mm)(mm):
-
2500
-
curb weight(kg):
-
1450
-
rated load(kg):
-
500
-
FRONT/Rear Wheel distance(mm):
-
FRONT 1165/REAR 1205
-
Tire specifications:
-
155R13C(LT)
-
Maximumspeed (km/h):
-
75
-
Energyconsumption(Wh/km):
-
82.3
-
Charging time0-100%(h):
-
7.5
-
Drive mode:
-
Rear drive
Product Description
Specification
|

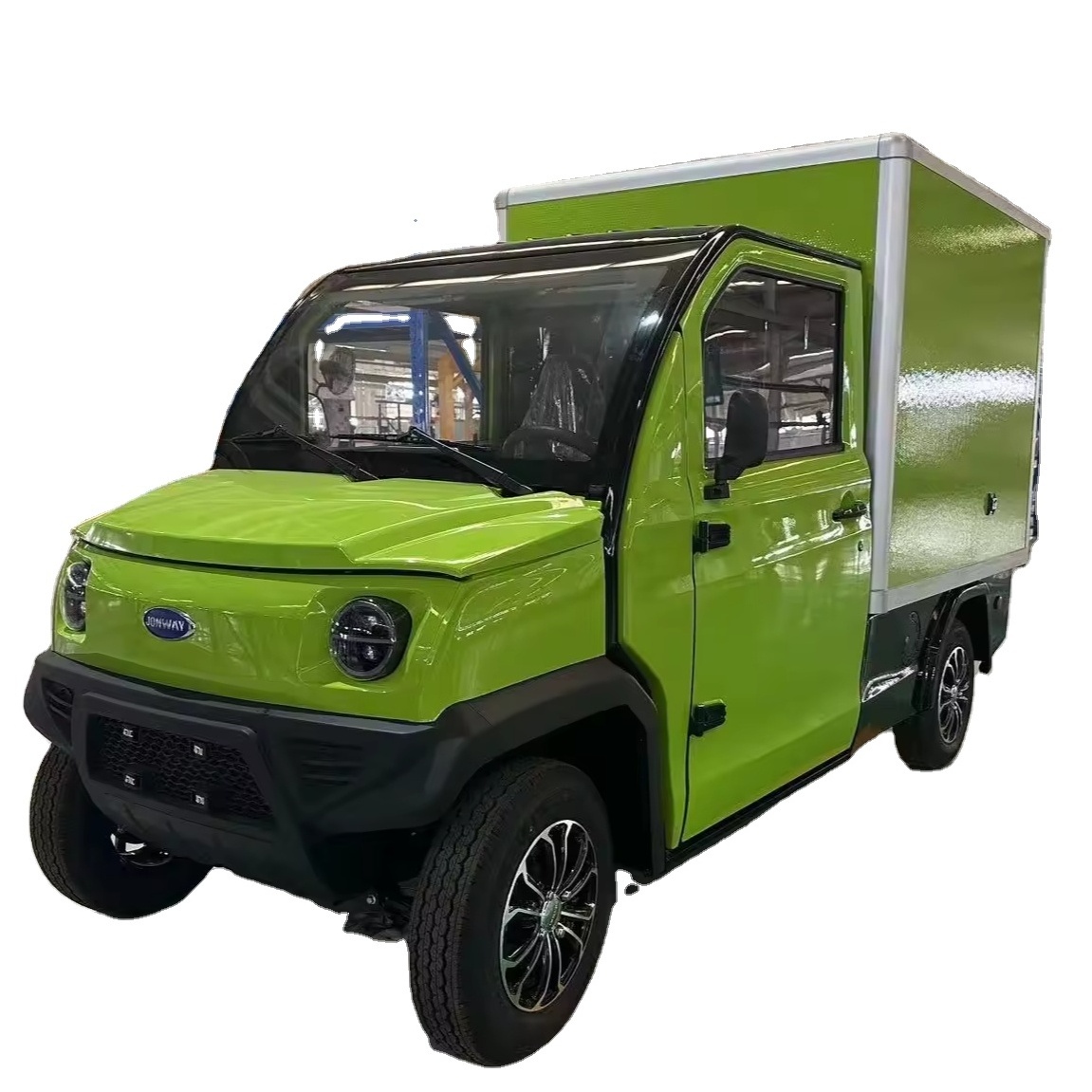

Mini Pickup Truck
|
|
|
|
|||
|
Vehicle type
|
Pick-up truck
|
|
|
|||
|
overall dimension（mm）
|
3700x 1480x 1715
|
|
|
|||
|
FRONT/Rear Wheel distance(mm)
|
FRONT 1165/REAR 1205
|
|
|
|||
|
wheelbase（mm)
|
2500
|
|
|
|||
|
Cargo payload (kg)
|
500（Long-range version）/ 600（Short duration version）
|
|
|
|||
|
APPROACH/DEPARTURE ANGLE
|
48/ 30
|
|
|
|||
|
GVW(kg)
|
1450
|
|
|
|||
|
max speed
|
75km/h
|
|
|
|||
|
Min turning radius (m)
|
5.5
|
|
|
|||
|
Min ground clearance (mm)
|
130
|
|
|
|||
|
Brake type
|
Front disc rear hub
|
|
|
|||
|
Tire specifications
|
155R13C(LT)
|
|
|
|||
|
Motor type
|
Permanent Magnet synchronous motor
|
|
|
|||
|
Cooling method
|
Air-cooled
|
|
|
|||
|
Max power (Kw)
|
20
|
|
|
|||
|
Max torque (Nm)
|
112
|
|
|
|||
|
Full Range (km)
|
130
|
|
|
|||
|
Rated capacity (Ah)
|
300/150
|
|
|
|||
|
Energyconsumption(Wh/km)
|
82.3
|
|
|
|||
|
Battery type
|
LFP
|
|
|
|||
|
Charging mode
|
ACslowcharge
|
|
|
|||
|
Charging time 20-80%(h)
|
4
|
|
|
|||
|
Charging time0-100%(h)
|
7.5
|
|
|
|||
|
Front suspension type
|
McPherson independent suspension
|
|
|
|||
|
Drive mode
|
Rear drive
|
|
|
|||
|
Type of seat belt
|
Three-point
|
|
|
|||
|
Power steering type
|
Electric
|
|
|
|||
