Quick Details
-
Brand:
-
Aotong
-
logo and color:
-
available
-
size:
-
can do according to customer's requirement
-
delivery time:
-
within 15 working days after receipt of the deposit
-
payment term:
-
TT, L/C
-
warranty:
-
12 months time
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
30480kg
-
Brand Name:
-
Aotong
-
Brand:
-
Aotong
-
logo and color:
-
available
-
size:
-
can do according to customer's requirement
-
delivery time:
-
within 15 working days after receipt of the deposit
-
payment term:
-
TT, L/C
-
warranty:
-
12 months time

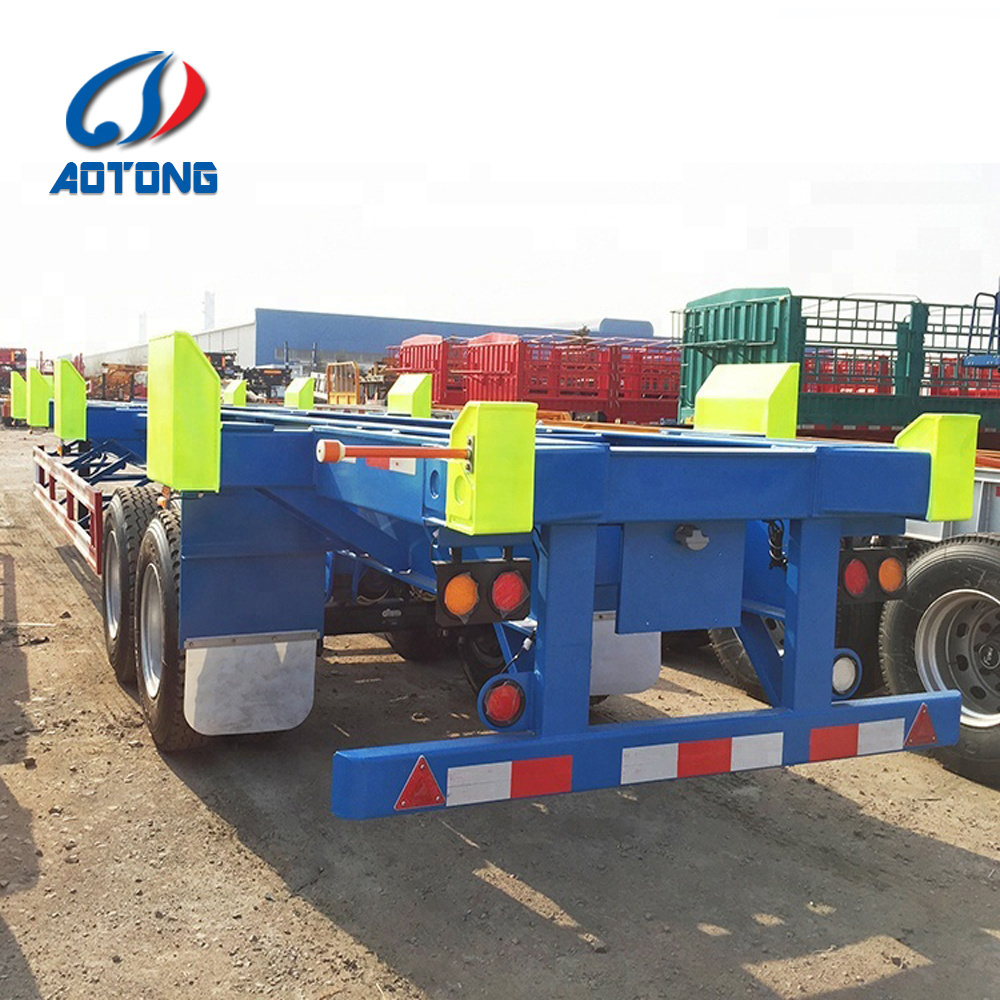

Port Used Container Chassis Trailer 20FT 40FT 45FT Bomb Carts Terminal trailer
20FT 40FT port Terminal Skeleton Semi Trailer Yard
1. 20 feet, 40 feet, 45 feet Skeleton type container carrier semi trailer with lower tare weight
2. 20 feet, 40 feet, 45 feet Plateform type container carrier semi trailer also can transport other dry cargo as Flatbed semi trailer, such as heavy stone, steel sheet, steel bar, bag cargo (rice, ferterlizer,salt, sugar,cement, chemical products), woods, timber, and pipe lines.
3. Terminal container carrier semi trailer is special for sea port or dry port , the special design for 20 feet, 40 feet, and 45 feet containers, quick load and unload device.
Product Description
|
Tare weight |
6100kg |
Payload |
40000 kg |
|||
|
Overall length |
12400mm*2500mm*1520mm |
|||||
|
Main Beam |
The hight of the beam is 500mm;upper plate is 14mm; down plate is 16mm;middle plate is 6mm.
|
|||||
|
Wheel base |
800-7900+1310+1310mm |
|||||
|
Axle |
Three units of FUWA (brand) 13 Ton axles. |
|||||
|
Suspension |
Common mechanical suspension 10pcs,press 4pcs(no groove) |
|||||
|
Side beam |
14#(only back) |
|||||
|
Tire type and quantity |
13 units of 12R22.5 double Coin brand |
|||||
|
Steel rim |
13 units of 8.00-20 |
|||||
|
Traction pin |
2" (50mm) |
|||||
|
Landing gear |
JOST 25ton |
|||||
|
Container twist locker |
12pcs (optional) container lock for 2×20ft 1×40ft container |
|||||
|
Spare wheel Bracket |
2 pieces |
|||||
|
Brake system |
Dual line braking system,non ABS |
|||||
|
Electrical system |
Voltage:24v; Receptacle:7ways(wire hardness) | |||||
