Heavy shearing folding copper automatic sheet cnc metal stainless steel plate hydraulic bending machine price

Heavy shearing folding copper automatic sheet cnc metal stainless steel plate hydraulic bending machine price

FOB Reference Price: Get Latest Price

≥1 Sets

US $4800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Throat Depth (mm):: 400 mm

Width of Working Table (mm):: 150 mm

Dimension:: 4200*1700*2520MM

Place of Origin:: Anhui, China

Brand Name:: SXZG

Year:: 2020

Weight (KG):: 10300

Motor Power (kw):: 11 kw

Raw Material:: Sheet / Plate Rolling

After-sales Service Provided:: Engineers available to service machinery overseas

Item:: hydraulic press brake

Power:: hydraulic

Color:: Optional

Voltage:: 220V/380V/440V

Quick Details

Machine Type:: Torsion Bar

Length of Working Table (mm):: 4000 mm

Slider Stroke (mm):: 350 mm

Throat Depth (mm):: 400 mm

Width of Working Table (mm):: 150 mm

Dimension:: 4200*1700*2520MM

Place of Origin:: Anhui, China

Brand Name:: SXZG

Year:: 2020

Weight (KG):: 10300

Motor Power (kw):: 11 kw

Raw Material:: Sheet / Plate Rolling

After-sales Service Provided:: Engineers available to service machinery overseas

Item:: hydraulic press brake

Power:: hydraulic

Color:: Optional

Voltage:: 220V/380V/440V

Product Overview

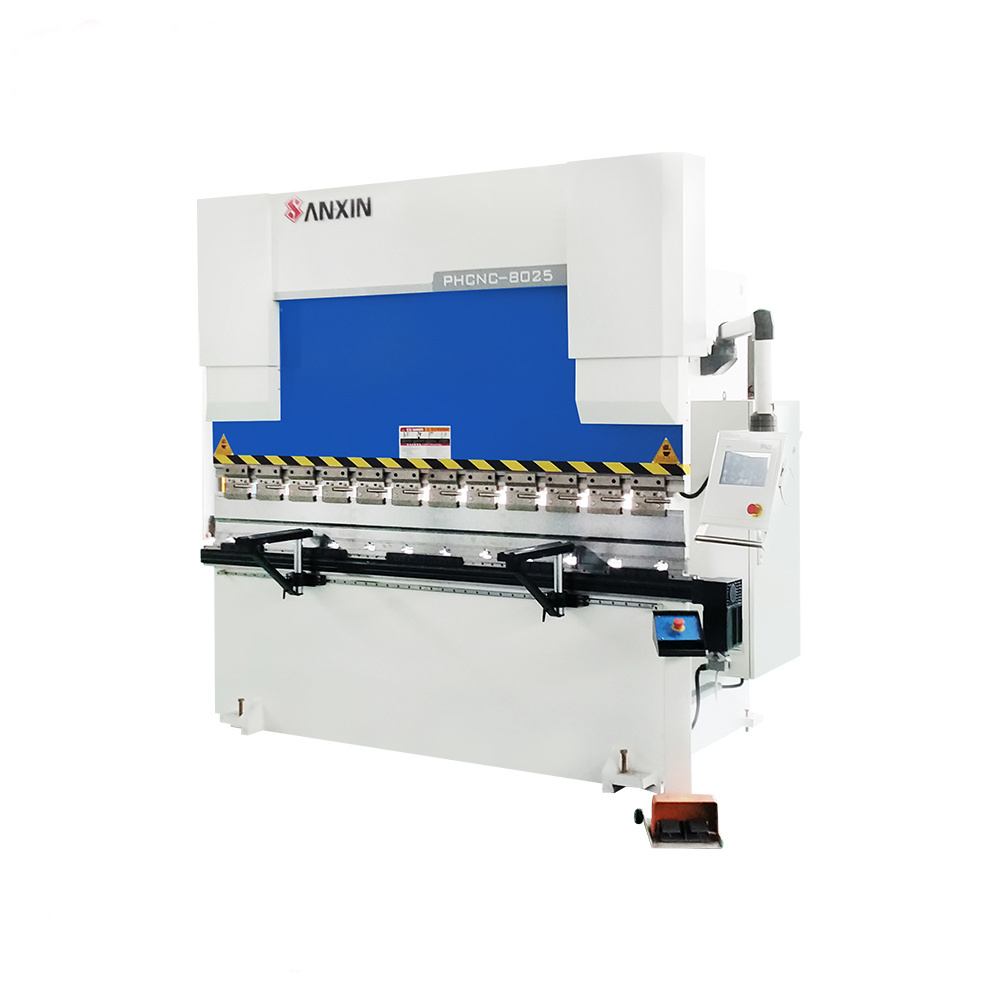

E21 NC Press Brake

Sanxin ® specilized in press brake and shearing machine more than 15 years, we hired domestic top enigineer to design press brake machine structure, use best spare parts to ensure machine stability. All Sanxin machine are heat treated and durable.

FEATURES AT A GLANCE

E21 SYSTEM CONFIGURATION

X Axis and Y axis control

Intelligent and Unilateral positioning

Workpiece counting function

Holding/decompressing time setting

40 programs stored, 25 steps per program

One key back-up/retore of parameters

English/Chinese

TP10S Controller

E300 controller

DA52S controller

PRODUCT SPECIFICATIONS

No	Model	Unit	WC67K-160T4000MM
1	Nomimal Force	KN	1600
2	Worktable Length	MM	4000
3	Poles Distance	MM	3100
4	Throat Depth	MM	400
5	Ram Strokes	MM	200
6	Max Open Height	MM	460
7	Power	KW	11
8	Dimension	MM	4200x1700x2550

PRODUCT CONFIGURATION

FRONT SIDE OF E21 PRESS BRAKE

BACKSIDE OF E21 PRESS BRAKE

GERMANY SIEMENS MOTOR

Guarantee the machine service life and improve the machine working stability

GERMANY BOSCH REXROTH VALVE Integrated hydraulic valve block, hydraulic transmission with high reliability, can effectively alleviate problems caused by leakage of hydraulic fluid

FRANCE SCHNEIDER ELECTRIC Backgauge use normal motor+Schinlin inverter to imporve positioning accuracy of X Axis.

TAIWAN HIWIN LINEAR GUIDE

Backgauge adopts double linear guide to achieve high stability and X Axis precision.

Toolings
