When we are talking about spare parts for a pellet mill, by and large, we are talking about die, roller and bearing.
Practically,that how often you will need to renew spare parts is depending on what raw material you are making pellets from.Apparently, compared with making straw pellets.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
FH
-
Voltage:
-
380V, 50HZ, 3-phase
-
Dimension(L*W*H):
-
1080x520x980mm
-
Motor Power (Kw):
-
11kw
-
Power (kW):
-
11kw
-
Weight (KG):
-
400 KG
-
Marketing Type:
-
Hot Product 2023
-
Name:
-
Biomass Wood Pellet Machine
-
Raw material:
-
Sawdust\straw\rice Husk\wood Waste
-
Application:
-
Making Wood Pellets
-
Usage:
-
Making Wood Pellets Biomass Pellets
-
Pellet size:
-
6mm-12mm
-
Keywords:
-
Pellet Making Plant
-
Motor:
-
Chinese Brand
-
Working Life for Rollers:
-
800-1000Hours
-
Working Life for Mould:
-
800-1200Hours
-
Color:
-
Customized Color
Quick Details
-
Pellet Diameter (mm):
-
6 - 8
-
Output (kg/h):
-
120 - 200 kg/h
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FH
-
Voltage:
-
380V, 50HZ, 3-phase
-
Dimension(L*W*H):
-
1080x520x980mm
-
Motor Power (Kw):
-
11kw
-
Power (kW):
-
11kw
-
Weight (KG):
-
400 KG
-
Marketing Type:
-
Hot Product 2023
-
Name:
-
Biomass Wood Pellet Machine
-
Raw material:
-
Sawdust\straw\rice Husk\wood Waste
-
Application:
-
Making Wood Pellets
-
Usage:
-
Making Wood Pellets Biomass Pellets
-
Pellet size:
-
6mm-12mm
-
Keywords:
-
Pellet Making Plant
-
Motor:
-
Chinese Brand
-
Working Life for Rollers:
-
800-1000Hours
-
Working Life for Mould:
-
800-1200Hours
-
Color:
-
Customized Color

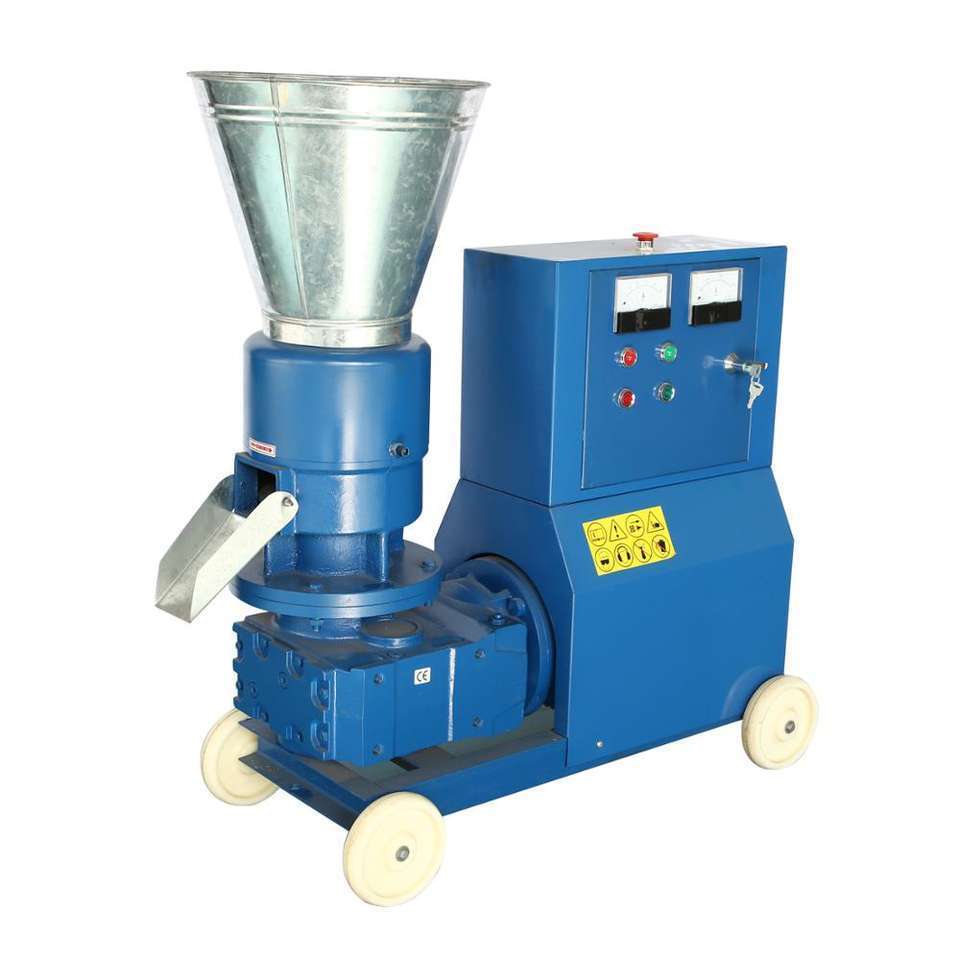

Roller Driven Wood Pellet Machine
This electric flat die pellet mill has roller-driven design which ensures more powerful compression on the materials, so it can process hardwood materials into biomass pellets more easily than other die-driven pellet mills. With self-lubrication system and a little large capacity 400-500 kg/h, it is an ideal choice for you to start a pellets business at home or workshop. High efficiency and low power consumption, our roller-driven pellet mill can make profits quickly for you. Roller Driven Flat Die Pellet Mill Working Principle. The main parts of flat die pellet mill are two rotating rollers and a stationary pellet die. When the machine works, the rotating roller will press material into the die hole of the stationary die. There are two highlights of pellet mill driven by rotating rollers. One is that this design can prolong pellet mill service life, the other is it make wood pellets more smooth and solid.
This electric flat die pellet mill has roller-driven design which ensures more powerful compression on the materials, so it can process hardwood materials into biomass pellets more easily than other die-driven pellet mills. With self-lubrication system and a little large capacity 400-500 kg/h, it is an ideal choice for you to start a pellets business at home or workshop. High efficiency and low power consumption, our roller-driven pellet mill can make profits quickly for you. Roller Driven Flat Die Pellet Mill Working Principle. The main parts of flat die pellet mill are two rotating rollers and a stationary pellet die. When the machine works, the rotating roller will press material into the die hole of the stationary die. There are two highlights of pellet mill driven by rotating rollers. One is that this design can prolong pellet mill service life, the other is it make wood pellets more smooth and solid.
|
Type
|
Powder (kw)
|
Capacity (kg/hour)
|
Size (mm)
|
Weight (kgs)
|
|
FH-R200B
|
7.5
|
80-120
|
1050x480x900
|
215/245
|
|
FH-R229B
|
11
|
120-200
|
1080x520x980
|
370/400
|
|
FH-R295B
|
15
|
180-250
|
1120x520x1100
|
410/470
|
|
FH-R300B
|
22
|
250-350
|
1350x560x1150
|
540/575
|
|
FH-R400B
|
30
|
350-450
|
1400x800x1350
|
890/940
|
|
FH-R420B
|
37
|
400-600
|
1630x620x1400
|
1220/1270
|
Roller Different Size Mould
High-Quality Alloy Steel
Electric Power
Plant Chemical
Plant Biomass workshop
Winery
Biomass Burner
Animal Farm
1.Advanced, perfect and flexible process design.
2.equipment selection for domestic advanced products, to ensure the advancement of technical equipment.
3. Driven by diesel engine,it will be very convenient to move to the outdoors and use in places without electricity.
2.equipment selection for domestic advanced products, to ensure the advancement of technical equipment.
3. Driven by diesel engine,it will be very convenient to move to the outdoors and use in places without electricity.
4.. The rollers and die are made from precise material of alloy metal, wear-resistant and not easy to break.
5.Main force bearing parts adopt high alloy wearable material,life of wear part is several times of similar prod-ucts.
6.Rational design,low consumption and high efficiency.
Our machines include: wood crushers, pellets coolers, drum dryers, and other machines for you to choose from.
Jinan F.H.International Co.,Ltd is located in Jinan city ,Shandong Province , China.We are a professional Biomass Pellet Machines
company with more than 10 years experience.we have advanced technology and scientific management, we have developed the high quality machines with reliable functions, reasonable design, energy saving and high efficiency low consumption.
company with more than 10 years experience.we have advanced technology and scientific management, we have developed the high quality machines with reliable functions, reasonable design, energy saving and high efficiency low consumption.
Our main products contain: Wood chipper ,Hammer Mill,Drum Dryer,Biomass pellet machine, Biomass briquetting machine ,Bimmass pellet ,Biomass burner, Biomass boiler ,Converyer ,Packing machine and all kinds of Biomass Pellet machine production line ,etc.we also have more experience and technology to design and install all kinds of complete production line .
We always provide the customers with the first-class service and high quality products, especially the high technology products.
Our philosophy is "to develop long-term and mutually beneficial cooperation with customers and to be a strong base of our
customers in China".We believe, F.H. Machine will be your most trusty and excellent partner in the future.
Our philosophy is "to develop long-term and mutually beneficial cooperation with customers and to be a strong base of our
customers in China".We believe, F.H. Machine will be your most trusty and excellent partner in the future.
