Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Hetai
-
Model Number:
-
42BLY01A-005AG62
-
Torque:
-
1.6
-
Product Name:
-

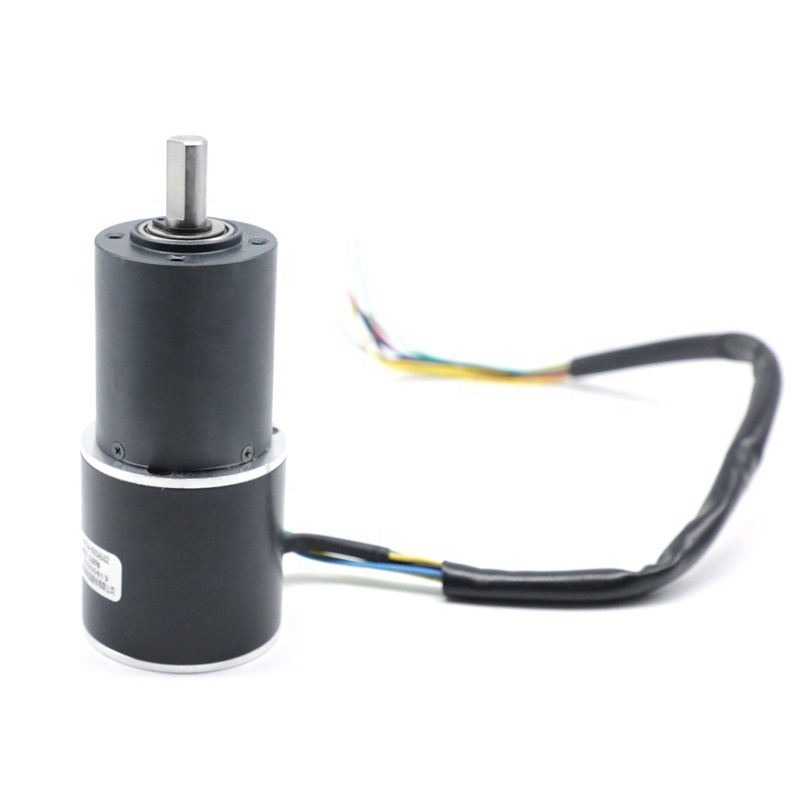

BLDC gearbox Motor
-
Dielectric Strength:
-
500V AC 1minute
-
Ambient Temperature:
-
-20℃-50℃
-
Max Radial load:
-
≤120N (10mm from front flange)
-
Shaft axial load:
-
≤80N
-
Reduction Ratio:
-
62:1
-
Gearbox Housing Material:
-
Metal
-
Bearing at output:
-
Ball bearing
-
Power:
-
11W
-
Voltage:
-
12V 24V 36V 48V 60V 72V DC
Quick Details
-
Speed(RPM):
-
56
-
Continuous Current(A):
-
0.25A
-
Efficiency:
-
IE 1
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Hetai
-
Model Number:
-
42BLY01A-005AG62
-
Torque:
-
1.6
-
Product Name:
-
BLDC gearbox Motor
-
Dielectric Strength:
-
500V AC 1minute
-
Ambient Temperature:
-
-20℃-50℃
-
Max Radial load:
-
≤120N (10mm from front flange)
-
Shaft axial load:
-
≤80N
-
Reduction Ratio:
-
62:1
-
Gearbox Housing Material:
-
Metal
-
Bearing at output:
-
Ball bearing
-
Power:
-
11W
-
Voltage:
-
12V 24V 36V 48V 60V 72V DC
Specification
Advantage of planetary gearbox motor
Planetary Gearbox Guarantees Flexible & Reliable Power Transmission System
These gearboxes provide a wide range of power and ratio, which makes it a perfect choice for most applications of many industries.
|
Model
|
36BL Brushless gearbox motor
|
|
Voltage （V）
|
24V
|
|
Rated Torque with gearbox （N.M）
|
0.3~2.5 N.m
|
|
SIze（mm）
|
36*36*100 mm
|
|
Model
|
42BL Brushless gearbox motor
|
|
Voltage （V）
|
24V
|
|
Rated Torque with gearbox （N.M）
|
1.0~8.0 N.m
|
|
SIze（mm）
|
42*42*74.4 mm
|
|
Model
|
57BL Brushless gearbox motor
|
|
Voltage （V）
|
24V
|
|
Rated Torque with gearbox （N.M）
|
2.0~16.0 N.m
|
|
SIze（mm）
|
57*57*105.3 mm
|
Please contact us for more speed & torque option.
Product Application
Our advantage
Hetai can offer：
Specialised/customised design and product
Good quality products
7/24 Service
When it comes to quality aspect, Hetai was qualified by ISO Certificate, CE and Rohs. The product quality has also been recognized by many customers. Hetai is also proud of its research and develop strength. With the support of professional laboratory and experienced technicians, Hetai gained 13 Utility Patents and high-tech enterprise Award as well as other awards during the years.
