Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Laien
-
Model Number:
-
ZDZW
-
Weight (KG):
-
12000
-
Power (kW):
-
45
-
Name:
-
wire fence welding machine
-
Mesh size:
-
50*50-300*300
-
welding width:
-
2500/3200mm
-
Product name:
-
Welded Wire Mesh Machine
-
Application:
-
Metal Mesh Welding
-
Feed wire systerm:
-
Feeding Automatic
-
Control system:
-
PLC+Touch Screen Automatic
-
Welding speed:
-
Max.80-100 Times/min
-
Welding type:
-
SCR Synchronization Control
-
Voltage:
-
220V/380V/415V/440V/customized
Quick Details
-
Wire Diameter (mm):
-
3 - 8 mm
-
Marketing Type:
-
New Product 2021
-
Production Capacity:
-
50 sets/ month
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Laien
-
Model Number:
-
ZDZW
-
Weight (KG):
-
12000
-
Power (kW):
-
45
-
Name:
-
wire fence welding machine
-
Mesh size:
-
50*50-300*300
-
welding width:
-
2500/3200mm
-
Product name:
-
Welded Wire Mesh Machine
-
Application:
-
Metal Mesh Welding
-
Feed wire systerm:
-
Feeding Automatic
-
Control system:
-
PLC+Touch Screen Automatic
-
Welding speed:
-
Max.80-100 Times/min
-
Welding type:
-
SCR Synchronization Control
-
Voltage:
-
220V/380V/415V/440V/customized

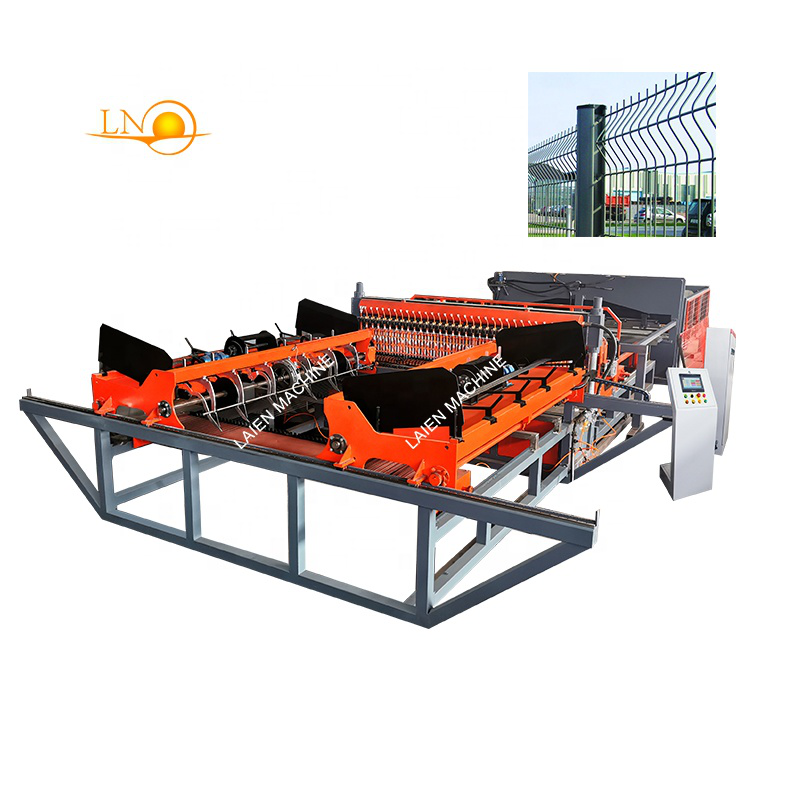

Automatic fence panel mesh welding machine
This line is for making 3D Fence and 2d anti-climb fence.It consist of automatic mesh welding machine, mesh bending machine machine, mesh stacking part.It can automatic welding and bending in one line. Save labor, increase production capacity.Auxiliary wire straightening and cutting machine for making steel bar
| Model | LE-HLW2500 | LE-HLW-3200 |
|---|---|---|
|
Mesh width |
Max 2500mm |
Max 3200mm |
|
Wire diameter |
2.5-6mm |
3-6mm |
|
Mesh length |
Max 3000mm |
Max 3000mm |
|
Welding speed |
60-85times/min |
60-85times/min |
| Line wire feeding way | Automatic feeding By steel bar | |
| Cross wire feeding way | Automatic feeding By steel bar | |
|
Welding type |
Pneumatic/Mechanical |
Pneumatic/Mechanical |
|
Production capacity |
300-500pcs/8hour |
|
1. Double line wire feeding hopper driving by servo motor. More precise, higher speed, Save labor
2. Line&cross wire storage device: it can load max2.5t wire one time. Feeding one time using long time. Save labor.
3. Pneumatic welding type with high speed and good quality finished mesh.
4. Automatic bending- feeding mesh by servo motor. It can bend 2-6 “v” at one mesh fence.
5. Automatic mesh stacking part. Stacking mesh automatic with small cover area.
6. This line can make both 3D fence & flat mesh fence
Wire mesh welding machine for panel mesh is used to make fence mesh, 3D fence ,anti-climb fence, road mesh, reinforcing mesh, shelf, explosion-proof wall, etc.
1. Are you the factory?
Yes, our factory design and produce kinds of different wire mesh machines.
2. Where is your factory located? How can i visit there?
Our factory is located in anping, hebei, China.when you prepare to come here, please tell me your place, then i can tell you how to come here, for example, if you from beijing come here, then you can choice take the fast train, it will need about 1.5hours. if you from guangzhou come here, then you can choice take air , it will need about 3hours.
3. What is the voltage ?
To ensure each machine runs well in different country and region, we will choose different voltage according to customer's require.
4. How much is your machine ?
The machine price is related to the specification, so please first tell us your detail specification, then we can offer you the accurate price.
5. What is your payment terms?
Usually 30% T/T in advance, 70% T/T before shipment or irrevocable L/C at sight or others.... It is negotiationable.
6. Do your supply includes installation and debugging ?
Yes. We can send at least one of our engineer to your factory for installation and debugging. The cost will be quoted separately if you need such service.
7. How long is your delivery time?
Usually it will need about 30 days after received the deposit.
8. How long of your warranty?
Usually one year warranty.
