Quick Details
-
Product name:
-
mixed tuner ASI IP input ISDB-T Modulator
-
Input interface:
-
HD+CVBS+Tuner+ASI+ CI slot+IP
-
Output Interface:
-
ASI+RF+IP
-
Rack Capacity:
-
6 Modules
-
Modulation:
-
ATSC, ISDBT, DTMBT, and DVB-C/-T modulation RF
-
Input Tuner Type:
-
DVB-C, DVB-T/T2, DVB-S/S2, DTMBT, ISDBT, ATSC
-
Each Sub Board:
-
4HD, 4 CVBS, 4 Tuner, 2 CI slot
-
Support OSD:
-
encoder module OSD, subtitle insertion, logo insertion, QR code
-
IP Streaming:
-
128 IP address inputs, MPTS and SPTS output, supports UDP/RTP protocol
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Ustarlink, Ustarlink
-
Model Number:
-
ETD9000
-
Product name:
-
mixed tuner ASI IP input ISDB-T Modulator
-
Input interface:
-
HD+CVBS+Tuner+ASI+ CI slot+IP
-
Output Interface:
-
ASI+RF+IP
-
Rack Capacity:
-
6 Modules
-
Modulation:
-
ATSC, ISDBT, DTMBT, and DVB-C/-T modulation RF
-
Input Tuner Type:
-
DVB-C, DVB-T/T2, DVB-S/S2, DTMBT, ISDBT, ATSC
-
Each Sub Board:
-
4HD, 4 CVBS, 4 Tuner, 2 CI slot
-
Support OSD:
-
encoder module OSD, subtitle insertion, logo insertion, QR code
-
IP Streaming:
-
128 IP address inputs, MPTS and SPTS output, supports UDP/RTP protocol
Mixed Input signals 16RF Output IP to isdbt Modulator Digital IPTV to ISDBT IP/ASI to 16 carriers non-adjacent rf ISDB-T Modulator
Overview

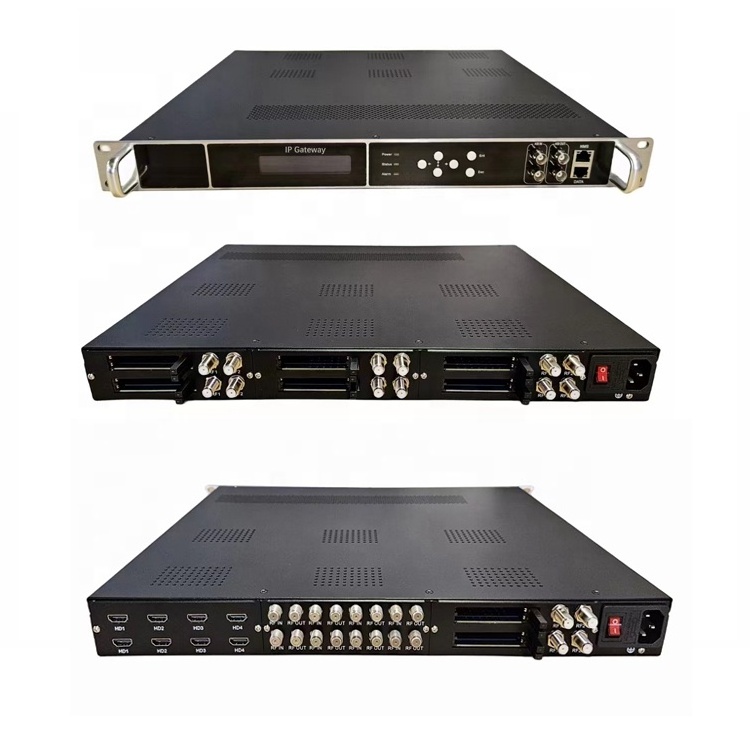

The ETD9000 series of products is the latest developed by our company for digital TV front-end audio and video processing equipment. It can encode, transcode and multiplex modulate various types of audio and video, so that the processed audio and video signals can meet the needs of users on different occasions. Used in various systems. It adopts a standard 1U body, has a compact structure and is easy to install and use. The whole machine has excellent performance, adopts modular design, can be adapted to a variety of interfaces, and has flexible function configuration. Users can select functions and customize them according to their needs, which is extremely cost-effective. Depending on the selected module type, it can support functions such as HD Encoding to IP output, SD encoding + modulation output, HD encoding + modulation output, Tuner input to IP output, Tuner input to modulation output, etc. The modulation module can choose ATSC, ISDBT, DTMBT, and DVB-C/-T modulation output modes. A single device integrates a complete set of front-end system functions and is very suitable for digital TV transmission systems such as hotels, clubs, hospitals, and bathhouses.
Features
l Supports multiple port module Tuner/HDMI/CVBS (optional) input. A single module supports 4-channel input, and a maximum of 6 modules are supported for a total of 24-channel input. The number of channels is optional in multiples of 4.
l Support PCMCIA large card module, a single module supports 2-channel large card descrambling, and supports up to 12 PCMCIA card channels
l Support different tuner (DVB-C, DVB-T/T2, DVB-S/S2, DTMBT, ISDBT, ATSC) input, or mixed use (such as: 4 channels of DVB-T and 4 channels of ATSC input at the same time to form 8 channel input)
l Supports 1 Gigabit IP input/output, 128 IP address inputs, MPTS and SPTS output, supports UDP/RTP protocol
l Support 4/8/16 channels of modulation output, output standards ATSC, ISDBT, DTMBT, DVB-C/-T optional
l Support 2 ASI inputs
l Support 2 ASI independent outputs
l Supports encoder module OSD, subtitle insertion, logo insertion, QR code, and picture functions
l Support LCD and button control functions
l Support network management (Web)
l Support online upgrade
Application
Function Module Selection
|
Motherboard Function |
Interfaces |
Input |
Output |
|
IP output Module |
1*GE; 1*NMS , 4*ASI (2 ASI in, 2 ASI out) |
128 input IP, 2 ASI input |
8 MPTS output /512 SPTS output ; 2*ASI output |
|
Modulating Module with 4 RF frequencies |
1*GE; 1*NMS , 1 * RF output 4*ASI (2 ASI in, 2 ASI out) |
128 input IP , 2 ASI input |
4*RF output ; 1 MPTS output/128 SPTS output ; 2*ASI output |
|
Modulating Module with 8 RF frequencies Economic Type |
1*GE; 1*NMS , 1 * RF output |
128 input IP |
8 RF output ; 1 MPTS output |
|
Modulating Module with 8 RF frequencies Standard Type |
1*GE; 1*NMS , 1 * RF output 4*ASI (2 ASI in, 2 ASI out) |
128 input IP , 2 ASI input |
8 RF output ; 8 MPTS output/512 SPTS output ; 2*ASI output |
|
Modulating Module with 16 RF frequencies |
1*GE; 1*NMS , 1 * RF output 4*ASI (2 ASI in, 2 ASI out) |
128 input IP , 2 ASI input |
16 RF output ; 8 MPTS output/512 SPTS output ; 2*ASI output |
|
Daughterboard Types |
Input Interface |
Functions |
|
|
Tuner Module |
4Channel Tuner with loop out (DVB-T2 no loop out) |
Tuner Input (DVB-C,DVB-T/T2,DVB-S/S2,DTMBT,ISDBT,ATSC Optional) |
|
|
HD Encoding(H.264) |
4 Ch HDMI interface |
HD Encoding for MPG4/H.264 |
|
|
HD Encoding (H.265) |
4 Ch HDMI interface |
HD Encoding for MPG4/H.264/H.265 |
|
|
SD Encoding Module |
4 Ch CVBS interface |
CVBS Encoding , Support MPEG-2 |
|
|
PCMCIA Module |
2*PCMCIA IRD Channel (2 CI slot +2 Tuner) |
Tuner Input +PCMCIA IRD for decrypt |
|
Note: You can flexibly select the motherboard and daughterboard modules
for combination according to your needs. A single device can support up to 6 daughterboard modules.
