1.Briggs Stratton EPA 13.5hp (horsepower) single-cylinder engine 2. Double pumps and double valves 3. Tracked type width 988mm 4.
Four-wheel drive 5.The whole system is equipped with automatic bucket leveling as standard（The bucket is on the same level when
the arm is raised and lowered.） 6. Design speed 6KM/h 7. Hidden design of big arm cylinder
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
1992mmX1050mm(820mm)X1210mm
-
Machine Weight:
-
640 kg
-
Bucket capacity:
-
0.08CBM
-
Marketing Type:
-
New Product 2023
-
Rated Power (KW):
-
10KW(13.5HP)
-
Rotating speed (rpm):
-
3600
-
Noise (Db):
-
≤95
-
Pressure (Mpa):
-
17
-
Operating Load:
-
260 Kg
-
bucket Capacity:
-
0.08 m³
-
Max Lifting Force:
-
300 Kg
-
Travel Speed:
-
0-6 Km/h
-
Operating Weight:
-
640 Kg
-
Brand:
-
STR
Quick Details
-
Engine Brand:
-
RATO / Briggs & Stratton
-
Power:
-
10KW
-
Brand Name:
-
STR
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
1992mmX1050mm(820mm)X1210mm
-
Machine Weight:
-
640 kg
-
Bucket capacity:
-
0.08CBM
-
Marketing Type:
-
New Product 2023
-
Rated Power (KW):
-
10KW(13.5HP)
-
Rotating speed (rpm):
-
3600
-
Noise (Db):
-
≤95
-
Pressure (Mpa):
-
17
-
Operating Load:
-
260 Kg
-
bucket Capacity:
-
0.08 m³
-
Max Lifting Force:
-
300 Kg
-
Travel Speed:
-
0-6 Km/h
-
Operating Weight:
-
640 Kg
-
Brand:
-
STR
STR 320 10Kw(13.5Hp) width 988mm trackedc mini skid steer loader
EPA/EURO 5/CE certified with an imported Briggs&Stration engine.This is a very cost-effective mini skid steer loader just
developed and produced by our company. Its biggest highlight is that the bucket has an automatic leveling function, This loader uses narrow tires with a width of 820mm to work into the elevator so that it can work indoors.
developed and produced by our company. Its biggest highlight is that the bucket has an automatic leveling function, This loader uses narrow tires with a width of 820mm to work into the elevator so that it can work indoors.
PRODUCT SPECTFICATION
PRODUCT PARAMENTERS
|
No
|
Item
|
Metric
|
U.S.
|
|
1
|
Max working height (H3）
|
2504 mm
|
98.58 inch
|
|
2
|
Max pin height (H2)
|
1951 mm
|
76.81 inch
|
|
3
|
Max Dumping height (H1)
|
1423 mm
|
56.02 inch
|
|
4
|
Max Dumping distance(E)
|
100 mm
|
3.94 inch
|
|
5
|
Max Dumping Angle (a3)
|
53°
|
53°
|
|
6
|
Rollback of bucket on ground (a2)
|
32°
|
32°
|
|
7
|
Departure angle (a1)
|
17°
|
17°
|
|
8
|
Total height (H)
|
1210 mm
|
47.64 inch
|
|
9
|
Ground clearance (F)
|
133.5 mm
|
5.26 inch
|
|
10
|
Wheel base (L1)
|
653 mm
|
25.71 inch
|
|
11
|
Overall length without bucket (L3)
|
1552 mm
|
61.1 inch
|
|
12
|
Total width (B2)
|
1050 mm
|
41.34 inch
|
|
13
|
Bucket width (B1)
|
820 mm/1050mm
|
32.28 inch
|
|
14
|
Total length with bucket (L)
|
1992 mm
|
78.43 inch
|
|
15
|
Turn radius forward turning (R)
|
1205 mm
|
47.44 inch
|
|
16
|
Rated Power (KW)
|
10KW(13.5HP)
|
|
|
17
|
Rotating speed (rpm)
|
3600
|
|
|
18
|
Noise (Db)
|
≤95
|
|
|
19
|
Pressure (Mpa)
|
17
|
|
|
20
|
Raise
|
4
|
|
|
21
|
Dump
|
1.3
|
|
|
22
|
Lower
|
3.2
|
|
|
16
|
Operating Load
|
260 Kg
|
573.2 Lb
|
|
20
|
Bucket Capacity
|
0.08 m³
|
3 ft³
|
|
21
|
Max Lifting Force
|
300 Kg
|
661.39 Lb
|
|
22
|
Travel Speed
|
0-6 Km/h
|
3.73 mlie/h
|
|
23
|
Operating Weight
|
640 Kg
|
1410 Lb
|
OUR ADVANTAGES
Optional Engine B&S Honda Rato.B&S is hot selling with two-cylinder engine, 23Hp, three-year warranty
The Attachment adopts international standard quick-change, easy to disassemble and replace.
Big arm cylinder with hidden technology
An exhaust fan is placed on the left side face, which will automatically start when the hydraulic oil temperature exceeds 70
degrees Celsius.
degrees Celsius.
The footrests are made of non-slip pads.
New process for both handrail and operating valve, easy operation and increased protection
DETAILS IMAGES
A CORNER OF THE FACTORY AND SHIPPING
Attachment Parameters
Tiller
Mixer
Auger+Auger drill
Sweeper with bucket
Angel blade
Snow blower
Backhoe
Grapple
Trench filler
Log Splitter/Branch crusher
Stump grinder
Stump grinder

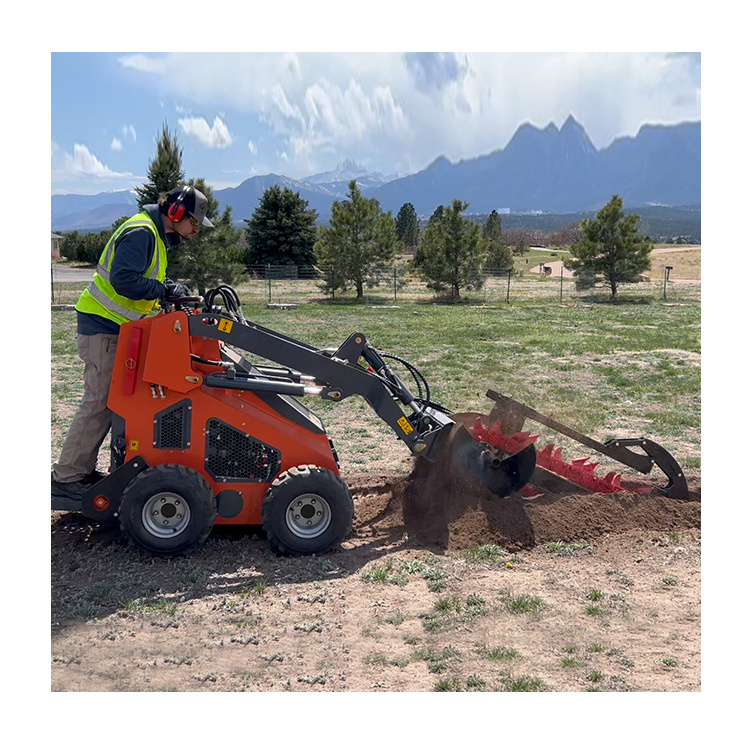

Trencher
Fork
Brush cutter
Lawn mower
