Quick Details
-
Insulation Material:
-
PVC
-
Place of Origin:
-
China
-
Brand Name:
-
LaiEn
-
Model Number:
-
4
-
Voltage:
-
300V/600V
-
Temperature range::
-
105℃
-
payment:
-
T/T,L/C,D/A,Western Union
-
MOQ:
-
200 meters
-
Certificate:
-
CCC,ISO9001,CE, ROHS
-
Color:
-
Optional
-
application:
-
household appliances, electric tools
Quick Details
-
Application:
-
Underground, electrical equipment
-
Conductor Material:
-
Tinned Copper, Tinned Copper
-
Conductor Type:
-
Stranded
-
Insulation Material:
-
PVC
-
Place of Origin:
-
China
-
Brand Name:
-
LaiEn
-
Model Number:
-
4
-
Voltage:
-
300V/600V
-
Temperature range::
-
105℃
-
payment:
-
T/T,L/C,D/A,Western Union
-
MOQ:
-
200 meters
-
Certificate:
-
CCC,ISO9001,CE, ROHS
-
Color:
-
Optional
-
application:
-
household appliances, electric tools
Product Description

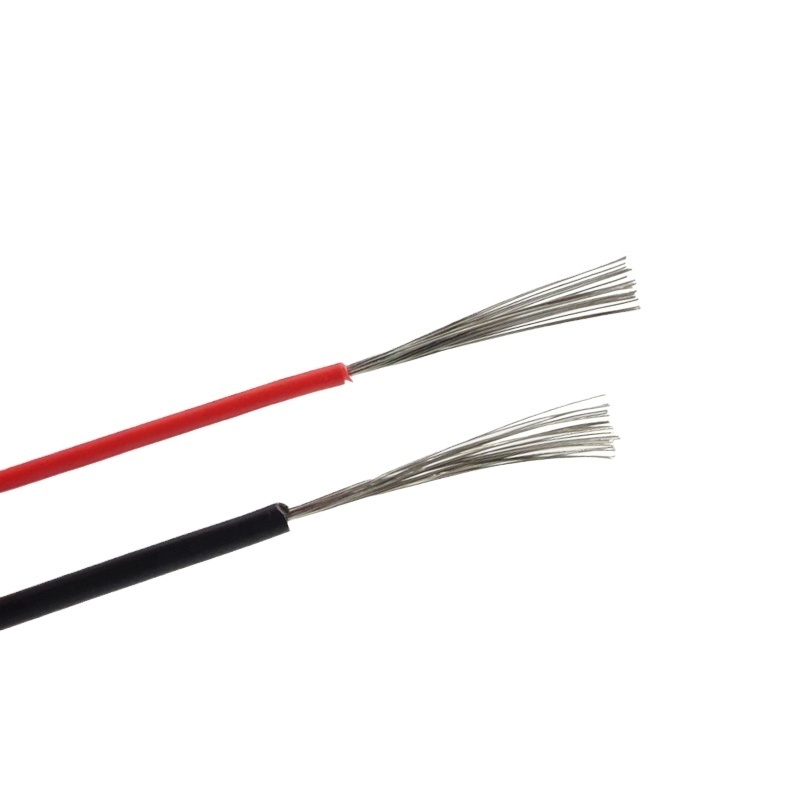

tinned copper stranded hook up wire cable
AWG
AWM UL1015 600 Voltage cable for home appliance
Rated temperature：105℃
Rated voltage：600V
Reference standard：UL 758, UL1581
Solid or stranded,tinned or bare copper conductor28-6AWG
Insulation：PVC
Passes ROHS、REACH environmental test
Passes FT2、VW-1 vertical fire test
For general electronics,electrical equipment
Rated voltage：600V
Reference standard：UL 758, UL1581
Solid or stranded,tinned or bare copper conductor28-6AWG
Insulation：PVC
Passes ROHS、REACH environmental test
Passes FT2、VW-1 vertical fire test
For general electronics,electrical equipment
Details Images
Product Paramenters
|
Conductor Style |
线规
AWG |
导体Conductor
|
|
绝缘Insulation
|
|
|
导体电阻（20℃）
Max.Cond.resistance at 20℃（Ω/km） |
|||
|
|
|
结构Construction
|
绞合直径 Dia.（mm）
|
平均厚度
Thick.（mm） |
最薄厚度
Thick.（mm） |
成品外径
O.D.（mm） |
|
|||
|
绞合导体 Stranded |
1015-26
|
7/0.16
|
0.48
|
0.76
|
0.69
|
2.10
|
143.00
|
|||
|
|
1015-24
|
11/0.16
|
0.61
|
0.76
|
0.69
|
2.20
|
89.30
|
|||
|
|
1015-22
|
17/0.16
|
0.76
|
0.76
|
0.69
|
2.40
|
56.40
|
|||
|
|
1015-20
|
26/0.16
|
0.94
|
0.76
|
0.69
|
2.55
|
35.20
|
|||
|
|
1015-18
|
41/0.16
|
1.18
|
0.76
|
0.69
|
2.75
|
22.20
|
|||
|
|
|
16/0.254
|
1.18
|
0.76
|
0.69
|
2.75
|
22.20
|
|||
|
|
1015-16
|
26/0.254
|
1.50
|
0.76
|
0.69
|
3.15
|
14.00
|
|||
|
|
1015-14
|
41/0.254
|
1.88
|
0.76
|
0.69
|
3.55
|
8.78
|
|||
|
|
1015-12
|
65/0.254
|
2.37
|
0.76
|
0.69
|
4.00
|
5.53
|
|||
|
|
1015-10
|
105/0.254
|
3.30
|
0.76
|
0.69
|
4.85
|
3.476
|
|||
|
|
1015-8
|
168/0.254
|
4.28
|
1.14
|
1.02
|
6.60
|
2.163
|
|||
|
|
1015-6
|
266/0.254
|
5.35
|
1.52
|
1.37
|
8.40
|
1.361
|
|||
|
|
1015-4
|
420/0.254
|
6.70
|
1.52
|
1.37
|
9.80
|
0.8559
|
|||
|
|
1015-3
|
532/0.254
|
7.55
|
1.52
|
1.37
|
10.70
|
0.6788
|
|||
|
|
1015-2
|
665/0.254
|
8.45
|
1.52
|
1.37
|
11.60
|
0.5384
|
|||
|
|
1015-1
|
836/0.254
|
9.50
|
2.03
|
1.83
|
13.70
|
0.4268
|
|||
|
|
1015-1/0
|
1045/0.254
|
10.60
|
2.03
|
1.83
|
14.80
|
0.3367
|
|||
|
|
1015-2/0
|
1330/0.254
|
12.00
|
2.03
|
1.83
|
16.20
|
0.2670
|
|||
|
|
1015-3/0
|
1672/0.254
|
13.45
|
2.03
|
1.83
|
17.60
|
0.2194
|
|||
|
|
1015-4/0
|
2109/0.254
|
14.85
|
2.03
|
1.83
|
19.00
|
0.1722
|
|||
|
单根导体
Solid |
1015-24
|
1/0.511
|
0.51
|
0.76
|
0.69
|
2.10
|
89.30
|
|||
|
|
1015-22
|
1/0.643
|
0.64
|
0.76
|
0.69
|
2.20
|
56.40
|
|||
|
|
1015-20
|
1/0.813
|
0.81
|
0.76
|
0.69
|
2.40
|
35.20
|
|||
|
|
1015-18
|
1/1.024
|
1.02
|
0.76
|
0.69
|
2.70
|
22.20
|
|||
Certificate
Company Introduction
Yiwu LaiEn
Electrical EquipmentCo., Ltd
have 25years experience in export and we have own factory in Hnagzhou which is located in the industrial zone of Tangqi Town, Yuhang District, HangzhouCity, Zhejiang Province, with superior geographical location and convenient transportation. The company integrates R&D, innovation, production, and sales. It has advanced beam wire, extruding production equipment, and various types of testing instruments.
Specializing in the manufacture of high-temperature and high-pressure silicone wire, PVC electronic wire, Teflon wire, multi-core power line, XLPE, low- smoke halogen wire and other specifications cable. The product has passed many international certifications such as UL, VDE, CCC, and KC, and meets RoHS, REACH, SGS and other test standards. Customized special wire can be developed according to customer requirements.
The products are widely used in lighting lamps, electronic equipment, household appliances, aerospace, metallurgical chemicals, automotive ships, instrument instruments, electrical control cabinets, and domestic wiring.
The company adheres to the integrity, efficient, professional, innovative business philosophy, and with the participation of all personnel, quality first policy, serving new and old customers, service society, let us join hands to create a better future.
