Quick Details
-
Warranty:
-
1 year, 12 Months
-
Brand Name:
-
Sinyane
-
Model Number:
-
GDL
-
Place of Origin:
-
Chongqing, China
-
Horsepower:
-
10hp
-
Outlet Size:
-
50mm
-
Power:
-
7.5kw, Electric
-
Product name:
-

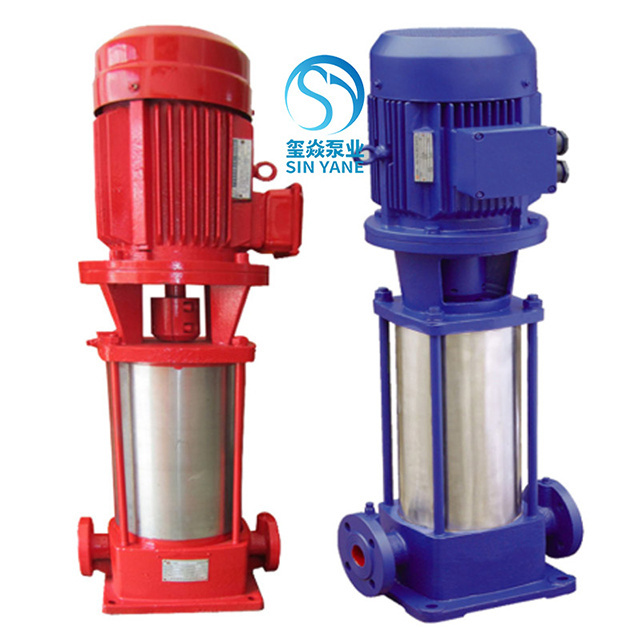

GDL 10hp multistage centrifugal water pump vertical inline jockey pump
-
Material:
-
stainless steel
-
Feature:
-
High Efficiency
-
Head:
-
105m
-
Flow:
-
12m3/h
-
Certificate:
-
ISO CE
-
Sealing:
-
mechanical seal or packing seal
Quick Details
-
Application:
-
Other, Automotive Industry, Biofuel Industry, Commercial Buildings, Developing World Water Solutions, District Energy, Drinking water treatment, Family Homes, Food and Beverage Industry, HVAC OEM, Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Machining, Marine, Metal and Equipment Manufacturers, Mining industry, Pharmaceutical industry, Raw Water Intake, temperature control, Washing and Cleaning, Water Distribution, Water Treatment Solutions
-
Pressure:
-
10.5bar
-
Voltage:
-
220/380
-
Warranty:
-
1 year, 12 Months
-
Brand Name:
-
Sinyane
-
Model Number:
-
GDL
-
Place of Origin:
-
Chongqing, China
-
Horsepower:
-
10hp
-
Outlet Size:
-
50mm
-
Power:
-
7.5kw, Electric
-
Product name:
-
GDL 10hp multistage centrifugal water pump vertical inline jockey pump
-
Material:
-
stainless steel
-
Feature:
-
High Efficiency
-
Head:
-
105m
-
Flow:
-
12m3/h
-
Certificate:
-
ISO CE
-
Sealing:
-
mechanical seal or packing seal
GDL vertical multistage inline pump is the latest type, which is characterized by energy saving, space effective, easy installation, stable performance and so on. The casing is made of 1Cr18Ni9Ti top-grade stainless steel while the shaft gland adopts the abrasion-resistance mechanical seal with zero leakage and a long service life.
GDL vertical multistage inline pump solves the axial force with the hydraulic balance so that the pump has stable running with low noise. Its installation conditions are more favorable than those of DL pump because it can be easily installed in the middle of a segment of horizontal pipeline.
GDL vertical multistage inline pump can fully meet the need for the water supply and drainage of high-rise buildings, deep wells and mines and the like as well as for the fire fighting facilities. Therefore, it is the optimal type to transport cold and hot water, general media or other liquids with similar physical and chemical properties as water in all major industries. INQUIRE NOW
|
Item |
GDL 10hp vertical multistage inline centrifugal water pump |
|
Model |
GDL series |
|
Material |
Stainless steel |
|
Mode |
Vertical |
|
Seal |
Soft packing seal or mechanical seal |
|
Speed |
2900r/min |
|
Theory |
Centrifugal pump |
|
Structure |
Multistage pump |
|
Usage |
irrigation, transfer water |
|
Power |
Electric |
|
Standard or Non |
Standard |
|
Shaft |
Stainless steel |
|
Outlet diameter |
25-100mm |
|
Capacity |
1.4-192m³/h |
|
Head |
33-230m |
|
Power |
1.1-132kw |
|
Warranty |
1year |
|
Certificate |
ISO9001:2008 |
|
OEM |
Acceptable GET THE LATEST PRICE |
