Qingdao crowns machinery co.,ltd
was located in Huangdao District, the west coast of Qingdao city, Shandong province, China. We
are specialized in rubber and plastic machinery designing,manufacturing and maintenance work.we have been specializing in rubber and plastic machinery and production line for more than 30 years.
- Product Details
- {{item.text}}
Quick Details
-
Power (kW):
-
52
-
Weight (KG):
-
4600 KG
-
Application:
-
Used Tire Retreading
-
Machine Type:
-
Rubber Vulcanizing Machine
-
COLOR:
-
Custom
-
Capacity:
-
8/12/16/24 TIRE
-
Heating Mode:
-
Electricity/Steam/Oil
-
Temperature:
-
95~120℃
-
Curing time:
-
2.6~3h
-
End product:
-
Rubber Particle
-
Package:
-
wood package or plastic film packing in container
Quick Details
-
Place of Origin:
-
Shandong, China
-
Voltage:
-
380V/220V, Custom
-
Dimension(L*W*H):
-
3500*1800*2300mm
-
Power (kW):
-
52
-
Weight (KG):
-
4600 KG
-
Application:
-
Used Tire Retreading
-
Machine Type:
-
Rubber Vulcanizing Machine
-
COLOR:
-
Custom
-
Capacity:
-
8/12/16/24 TIRE
-
Heating Mode:
-
Electricity/Steam/Oil
-
Temperature:
-
95~120℃
-
Curing time:
-
2.6~3h
-
End product:
-
Rubber Particle
-
Package:
-
wood package or plastic film packing in container

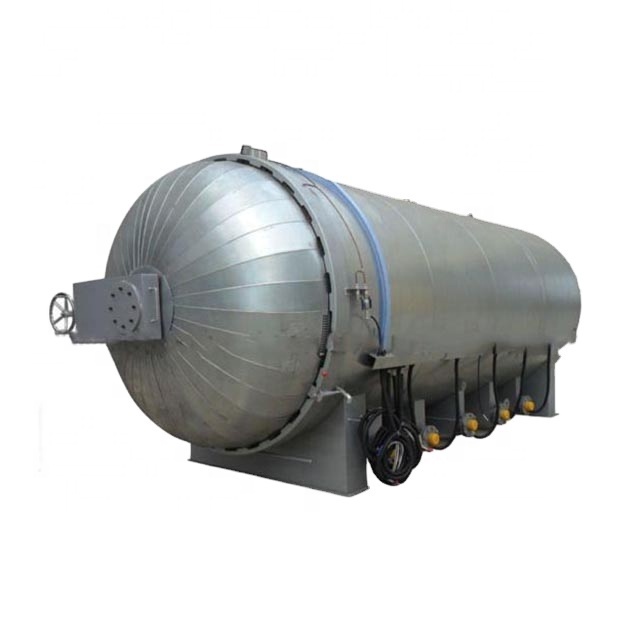

Rubber Car Tire Curing Chamber Autoclave OTR Tyre vulcanizing tank Truck Tire Retreading Machine
Introduction
The tire vulcanizing tank, is a specialized piece of equipment used in the tire manufacturing and repair industry. The vulcanization process is crucial for enhancing the strength, durability, and performance of rubber tires. This process involves subjecting raw rubber materials or partially constructed tires to heat and pressure within a vulcanizing tank to chemically cross-link the rubber molecules, making them more stable and resilient.
Working Principle
The new stainless steel electrothermal tube sub-group N arranged in the tank wall, the high temperature fan through the temperature cycle plate to spread the heat from the back to the front evenly, pushed to the tank door, returned to the fan guide.
Throughout the tank, thetemperature is uniform and the pressure is constant, thus forming a working environment for tire vulcanization.
The tire vulcanizing tank adopts a new technology of devulcanization. Compared with traditional devulcanizing equipments, its fetures and advantages as follows:
1.
The quality is higher;
2.
Plastifiers, reclaiming agents and rubber powder can be put together into the devulcanizer;
3.
The devulcanizing time will be shortened;
4.
The reclaim powder does not need to be ground so fine;
5.
No polluted water will be let out during the devulcanization;
6.The devulcanizing vessel can be automatically open and close.
|
Product Paramenters
|
|
|
|
Suitable tire:
|
Car, Truck, OTR, Tractor
|
|
|
Heating system:
|
Electric heating or steam heating
|
|
|
Capacity:
|
2,4,6,8,10,12,14,16,18,20,22,24 tires/time
|
|
|
Power:
|
32-80kw
|
|
|
Temperature:
|
95-120℃
|
|
|
Curing time:
|
2-3hours/time
|
|
|
Voltage:
|
380V
|
|
|
Size:
|
4000*1800*2300mm
|
|
APPLICATION
Purpose of Vulcanization
The primary purpose of vulcanization is to transform the soft, elastic rubber compound into a tough and
resilient material suitable for use in automotive, industrial, and various other applications. Vulcanized rubber has improved heat resistance, wear resistance, and overall durability.
Application
Vulcanizing tanks are used in tire manufacturing facilities to produce new tires and in tire repair shops to retread or repair worn tires. They are also used in various other industries that require vulcanized rubber components, such as conveyor belts, seals, and gaskets.
The tyre vulcanizing tank plays a crucial role in the tire manufacturing and repair process by subjecting rubber materials to heat and pressure, resulting in vulcanization and the production of strong, durable tires. This process is essential for ensuring the safety and reliability of tires used in various applications.
CROWNS MACHINERY
CROWNS MAIN PRODUCTS
* Rubber mixing equipment: kneader mixing machine, bucket,mixing mill, bale cutter
* Rubber vulcanizing machine: Four-column press, Frame press, E-type press,vacuum molding press,injection press, tire and tube press, Belt vulcanizing press.
Rubber calendaring machine: 2 roll, 3 roll, 4 roll calender, calendaring line
Rubber extruding equipment: Hot feed extruder,cold feed extruder, belt extrudingand calendering line
* Rubber ,silicone,plastic products prdocuction line
* Automatic and semi-automatic waste tire recycling equipment
* Used tyre retreading machine line
* Rubber vulcanizing machine: Four-column press, Frame press, E-type press,vacuum molding press,injection press, tire and tube press, Belt vulcanizing press.
Rubber calendaring machine: 2 roll, 3 roll, 4 roll calender, calendaring line
Rubber extruding equipment: Hot feed extruder,cold feed extruder, belt extrudingand calendering line
* Rubber ,silicone,plastic products prdocuction line
* Automatic and semi-automatic waste tire recycling equipment
* Used tyre retreading machine line
Q1: Where is your factory located?
A1: Qingdao crowns machinery co.,ltd is located at Huangdao district ,Qingdao city, China
Q2: Are you an integrated supplier for rubber&plastic machine ?
A2: Yes, we can provide the complete solution line to customer according to customer’s requirement.
Q3: How about the quality control in your factory?
A3: Qingdao crowns has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, technology also water
.electrical,machine layout in factory, etc.
Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also.
Q6: What is the delivery time of the machine?
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 10-30 days
Q7 : What is the warranty of the machine ?
A7: The whole machine’s warranty period is 12 months and key parts will be depended.
Q8 : Do you provide any spare parts with machine?
A8: Yes, CROWNS will provide one set standard spare parts to customer according to different machines
A1: Qingdao crowns machinery co.,ltd is located at Huangdao district ,Qingdao city, China
Q2: Are you an integrated supplier for rubber&plastic machine ?
A2: Yes, we can provide the complete solution line to customer according to customer’s requirement.
Q3: How about the quality control in your factory?
A3: Qingdao crowns has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, technology also water
.electrical,machine layout in factory, etc.
Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also.
Q6: What is the delivery time of the machine?
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 10-30 days
Q7 : What is the warranty of the machine ?
A7: The whole machine’s warranty period is 12 months and key parts will be depended.
Q8 : Do you provide any spare parts with machine?
A8: Yes, CROWNS will provide one set standard spare parts to customer according to different machines
