Quick Details
-
Warranty:
-
1 YEAR, 1 year or 1000hours
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JIANGHAO
-
Model Number:
-
JHS-70GF
-
Speed:
-
1500rpm
-
Product feature:
-
70kw diesel generator
-
Diesel engine:
-
SDEC
-
Alternator:
-
Hengsheng
-
Controller:
-
Smargen
-
Speed Governor:
-
Mechanical
-
Cooled system:
-
Water cooled
-
Options:
-
silent canopy/ATS/fuel tank/trailer
-
24h online service:
-
skype:lin.cathy9 whatsapp:008615298502058
Quick Details
-
Rated Voltage:
-
380/220v
-
Rated Current:
-
133A
-
Frequency:
-
50HZ
-
Warranty:
-
1 YEAR, 1 year or 1000hours
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JIANGHAO
-
Model Number:
-
JHS-70GF
-
Speed:
-
1500rpm
-
Product feature:
-
70kw diesel generator
-
Diesel engine:
-
SDEC
-
Alternator:
-
Hengsheng
-
Controller:
-
Smargen
-
Speed Governor:
-
Mechanical
-
Cooled system:
-
Water cooled
-
Options:
-
silent canopy/ATS/fuel tank/trailer
-
24h online service:
-
skype:lin.cathy9 whatsapp:008615298502058

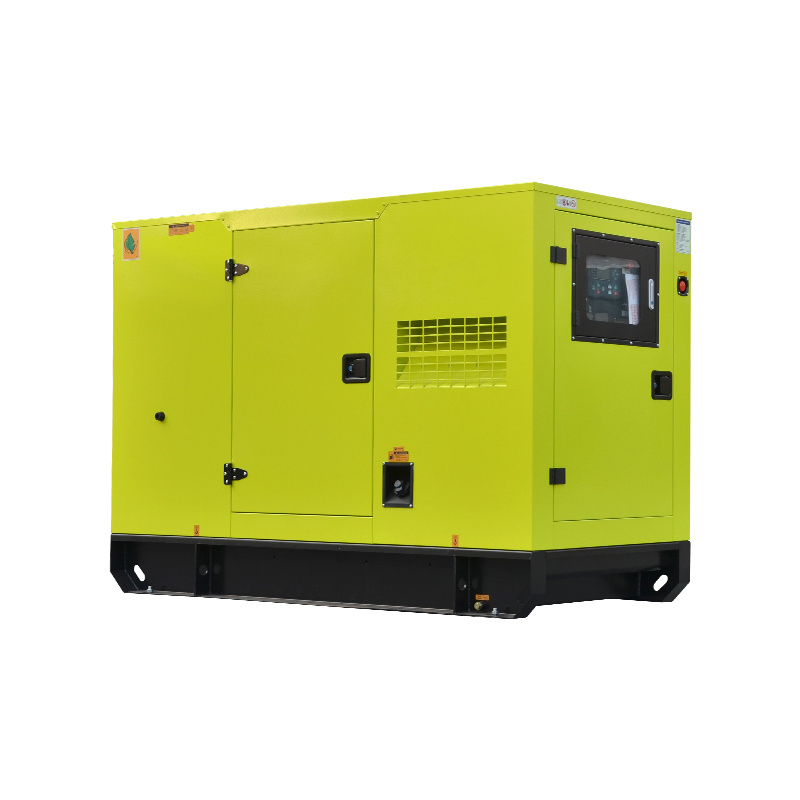

| Diesel generator Details | |
| Model | JHS-70GF |
| Power | 70KW |
| Frequency | 50HZ |
| Voltage | 380/220v(voltage can be customized) |
| Optional Type | Open/trailer |
| Size of Sillent type | 2400*1000*1560mm |
| Weight of Silent type | 1100kg |
| With Diesel Engine | |
| Brand&model | SDEC SC4H115D2 |
| Prime Power | 86kw |
| Cylinders | 4 in line arrangement |
| Bore*Stroke | 105*124mm |
| Displacement | 4.3L |
| Fuel Consumption at 100% Load | 207g/kw.h |
| Speed Governor | Mechanical |
| With Alternator | |
| Optional Brands | Stamford/Leroy Somer/Mecc Alte/Marathon |
| Exciter type | Single bearing,brushless,Self-excited |
| Power factor | 0.8 |
| Voltage adjust range | ≥5% |
| Insulation Grade | H |
| Protection Grade | IP23 |
| With Controller | |
| Optional brands | Deepsea/ComAp/Smartgen |
Jiangsu Jianghao generator Co.,Ltd , located in Taizhou city,Jiangsu Province,which is near Shanghai port.We have modern assembly workshop to produce diesel generator sets.Jianghao devote itself into researing,maufac-
ruing and installing superb diesel generator sets ,power range from 2kva to 4000kva ,include silent type,mobile type,container type, mobile power station,multiple parallel,remote control and so on .As the ideal emergency standby power equipment,diesel generator sets are widely used in industrial and mining enterprises,
communication,army, ports,highway,railway,hotels etc places. With the compelling quality and service,Jianghao has built a good reputation with customers in the area of diesel generator sets,our products are exported to over eighty countries and regions, over 70 millions USD in the year 2019 .
