Quick Details
-
Brand Name:
-
Maxway
-
Place of Origin:
-
Guangdong, China
-
Refresh Rate:
-
60 MHz
-
Wide Color Gamut:
-
72%
-
type:
-
sun readable high bright lcd monitor 32 inch 2500 nits
-
Display proportion:
-
16:9
-
Display color:
-
16.7 M
-
Backlit:
-
LED backlit
-
AC Input:
-
110-240V
-
Color option:
-
Black or optional
-
Housing material:
-
Whole metal housing
-
Installation:
-
Roof mount/Wall mount/Floor standing
Quick Details
-
Brightness:
-
1500cd/m2
-
Contrast Ratio:
-
4000:1
-
Panel Type:
-
TFT
-
Brand Name:
-
Maxway
-
Place of Origin:
-
Guangdong, China
-
Refresh Rate:
-
60 MHz
-
Wide Color Gamut:
-
72%
-
type:
-
sun readable high bright lcd monitor 32 inch 2500 nits
-
Display proportion:
-
16:9
-
Display color:
-
16.7 M
-
Backlit:
-
LED backlit
-
AC Input:
-
110-240V
-
Color option:
-
Black or optional
-
Housing material:
-
Whole metal housing
-
Installation:
-
Roof mount/Wall mount/Floor standing

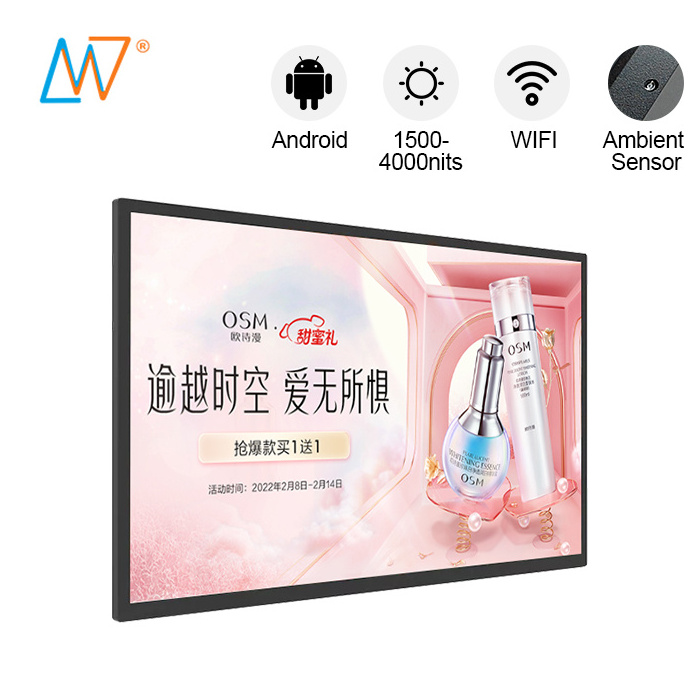

Product view of front, back, side and dimensions.
Product name: factory Custom semi outdoor display sun readable high bright lcd monitor 32 inch 2500 nits
Model Number: MW-321ABNH
Main features and specs.
Main features
| OS: | Android version 7.1/8.1/9.0/11.0 (Linux optional) | |
|
Hardware (All IN ONE PC optiional) |
CPU Options
|
Amlogic T972 Quad-core ARM Cortex-A55 1.9GHz |
| RK3568 Quad-core ARM Cortex-A55, 2.0GHz | ||
| RK3288 Quad-core ARM Cortex-A17,1.8GHz | ||
|
RK3399 Dual-core Cortex-A72 2.0GHz + Quad-core Cortex-A53 1.5GHz |
||
| RAM: | 2GB/4GB | |
| Nand Flash: | Standard 8GB(16GB/32GB/64GB/128GB optional) | |
| WiFi network: | Support WIFI 802.11b/g/n | |
| 3G/4G network: | Support 3G/4G (optional) | |
| Light sensor | Default with light sensor for auto adjustment of brightness according to environment. | |
| Intelligent cooling system: | Speed of fans adjust according to working temperature. | |
| Camera: | optional | |
| Main features: |
Readable under sunlight, intelligent colling and auto light adjustment, for shop window display. |
|
| Managing software: |
Flexible to use our CMS software or your's |
|
| Playlist editor: | Multimedia contents can play by playlist mode | |
| Scheduling playback: |
Publish task by calendar, then the appointed terminal/terminals would play at specific time accordingly |
|
| Split Screen display: | Design the layout as you like, supports video, photo, text, ppt, word, excel, flash, rss, wheather, clock, date, web all can be display on different areas | |
| Auto Playback: |
Set time power on /off and automatically display and loop, 7 days and 24 hours no manual operation. |
|
| video/picture rotation: | 90/180/270 degree. (vertical display or horizontal display) | |
| Display type: | Horizontal or vertical/ landscape or portrait | |
| Files update: |
Files can be transmitted to flash memory automatically from server via LAN, WIFI or 3G/4G network |
|
| Network options: | Standard with LAN and WiFi (3G/4G is optional) | |
Welcome to contact us and get user manual for reference.
More specs
|
LCD screen specs ( High TNI 105 ℃ ) |
Model Number: | MW-321ABNH |
| Screen size: | 32" | |
| Display proportion: | 16:9 | |
| Resolution(Pixel): | 1920*1080 | |
| Display color: | 16.7M | |
| Response time : | 6.5ms | |
| Luminance: | 1500nits to 4000nits optional | |
| Contrast ratio: | 4000:1 | |
| View angel (L/R/U/D): | 89/89/89/89 | |
|
Media Formats |
Video: |
MPEG1/2/4,AVI,H.264,
MOV,MKV,RMVB,RM,TS...etc
|
| Audio: |
MP3, WMA, WAV, EAAC+, MP2 dec,
AC3, FLAC, APE, BSAC
|
|
| Picture: | JPEG ,BMP ,GIF ,PNG | |
| Others: |
WORD, EXCEL, PPT, HTML
|
|
| Power supply | AC Input: | 110-240V |
| Appearance | Color option: | Black or optional |
| Housing material: | Whole metal housing | |
| I/O interface: |
AC input, Power Switch, USB*2, LAN port,
|
|
| Installation: | Roof mount/Wall mount/Floor standing | |
| Unit dimensions: | 792*482*90MM | |
| Active display area: | 698.4*392.85MM | |
| Packing details | Carton size: | 800*580*180MM |
| Carton: | 1PC | |
| Gross Weight: | 15KGS | |
| Package: | Wooden packing +carton |
