Quick Details
-
Brand Name:
-
raymax
-
Weight (T):
-
3 T
-
Motor Power (kw):
-
11 kw
-
Application:
-
Metal Forming
-
Function:
-
Stamping Metal Product
-
Material:
-
Metal Steel
-
Usage:
-
Sheet Metal Industry
-
Rated pressure:
-
2000KN
-
Max. pressure of liquid:
-
25mpa
-
Knock-out pressure:
-
400kn
-
Slider stroke:
-
700mm
-
Daylight:
-
1100mm
-
Weight:
-
18T
Quick Details
-
Machine Type:
-
Four-column Three-beam Hydraulic Press
-
Return Force (kN):
-
200 kN
-
Place of Origin:
-
China
-
Brand Name:
-
raymax
-
Weight (T):
-
3 T
-
Motor Power (kw):
-
11 kw
-
Application:
-
Metal Forming
-
Function:
-
Stamping Metal Product
-
Material:
-
Metal Steel
-
Usage:
-
Sheet Metal Industry
-
Rated pressure:
-
2000KN
-
Max. pressure of liquid:
-
25mpa
-
Knock-out pressure:
-
400kn
-
Slider stroke:
-
700mm
-
Daylight:
-
1100mm
-
Weight:
-
18T

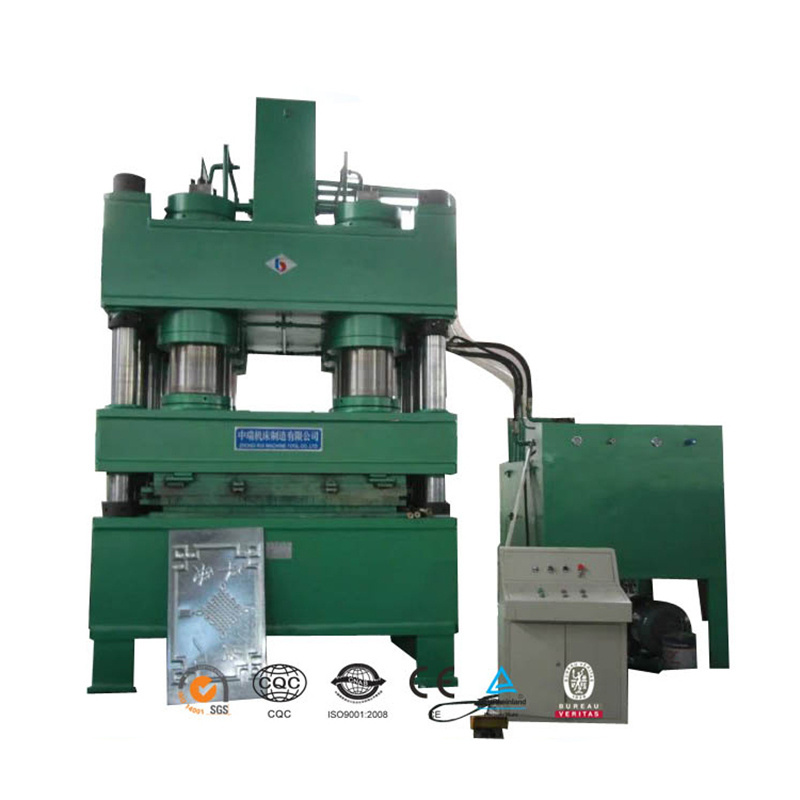

YTD32-3000T H-frame Hydraulic power Press / Die press machine for door skin stamping , metal door embossing
Machine Details
| Model YTD32 | Nominal pressure(KN) | slider stroke(mm) | Opening height(mm) | worktable size | Motor(kw) | Weight(KGS) |
| 63T | 630 | 500 | 750 | 520x500 | 7.5 | 3200 |
| 100T | 1000 | 600 | 880 | 720x580 | 7.5 | 4000 |
| 160T | 1600 | 700 | 1000 | 1000x800 | 11 | 7500 |
| 200T | 2000 | 700 | 1100 | 1000x900 | 15 | 9000 |
| 315T | 3150 | 800 | 1250 | 1250x1120 | 22 | 10500 |
| 500T | 5000 | 900 | 1500 | 1400x1400 | 2x22 | 23000 |
| 630T | 6300 | 900 | 1500 | 1500x1500 | 2x22 | 29000 |
| 800T | 8000 | 900 | 1500 | 1500x1500 | 2x22 | 35000 |
| 1000T | 10000 | 900 | 1500 | 1500x1500 | 2x22 | 40000 |
