Quick Details
-
Power:
-
32 W
-
Dimension(L*W*H):
-
15m*15m*3m
-
Weight:
-
10000 KG
-
Production Capacity:
-
80-160kg/h
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product weight:
-
100-1000g/㎡
-
Certification:
-
ISO9001
Quick Details
-
Voltage:
-
380v three phase
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Tian Yuan
-
Power:
-
32 W
-
Dimension(L*W*H):
-
15m*15m*3m
-
Weight:
-
10000 KG
-
Production Capacity:
-
80-160kg/h
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product weight:
-
100-1000g/㎡
-
Certification:
-
ISO9001
Product Overview
ZCM-1000 Needle Punching Machine
Uses and characteristics:
It is normally used in producing nonwovens such as needle punched wadding,,shoe-pad,geotextiles,etc.
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
Construction form
|
prepunch、upstroke、downstroke and counter punch
|
|
2
|
Machine width
|
2200—4700mm
|
|
3
|
Final net width
|
2000—4500mm
|
|
4
|
Product weight
|
100-1000g/㎡
|
|
5
|
Capacity
|
80-160kg/h
|
|
6
|
Needle density
|
4000-7000s/m
|
|
7
|
Needle frequency
|
100-600n/min
|
|
8
|
Needle stroke
|
30-60mm
|
|
9
|
Speed
|
0.6-6m/min
|
Production Process
Name
:
HFD-1380 Opening machine
Usages
:Opening machine uses card wire nail board for opening.
Name
:
HFH-2 Cotton feeding machine
Usages
: Suitable for intensively mixing the opened fiber and feed to the next working procedure
Name:
HFJ-18 Carding machine
Usages: The machine is used for laying the carded fiber to certain thick and wide fiber sheet for next working procedure.
Name:
HFJ-250 Cross Lapper
Usages:
The machine is used for laying the carded fiber to certain thick and wide fiber sheet for next working procedure.
Name:
JRJ-1 Rolling And Edge-Cutting Machine
Usages:
The machine is the latter operation work of non-woven fabric production line,suitable for cutting the products to needed length and width for packing purpose.
Each production line can be customized according to your output requirements.
Samples
Similar Product

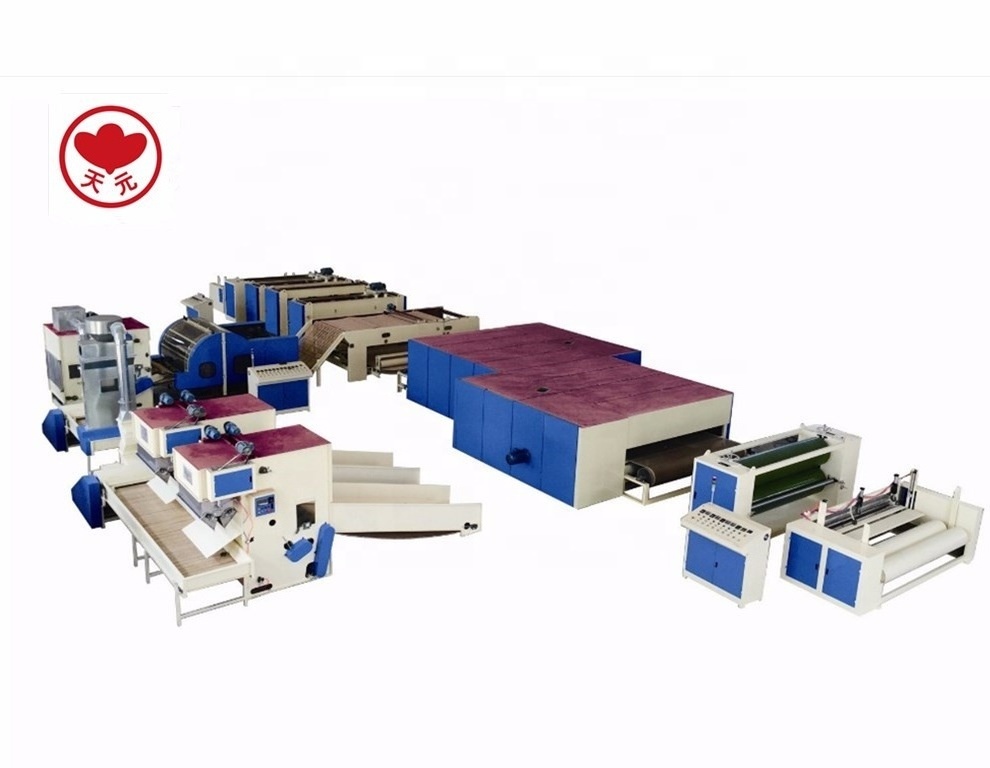

The glue-free waddings produced by this machine unit is replacement of sponge, used forexclusive mattress, sofa cushion, tatami,
filtering material and acoustic feltetc. The glue-free waddings dryer adopts stainless steel chain plate structure. Ensuringthe
smoothness and flatness of product surface.
filtering material and acoustic feltetc. The glue-free waddings dryer adopts stainless steel chain plate structure. Ensuringthe
smoothness and flatness of product surface.
Product packaging
Our Advantages
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Engineers can install and debug machinery overseas.
* Training how to use the machine.
* Permanent after-sales support.
