Quick Details
-
Voltage:
-
380-440V
-
Disc Dia.:
-
N/A
-
No Load Speed:
-
0.23m/s
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Amerigo
-
Model Number:
-
A-700S
-
Heating System:
-
Diesel Burner
-
Color:
-
Gray or Orange
-
Product name:
-

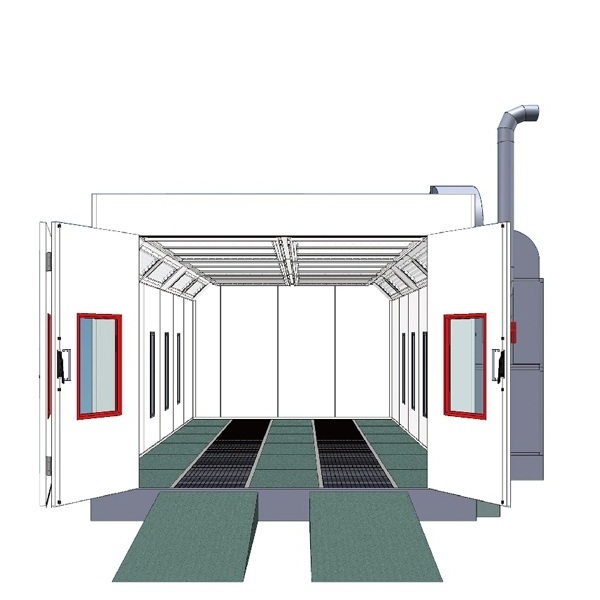

Amerigo A-700S European Style CE Car Spray Booth/Spray Paint Booth
-
Lighting System:
-
Led light with reflective stain steel plate
-
Warranty:
-
1 Year
-
Filters:
-
Prefilter
-
Control System:
-
Simens electrical component
-
Motor:
-
Direct drive
-
Character:
-
Paint spray booth used in auto factory
-
Air Fan:
-
Centrifugal insulated fans
Quick Details
-
Power:
-
20KW
-
External Size:
-
7000*5560*3610mm
-
Internal Size:
-
6900*4000*2800mm
-
Voltage:
-
380-440V
-
Disc Dia.:
-
N/A
-
No Load Speed:
-
0.23m/s
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Amerigo
-
Model Number:
-
A-700S
-
Heating System:
-
Diesel Burner
-
Color:
-
Gray or Orange
-
Product name:
-
Amerigo A-700S European Style CE Car Spray Booth/Spray Paint Booth
-
Lighting System:
-
Led light with reflective stain steel plate
-
Warranty:
-
1 Year
-
Filters:
-
Prefilter
-
Control System:
-
Simens electrical component
-
Motor:
-
Direct drive
-
Character:
-
Paint spray booth used in auto factory
-
Air Fan:
-
Centrifugal insulated fans
External dimension/mm:7000*5560*3610 (L*B*H)
Internal dimension/mm: 6900*4000*2800 (L*B*H)
Chamber system
- Foudation and floor- Galvanized grating, loading capacity of each wheel is 700kg.
Surface area of rear exhaust box, 2 row of galvanzed grating
- Metal basement- 350mm height galvanized steel plate. It is 50mm higher than similar product on market. Which will enhance the whole ventalation system
- Drive in ramps-2 ramps of 2000*1030mm of galvanized diamond plate.
- Wall and door- Rock wool and steel sheet.
- Roof panel- Designed with composite structure, the roof panel is made of galvanized steel plate.
- Tri-folded entrance door-Made of toughened glass with safety glass window. size is 3200×2700mm(B×H)
- Emergency door-Made of toughened glass with safety glass window. size is 800×2000mm(B×H)
Lighting system
- High level LED lighting offering LUX≥1000
- Ceiling lights: 8 group, each group 4*36w,total 1152w
- Side lights: 8 group, each group 2*36w, total 576w
Air purification system
-
Full filter down draught system-Prefilter:G4 level filter+ F7 belt
press filtration
Ceiling:EU5 high efficiency filters
Exhaust filter: Glass fiber cotton barrier filter
Air circulation system
- We use the best available direct driven motors with backward curved centrifugal aerofoil section blades as a complete unit. which the most efficient fan and motor combination in use today
- Inlet fan: 1 set of 5.5kw motor CE certifiied
- Exhaust fan: 1 set of 5.5kw motor CE certified
- No-load air speed: 0.23m/s, On-load air speed 0.25-0.35m/s
Heating system
- Installation postion: Left side of spray booth
- Direct fired diesel burner under brand of Italy Riello G20
- Material is SUS304 stainless steel by adopting argon arc welding technology, working temperature can reach 80 . C .
- Heating time is 3-6 min.s from 2 0 . C- 6 0 . C
Control system
- Under control of microcomputer program. It is contructed with lighting switch, spray mode swith, curing swithc, curing termperature swith, time setting, failer indicator, temperature controller, temperature limit controller, emergency stop, breakdown alrm and other electric device conforming to CE standard
Equipment used for spray booth
Packaging: Metal frame
Delivery time: 30 days
1 year warranty after container arrive at port of destination
OEM & ODM service
Spare parts will be replaced within one week, buyer bear the shipping cost
