Quick Details
-
Grade:
-
UK12
-
Product name:
-
Tungsten Carbide Rod
-
Application:
-
Machinery
-
Material:
-
100% Virgin Tungsten Carbide
-
Keywords:
-
Wolfram Carbide
-
Size:
-
Cusomized
-
Density:
-
14.45g/cm
-
Diameter:
-
3~100mm
-
Process:
-
HIP Sintering
-
GRAIN SIZE:
-
0.4/0.6/0.8/1.2
Quick Details
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Beister
-
Model Number:
-
ST02
-
Grade:
-
UK12
-
Product name:
-
Tungsten Carbide Rod
-
Application:
-
Machinery
-
Material:
-
100% Virgin Tungsten Carbide
-
Keywords:
-
Wolfram Carbide
-
Size:
-
Cusomized
-
Density:
-
14.45g/cm
-
Diameter:
-
3~100mm
-
Process:
-
HIP Sintering
-
GRAIN SIZE:
-
0.4/0.6/0.8/1.2
Rods with Two Straight Coolant Ducts/tungsten carbide rods/wear-resistant parts Zhuzhou Site cemented carbide co.,ltd supply the material of tungsten carbide rods with two straight coolant ducts introduction
Solid tungsten carbide bars can be used for making varioius drill bits, automobile special cutter, printed circuit board ,special cutters, engine special cutters, horologe,processing special cutters, integral vertical milling cutter, graver and etc.
Besides , they can be used for making of cemented carbide stamping head, core bar and perforation tools.
The cemented carbide rods are used for cutting aluminum alloy , cast iron , stainless steel , refractory alloy steel ,nickel-based alloy , titanium alloy and non-ferrous metal , various carbide grades with stable properties have been widely recongnized by worldwide tool makers. We can produced the ungrounded and grounded carbide rods.
Type specifications:D×L
|
Grade |
Density g/cm3 |
T.R.S Mpa |
Hardness HRA |
Grain Size µm |
Performance&Application |
Equivalent to ISO |
|
YG6X |
14.95 |
2600 |
92.0 |
1.0 |
For making all kinds of carbide rotary cutting tools which are used in cast iron, hot resistant alloy steel, non-ferrous metal and nonmetal. At the same time it can be used for wear resistant parts. |
K10 |
|
YG8 |
14.70 |
2800 |
90.0 |
1.2 |
For making carbide wear resistant parts, rods and molds, meanwhile it can be used for semifinishing and finishing cutting tool at low speed for cast iron, nonferrous metal, nonmetal material. |
K20-K30 |
|
YL10.2 |
14.50 |
4000 |
92 |
0.6 |
It is suitable for indexable tool with submicro gain size with wide application. Used for processing of stainless steel, hot resistance steel, Cr, Ti, Ni alloy, synthetic material, non metal material , alloy steel even woods. |
K20-K30 |

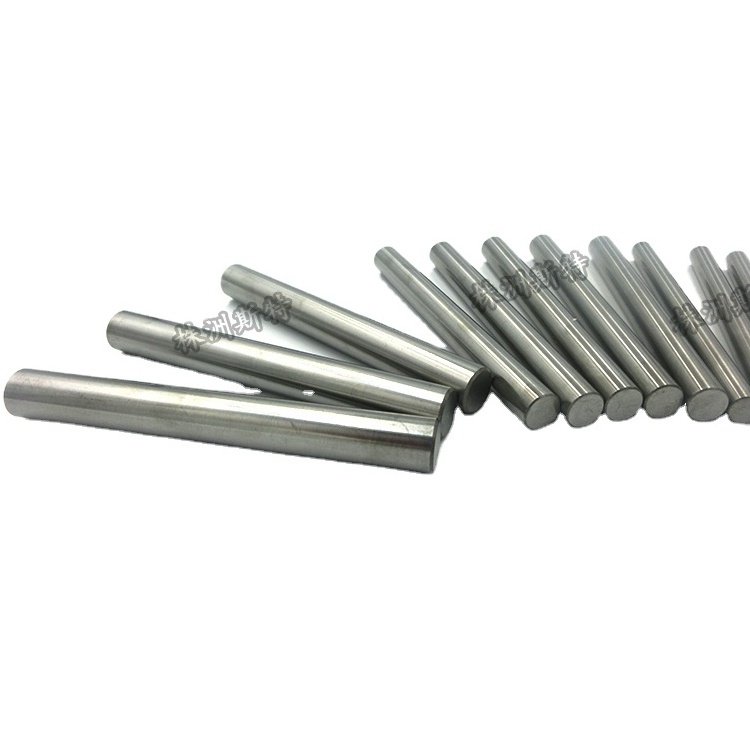

products show:
