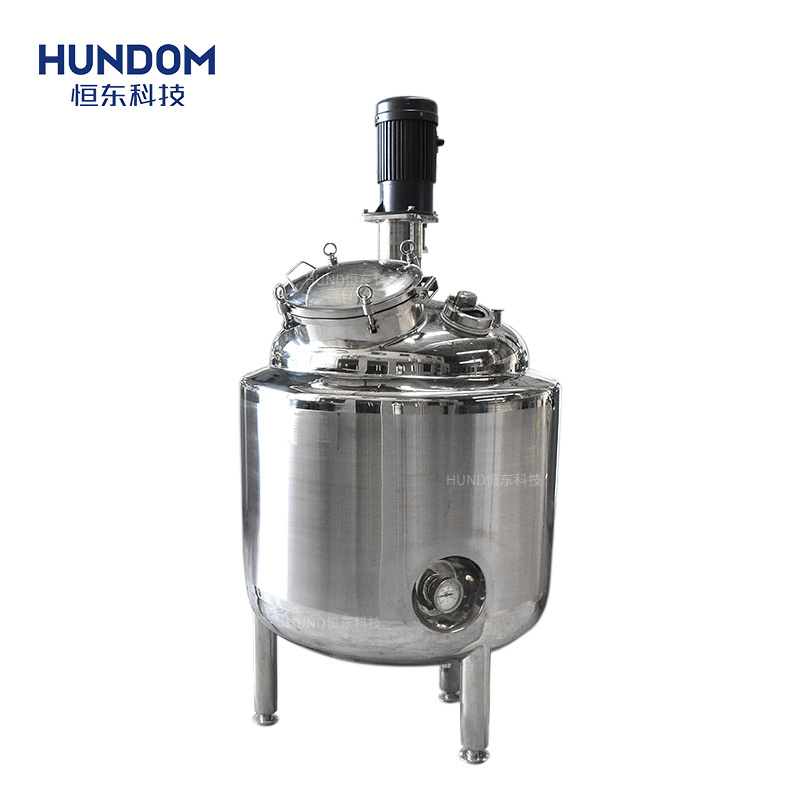

100L 200L 500L Stainless steel steam-heated tank agitator mixer syrup blender

Structure:

vacuum mixing tank/food mixing tank  are widely applied in the beverage, food, dairy, chemical and process industries used as blender tank, buffer tank and storage tank, which cleanable to sanitary standards .

1. Material: SUS304 and SUS 316 available

2. Capacity: 50L-20000L
3. Widlely used in food, beverage,dairy,Industries
4. Single layer/Double layers/Three layers

5. Mirror Polished inside and outside

6.Three  feet

Also could be made according to customers' requirement

Have different kinds of agitators:

1 , Bottom magnetic agitator with propeller impeller, speed from 50-400rpm or 50-800rpm. this kind of  agitator is mixing thin viscosity , such as eyedrop, injection, CIP liquid, water, etc.

2 , Top mechancial agitator with propeller impeller, speed at fix 71rpm or adjustable 20-200rpm or special  requirement. this kind of agitator is mixing syrup, injection, blood, oral liquid, culture media, etc.

3 , Top mechanical agitator with anchor or frame impeller, speed is from 10-70rpm. it is mixing higher  viscosity , such as sediment or viscosity oral liquid, etc.

4 , Top emusification homogenizer, speed max 2900rpm for small vessel, 1480rpm for bigger tank. this kind of agitator is mixing most high viscosity , such as suspension, oil, fat emulsification , etc.

5 , Bottom emusification homogenizer, speed max 2900rpm for small vessel, 1480rpm for bigger tank. this kind of agitator is mixing most high viscosity , such as suspension, oil, fat emulsification , etc.

Product parameters:
