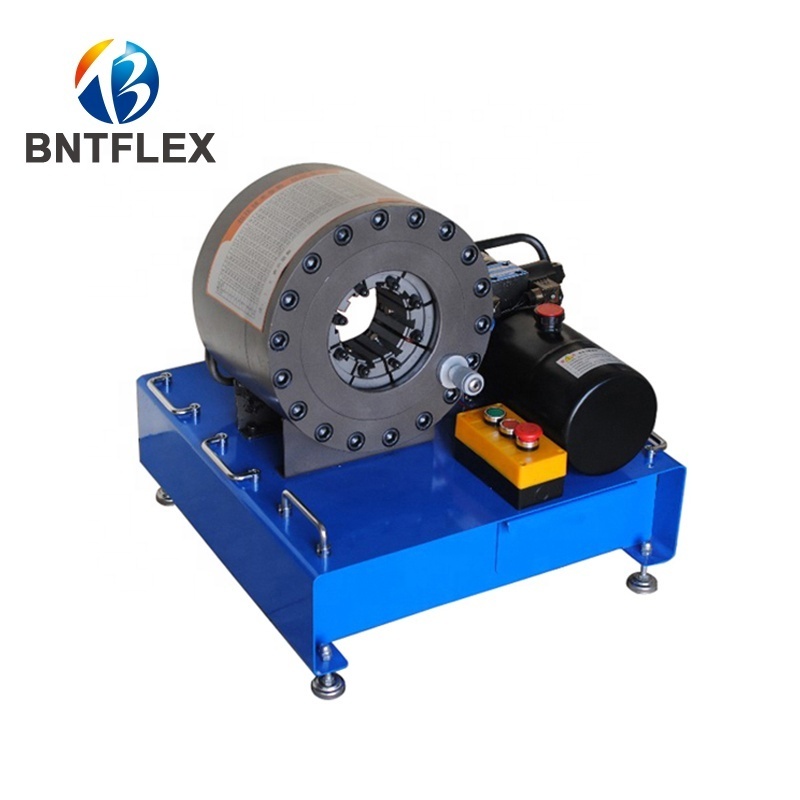

12v Hose Crimping Machine Press For Hydraulic Hoses

12v Hose Crimping Machine Press For Hydraulic Hoses

FOB Reference Price: Get Latest Price

≥1 Sets

US $1999

≥10 Sets

US $1899

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: 750mm*700mm*700mm

Weight:: 180

Name:: 24 volt D.C crimping machine

Application:: Crimp Hydraulic Hose, Fitting & Ferrule

Model:: BNT24

Color:: Blue

Control System:: Electric Control System

HS COSDE:: 846291900

Origin:: Tianjin,China

Certification:: CE

Keywords:: crimping machine

Material:: Carbon Steel

Quick Details

Place of Origin:: Beijing, China

Brand Name:: BNTFLEX

Voltage:: 12V / 24V

Dimension(L*W*H):: 750mm*700mm*700mm

Weight:: 180

Name:: 24 volt D.C crimping machine

Application:: Crimp Hydraulic Hose, Fitting & Ferrule

Model:: BNT24

Color:: Blue

Control System:: Electric Control System

HS COSDE:: 846291900

Origin:: Tianjin,China

Certification:: CE

Keywords:: crimping machine

Material:: Carbon Steel

CRIMPING MACHINES

BNT24

PROFESSIONAL WORKSHOP BENCHTOP

KEY ADVANTAGES

• Ergonomic micrometer

• Radial die movement

• High crimping force

• Electronic control and semiautomatic opening

• Cylinder protection

• Easy front access for elbow fittings

• Energy savings

MAIN APPLICATIONS

Dedicated to hydraulic maintenance specialists working on medium sized machines and equipment. Also suitable for assemblers involved in medium sized hoses and quantities.

TECHNICAL SPECIFICATIONS

Motor : 3.6KW
Noise Level : 71dB
Crimp Range : 10-87mm Crimp force : 3000KN
Opening with dies : +30mm
Complete Opening : 114mm
Master Die Length : 65mm
Standard Dies : 15,19,23,26,31,36,41,47,55,60mm

Dimensions : 750mm*700mm*700mmNet Weight : 180kg
Packaging : 850*800*800mm
Gross Weight : 240kg
Voltages : 24 V
Capacity : 2wb: 2'' max.
4ws: 2” max.
6ws: 1” max.

Technical Features:

The BNT24 crimping machine is a cost-effective alternative for single-piece production.

BNT24-models (precision, durability, force and ease of use), the 50model is totally unmatched in it's own class.

AVAILABLE DIE SETS

Product Code	Description	N°	Crimp Range(mm)	Die Length (mm)	For Hose ID(mm)
1	Die set n. 15 - length 60mm	15	15-19	65	6
2	Die set n. 19 - length 60 mm	19	19-23	65	8
3	Die set n. 23 - length 60 mm	23	23-26	65	10
4	Die set n. 26 - length 60 mm	26	26-31	65	13
5	Die set n. 31 - length 70 mm	31	31-36	65	16
6	Die set n. 36 - length 70 mm	36	36-41	65	19
7	Die set n. 41 - length 75 mm	41	41-47	65	25
8	Die set n. 47 - length 80 mm	47	47-55	78	32
9	Die set n. 55 - length 80 mm	55	55-60	78	38
10	Die set n. 60 - length 80 mm	60	60-69	78	51

Detailed Images

OUR RANGE OF BNT24 POWER MACHINES HAVE VARIOUS OPTIONS OF CONTROL AND A WIDE RANGE OPTIONAL EXTRAS TO SUIT WHAT YOU NEED.

Capacity: 2″ 4wb (may vary according to assembly material)
Crimp range: 10 – 87 mm
Crimp force: 300t

OUR RANGE OF BNT24 POWER MACHINES HAVE VARIOUS OPTIONS OF CONTROL AND A WIDE RANGE OPTIONAL EXTRAS TO SUIT WHAT YOU NEED.

Capacity: 2″ 4wb (may vary according to assembly material)
Crimp range: 10 – 87 mm
Crimp force: 300t

OUR RANGE OF BNT24 POWER MACHINES HAVE VARIOUS OPTIONS OF CONTROL AND A WIDE RANGE OPTIONAL EXTRAS TO SUIT WHAT YOU NEED.

Capacity: 2″ 4wb (may vary according to assembly material)
Crimp range: 10 – 87 mm
Crimp force: 300t
