Quick Details
-
Voltage:
-
220V/380V/440V, 380V/220V Optional
-
Dimension(L*W*H):
-
800x600x1550mm
-
Motor Power (kW):
-
1.5
-
Model Number:
-
J23-10T
-
Weight (T):
-
0.6
-
Certification:
-
ISO
-
Item:
-
Square hole punching machine, sheet metal punch press machine
-
Slipper stroke times:
-
150/min
-
Max closing height:
-
200mm
-
Connecting rod adjuster:
-
30mm
-
Nominal Force (kN):
-
100
Quick Details
-
Slide Stroke (mm):
-
50
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Anhui Sanxin
-
Voltage:
-
220V/380V/440V, 380V/220V Optional
-
Dimension(L*W*H):
-
800x600x1550mm
-
Motor Power (kW):
-
1.5
-
Model Number:
-
J23-10T
-
Weight (T):
-
0.6
-
Certification:
-
ISO
-
Item:
-
Square hole punching machine, sheet metal punch press machine
-
Slipper stroke times:
-
150/min
-
Max closing height:
-
200mm
-
Connecting rod adjuster:
-
30mm
-
Nominal Force (kN):
-
100
Plate louver 1mm aluminum stamping steel mould sheet metal c type 10 ton power press
1. Performance
1-1. J23 Series Presses is one of the new generation of plate process and developed by Anhui Sanxin Company ,The press is for cutting, punching, blanking, bending and light stretching work.
1-2. C- frame provides maximum rigidity and minimum deflection for accurate parts and long tool life.Steel-welded frame, high rigidity and less deformation Compact.Thick plates and large columns provide you with the stable platform you need for your demanding application.
1-3. Wide body frame eliminating vibration for improved ide life and machine,which means economical and practical. Operation space is wide, and the movable bolster could be moved out of frame to set the die. The structure is simple and the appliance is also beautiful.
1-4. High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.
2. Technical Data
| Item | Unit | J23-10 | J23-16 | J23-25 | J23-40 | J23-63 | J23-80 | J23-100 | |
| Norminal capacity | KN | 100 | 160 | 250 | 400 | 630 | 800 | 1000 | |
| Slide stroke | Times/min | 50 | 60 | 60 | 100 | 110 | 115 | 130 | |
| Slide strokes | mm | 150 | 140 | 100 | 50 | 50 | 45 | 45 | |
| Max closing height | mm | 200 | 245 | 300 | 350 | 380 | 385 | 400 | |
| Die height adjustment | mm | 30 | 50 | 70 | 75 | 80 | 80 | 100 | |
| Distance between slider center and machine | mm | 120 | 160 | 185 | 220 | 250 | 260 | 280 | |
| Workbench size | Front and back | mm | 230 | 280 | 320 | 400 | 450 | 490 | 553 |
| Left and right | mm | 370 | 455 | 540 | 650 | 700 | 760 | 830 | |
| Workbench diameter | mm | 100 | 130 | 130 | 140 | 170 | 170 | 190 | |
| Pole distance | mm | 215 | 215 | 200 | 245 | 310 | 310 | 365 | |
| Shank Hole Size | Diameter | mm | 30 | 35 | 38 | 40 | 60 | 60 | 60 |
| Depth | mm | 50 | 50 | 60 | 60 | 60 | 60 | 85 | |
| Pad thickness | mm | 40 | 50 | 55 | 70 | 85 | 95 | 95 | |
| Body tilting angle | ° | 30 | 20 | 20 | 20 | 20 | 20 | 20 | |
| Motor power | KW | 1.5 | 2.2 | 2.2 | 3 | 5.5 | 7.5 | 7.5 | |
| Dimension | Front and back | mm | 800 | 950 | 1100 | 1500 | 1700 | 1800 | 2000 |
| Left and right | mm | 600 | 620 | 800 | 1100 | 1200 | 1300 | 1500 | |
| Height | mm | 1550 | 1700 | 2000 | 2250 | 2500 | 2600 | 2800 | |
| Weight | KG | 450 | 750 | 1500 | 2500 | 4000 | 5000 | 6000 | |

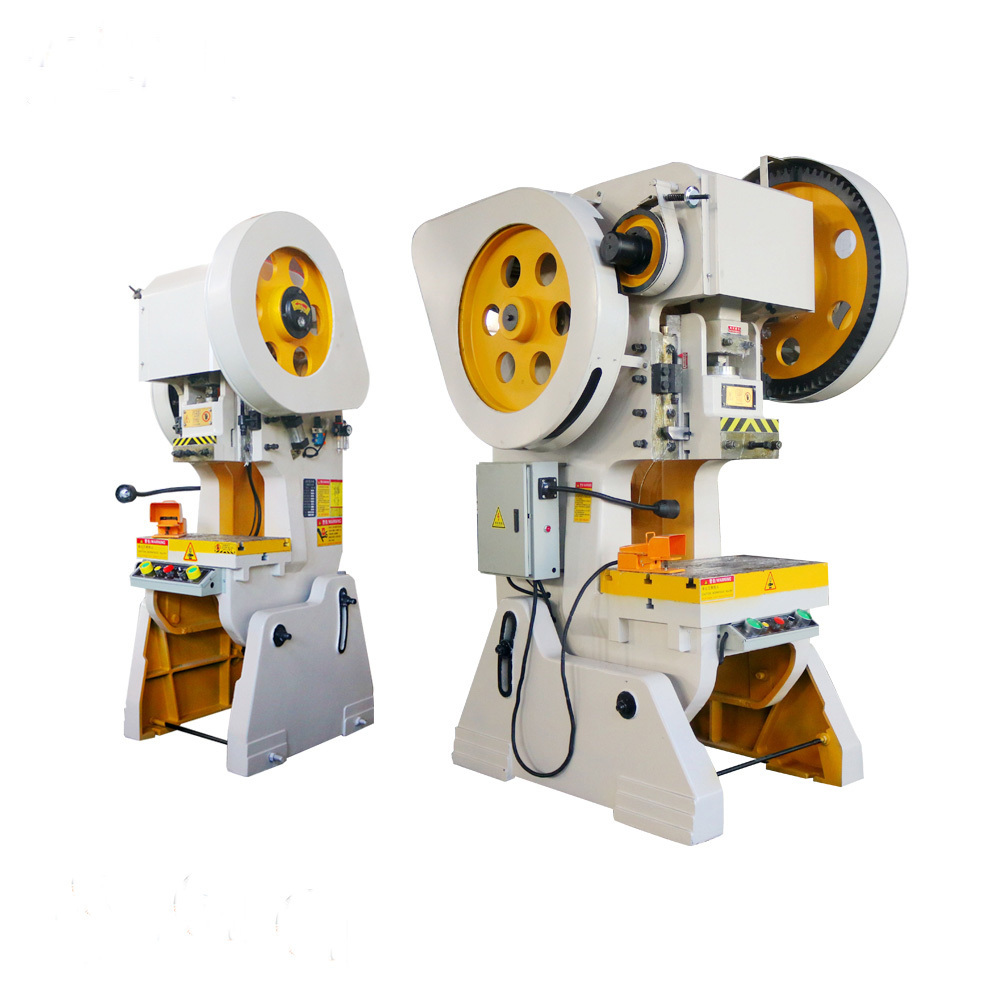

3. Punching Machine Photos
4. Our Service
| 1,quality Guarantee |
| We guarantee the quality of machine. |
| We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments. |
| Machine is free to repair with 1years.We offer flexible extended warranties if needed. |
| 2, Installation and Training Service |
| Our factory can send our engineer to the customer’s factory install, commission and training freely. As well, you may send your engineers to our company to learn how to operate machines. |
| 3,Question about the products |
| Anything confulsed you about the products, please contact us. You can contact with us by WhatsApp, Skype, Alibaba, QQ, Wechat, Email. |
