Quick Details
-
Model Number:
-
S7130EC
-
Type:
-
Resistivity/TDS/Salinity/Conductivity Meter
-
Battery:
-
no
-
Material:
-
pp
-
Product name:
-
Industry Online Resistivity/TDS/Salinity/Conductivity Meter
-
Measuring range:
-
0~500mS/cm, 0~18.25MΩ/cm, 0~250g/L, 0~700PPT;0~70%;0~700g/L
-
Power supply:
-
85~265VAC±10%,50±1Hz, Power ≤3W;9~36VDC, Power :≤3W
-
Temperature range:
-
-10~130℃
-
Display:
-
LCD Screen
-
Calibration:
-
Three-point Calibration
-
Dimension:
-
98*98*130mm
-
Application:
-
Water Treatment Industry
-
Color:
-
black
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Betteblue
-
Model Number:
-
S7130EC
-
Type:
-
Resistivity/TDS/Salinity/Conductivity Meter
-
Battery:
-
no
-
Material:
-
pp
-
Product name:
-
Industry Online Resistivity/TDS/Salinity/Conductivity Meter
-
Measuring range:
-
0~500mS/cm, 0~18.25MΩ/cm, 0~250g/L, 0~700PPT;0~70%;0~700g/L
-
Power supply:
-
85~265VAC±10%,50±1Hz, Power ≤3W;9~36VDC, Power :≤3W
-
Temperature range:
-
-10~130℃
-
Display:
-
LCD Screen
-
Calibration:
-
Three-point Calibration
-
Dimension:
-
98*98*130mm
-
Application:
-
Water Treatment Industry
-
Color:
-
black

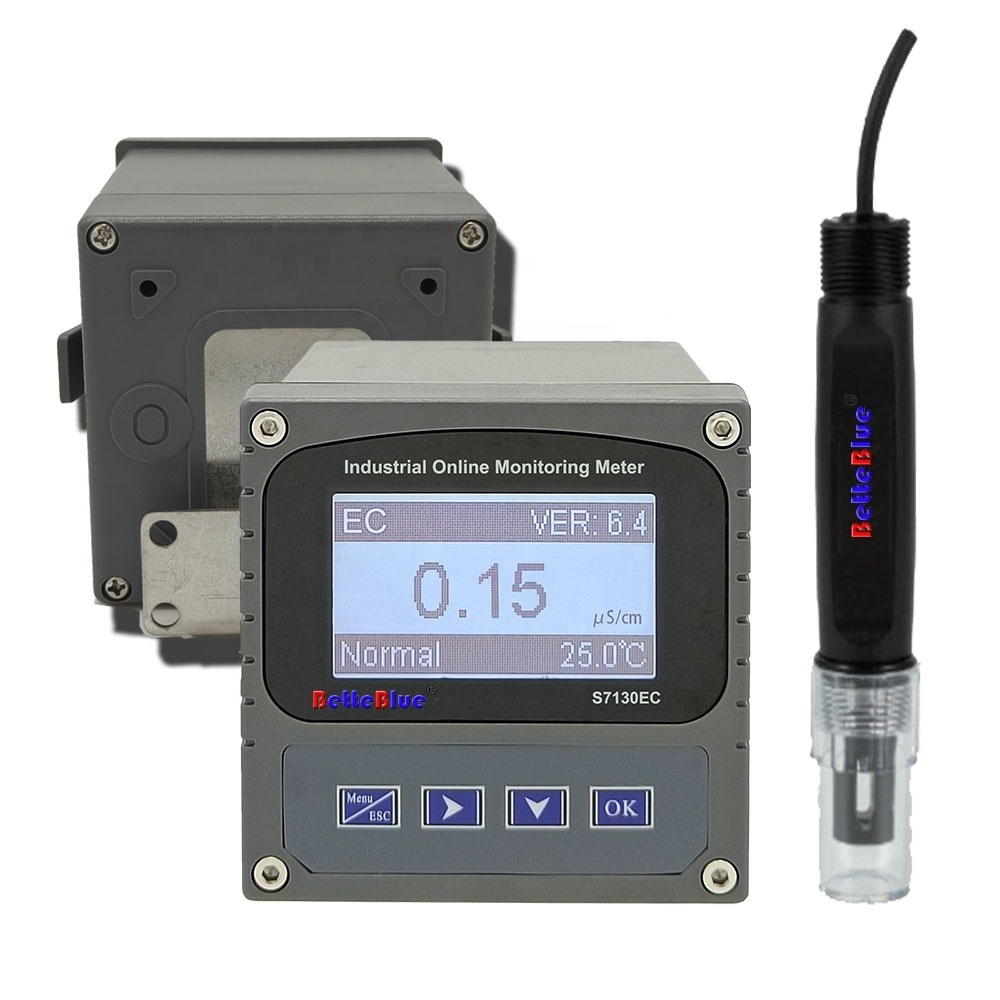

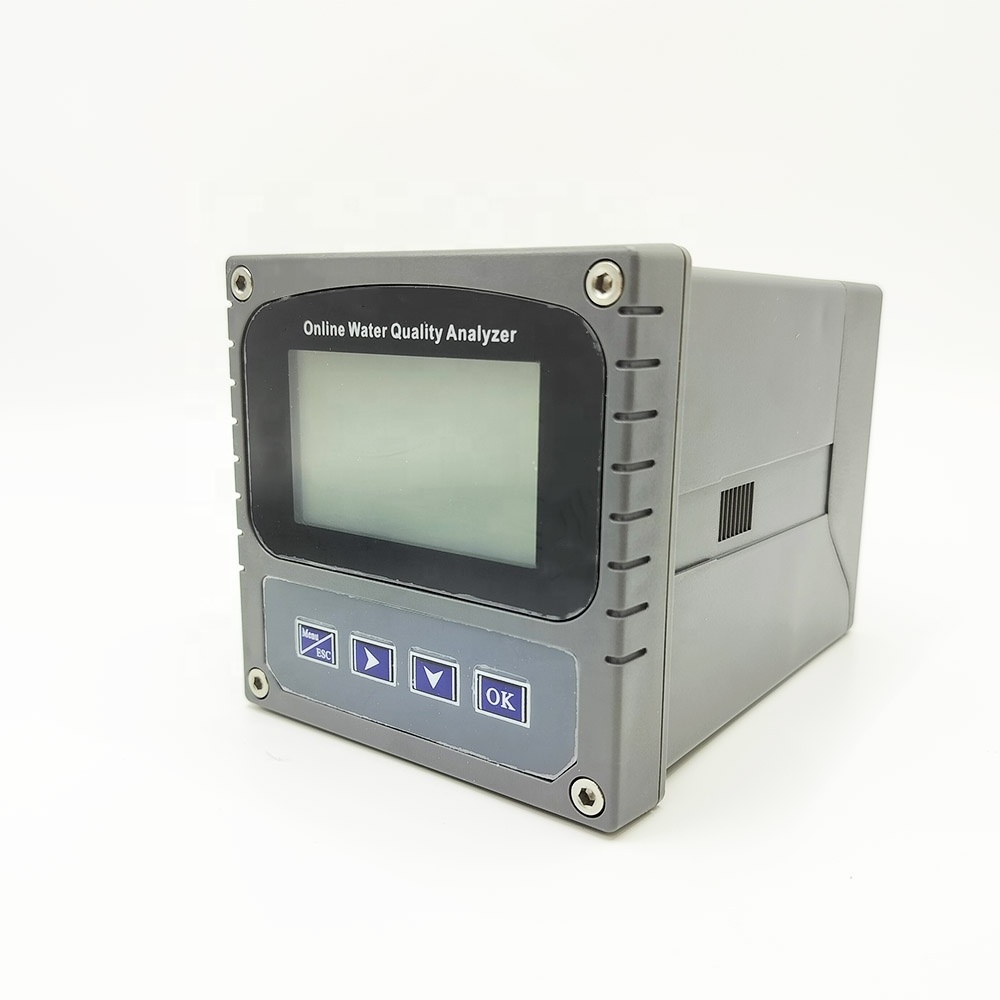

Water Quality Online EC TDS Analyzer Measuring Resistivity Conductivity TDS Salinity Meter Sensor
Product Description
Feature
LCD Display.
Intelligent menu operation.
Data Recording & Curve Display.
Manual or automatic temperature compensation.
Two sets of relay control switches.
High & low alarm, and hysteresis control.
4-20mA&RS485Multiple output modes.
Display measurements, temperature, state, etc.on the same interface.
Password protection function to prevent misoperationby non-staff.
Intelligent menu operation.
Data Recording & Curve Display.
Manual or automatic temperature compensation.
Two sets of relay control switches.
High & low alarm, and hysteresis control.
4-20mA&RS485Multiple output modes.
Display measurements, temperature, state, etc.on the same interface.
Password protection function to prevent misoperationby non-staff.
Specification
|
Measurement range:
|
Conductivity:0~500mS/cm;
Resistivity:0~18.25MΩ/cm; TDS:0~250g/L; Salinity: 0~700PPT;0~70%;0~700g/L; |
|
Temp:
|
-10~150.0ºC;
|
|
Resolution:
|
Conductivity:0.01μS/cm;0.01mS/cm;
Resistivity: 0.01KΩ/cm;0.01MΩ/cm;TDS:0.01mg/L;0.01g/L; Salinity: 0.01PPT;0.1%;0.01mg/L; |
|
Temp:
|
0.1ºC;
|
|
Basic error:
|
±0.5%F.S;Temp:±0.3ºC;
|
|
Stability:
|
±0.2%F.S/24h;
|
|
Two current output:
|
0/4 ~ 20 mA (load resistance<750 Ω);;20~4mA(load resistance<750Ω);
|
|
Communication output:
|
RS485 MODBUS RTU;
|
|
RS485 MODBUS RTU;
|
3A 250VAC,3A 30VDC;
|
|
Power supply:
|
85~265VAC±10%,50±1Hz,Power :≤3W;9~36VDC,Power : ≤3W;
|
|
Overall dimension:
|
98×98×130mm;
|
|

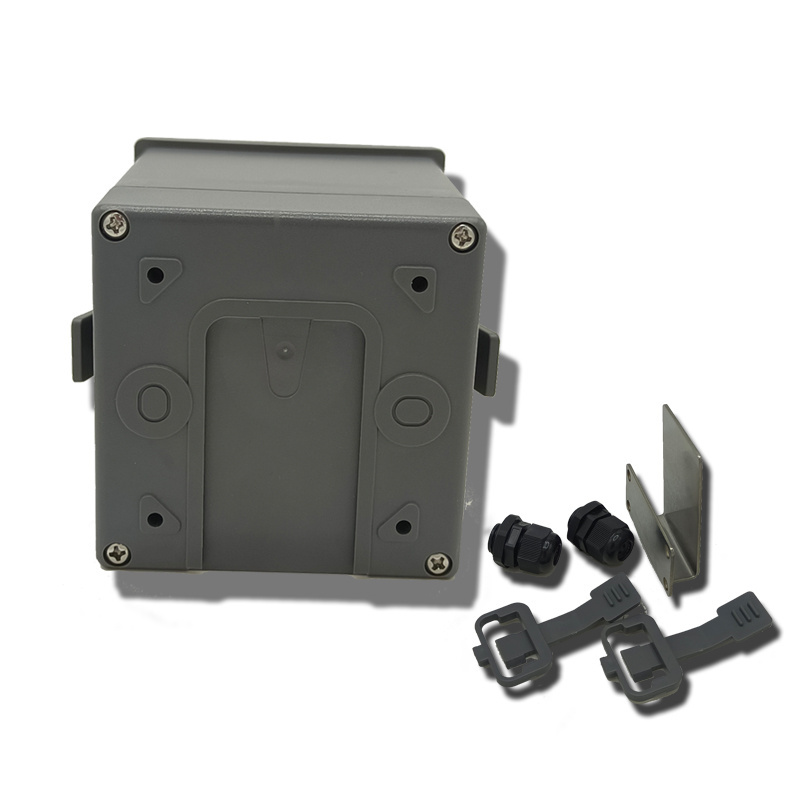

Installation mode:
|
panel, wall hanging, pipe type;
|
|
Panel opening size:
|
93×93mm;
|
|
Waterproof grade:
|
IP65;
|
|
Instrument weight:
|
0.6kg;
|
|
Instrument working environment:
|
Environment temperature :-10~60ºC;
|
|
Relative humidity:
|
<=90%;In addition to the earth's magnetic field aroundno strong magnetic interference.
|
Product packaging
Application
Industrial online conductivity meter is amicroprocessor-based water quality online monitoring control instrument.
This instrument is widely used in power plants, petrochemical industry, metallurgical electronics, mining industry, paper industry, medicine, food and beverage, water treatment, modern agricultural planting and other industries. It is suitable for softening water, raw water, steam condensate water, seawater distillation and deionized water, etc. It can continuously monitorand control the conductivity, resistivity, TDS, salinity and temperature of aqueous solutions.
This instrument is widely used in power plants, petrochemical industry, metallurgical electronics, mining industry, paper industry, medicine, food and beverage, water treatment, modern agricultural planting and other industries. It is suitable for softening water, raw water, steam condensate water, seawater distillation and deionized water, etc. It can continuously monitorand control the conductivity, resistivity, TDS, salinity and temperature of aqueous solutions.
