Quick Details
-
Material:
-
Steel
-
Place of Origin:
-
Guangdong, China
-
Diemension:
-
400x430x88mm,15.8"x16.9"x3.5"
-
Board support:
-
EEB(12"x13"),CEB(12"x10.5"),ATX(12"x9.6")
-
Backplane:
-
STATIII/SAS or minisas
-
PSU support:
-
ATX power supply
-
OEM/ODM:
-
available
Quick Details
-
Application:
-
Server
-
Type:
-
Rack
-
Form Factor:
-
ATX
-
Material:
-
Steel
-
Place of Origin:
-
Guangdong, China
-
Diemension:
-
400x430x88mm,15.8"x16.9"x3.5"
-
Board support:
-
EEB(12"x13"),CEB(12"x10.5"),ATX(12"x9.6")
-
Backplane:
-
STATIII/SAS or minisas
-
PSU support:
-
ATX power supply
-
OEM/ODM:
-
available

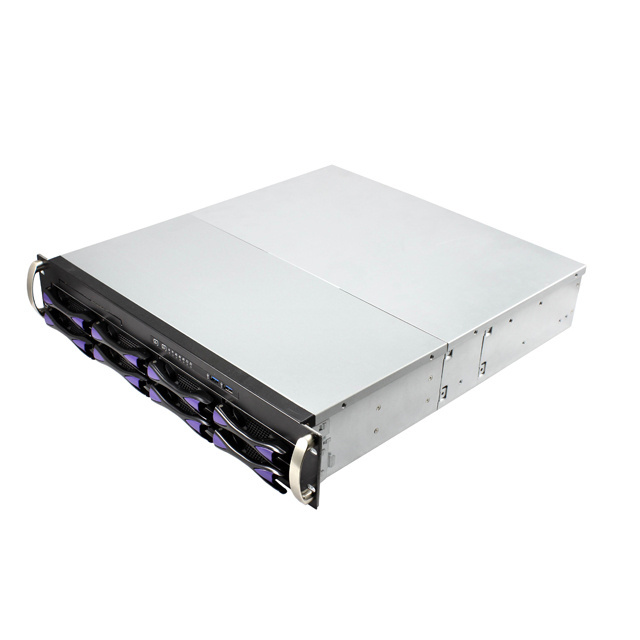

ED208H48 server case with USB 3.0 2u server chassis with 8 bays fire wall
|
Order model |
ED208H48 |
|
Material |
metal material:SGCC,thickness:1.2mm,other:ABS |
|
M/B support |
(6.7"x6.7") |
|
PSU support |
|
|
Processor Support |
DP Xeon(Intel),DP Opteron(AMD),Core(Intel) |
|
Dimensions |
L x W x H 480x430x88 ( mm ) ,18.9"x16.9"x3.5" ( inch ) |
|
Drive Bays |
External: front Hot-swap 8x3.5"HDD, 1xSlim-DVD;internal:front 2x2.5"HDD |
|
Backplane |
Backplane with sata or minisas ports x2,support SATA or SAS hard disk. |
|
System Cooling |
Middle 4 x 8025 mm PWN |
|
expansion slot |
vertical type x7 ,vertical type x4(ATX) or horizontal type x3 |
|
front pannel |
front control:power on/off,system reset,indicator:power LED,HDD Activity LED,LAN Activity LED,Failure LED |
|
indicator light :power(x1),HDD(x1),LAN NIC(x3),ALARM(x2) |
|
|
USB: 3.0 x2 |
|
|
Rear window |
compatible with PSU(one of the three or according to customer needs) |
|
Weight |
N.W:8.8kg G.W:10kg(single carton) +1.5(double carton) |
|
carton size |
665mm(L)x550mm(W)x110mm(H) |
|
Packing contain |
chassis x1 |
|
backplane x2 |
|
|
fan x4 |
|
|
display&switch&USB cables x1 |
|
|
parts pack x1 |
|
|
others |
3 types of HDD trays for choice (choose one of the three) |
1 1.two types of backplane for choice,mini sas backplane or sata backplane.
2.making rear window according to your need.
we make rear window which is compatible with ATX psu
below photo for your reference:
3. about HDD tray ,we have 3 types.but usually to type A:
About ED208H series : Model ED208H48 ,ED208H55,ED208H65 :
Difference of three models:
1.Depth
ED208H48 :depth 480mm.
ED208H55: depth 550mm.
ED208H65:depth 650mm.
2.main board support
depth:480mm,support mainboard:(6.7"x6.7")
depth:550mm,support main board: (12"x9.6")(9.6"x9.6")(6.7"x6.7")
depth:650mm,support main board:(12"x13")(12"x10.5")(12"x9.6")(9.6"x9.6")(6.7"x6.7")
3.PSU support
depth:480mm,ATX single psu
depth:550mm,1U or 2U single standard psu/ATX single psu
depth:650mm,1U or 2U single standard psu/ATX single psu/1U or 2U redundant 1+1 PSU
(the others are the same.)
We also have another 6 types of business modes,
1,servers case + power + other parts
2, server case + power + motherboards + other parts
3,server case + power + motherboards + OS + other parts
4,whole server + OS
5, whole server + OS + cabinet +KVM + PDU + UPS + Cool air
6, Whole data center
We can also provide OEM/ODM products,
if you have any customized requirements,
we'll try our best to find a suitable solution for you.
1) What is minimum quantity for your products?
1pcs
2) What is advantage for your products?
Good quality, attractive price, punctual delivery
