Quick Details
-
Temperature Type:
-
Adjustable
-
Warranty:
-
1 years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KEQIRUI
-
Model Number:
-
BSD-3533700
-
BSD-3533700:
-
BSD-3533700
-
Product name:
-
hot melt glue gun
-
RTD:
-
PT100/K Type /NI120
-
Valve nozzle selection:
-
Adjustable
-
Adhesive interface:
-
5/16,5/8,3/4
-
Gluing method:
-
Spray strip, spray point
-
Output Time adjustment:
-
2 s
-
Output frequency:
-
3-5 (times/min)
-
Minimum output:
-
1ml
Quick Details
-
Application:
-
Not Rated
-
Voltage:
-
220V/50HZ, customize
-
Glue stick Diameter:
-
5/16IN, 5/8in, 3/4in
-
Temperature Type:
-
Adjustable
-
Warranty:
-
1 years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KEQIRUI
-
Model Number:
-
BSD-3533700
-
BSD-3533700:
-
BSD-3533700
-
Product name:
-
hot melt glue gun
-
RTD:
-
PT100/K Type /NI120
-
Valve nozzle selection:
-
Adjustable
-
Adhesive interface:
-
5/16,5/8,3/4
-
Gluing method:
-
Spray strip, spray point
-
Output Time adjustment:
-
2 s
-
Output frequency:
-
3-5 (times/min)
-
Minimum output:
-
1ml
Application:
It is commonly used in the carton sealing and filtration industry to spray the product on the product, the glue is fast, and the
whole process is controlled by automatic glue gun.
1. Packaging industry: honeycomb paperboard products, boxes, beverage tubes, etc.; packaging materials: adhesive tapes, tapes,
etc.;
2. Filter industry: Paste without separator air filter.
3, the most commonly used is the carton packaging, intermittently spray 2 strips of glue before the carton is closed, covering the
paper with a strong pressure for a few minutes.

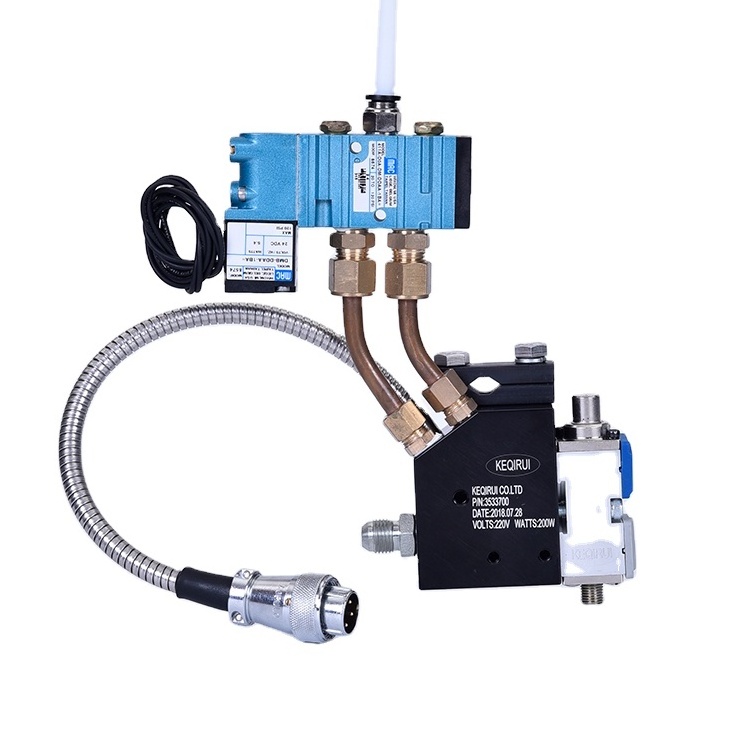

The thimble and the rubber outlet of the hot melt adhesive dispensing gun of Kozirui are mechanically sealed, and the contact part
is made of high-precision grinding and is sensitive, completely eliminating the leakage phenomenon of the glue. And to ensure the
use of high strength and long life.
Features:
1. Automatic glue gun can be equipped with nozzles such as 0.2mm, 0.25mm, 0.3mm, 0.35mm, 0.4mm, 0.45mm, 0.5mm, 0.6mm, 0.7mm, 1.0mm
and other various specifications according to production needs;
2. When disassembling the rubber valve body or replacing the nozzle, it is necessary to disassemble the rubber gun in the case of
preheating;
3. It is recommended to install a pressure regulating valve on the air inlet of the solenoid valve to adjust the gas to ensure the
gas pressure of the glue gun is stable to ensure uniformity of the glue;
4. The double-nozzle glue gun only needs to be fixed at the station during the installation process. The electric eye of the
product is tested to give a signal to the solenoid valve to control the glue gun
It is commonly used in the carton sealing and filtration industry to spray the product on the product, the glue is fast, and the
whole process is controlled by automatic glue gun.
1. Packaging industry: honeycomb paperboard products, boxes, beverage tubes, etc.; packaging materials: adhesive tapes, tapes,
etc.;
2. Filter industry: Paste without separator air filter.
3, the most commonly used is the carton packaging, intermittently spray 2 strips of glue before the carton is closed, covering the
paper with a strong pressure for a few minutes.
The thimble and the rubber outlet of the hot melt adhesive dispensing gun of Kozirui are mechanically sealed, and the contact part
is made of high-precision grinding and is sensitive, completely eliminating the leakage phenomenon of the glue. And to ensure the
use of high strength and long life.
Features:
1. Automatic glue gun can be equipped with nozzles such as 0.2mm, 0.25mm, 0.3mm, 0.35mm, 0.4mm, 0.45mm, 0.5mm, 0.6mm, 0.7mm, 1.0mm
and other various specifications according to production needs;
2. When disassembling the rubber valve body or replacing the nozzle, it is necessary to disassemble the rubber gun in the case of
preheating;
3. It is recommended to install a pressure regulating valve on the air inlet of the solenoid valve to adjust the gas to ensure the
gas pressure of the glue gun is stable to ensure uniformity of the glue;
4. The double-nozzle glue gun only needs to be fixed at the station during the installation process. The electric eye of the
product is tested to give a signal to the solenoid valve to control the glue gun
|
Components
|
Note
|
Valve nozzle selection
|
|
The complete set includes a valve,socket screw, O-ring, and replacement with these accessories
|
The melter should be turned off during replacement installation and gloves should be worn in accordance with safety
regulations to avoid burns. |
single hole down straight nozzle, down double or triple hole angle nozzle, 45° side single hole double hole nozzle, 90° side
single hole double hole nozzle, etc. |
