Quick Details
-
Color Temperature(CCT):
-
White: 3910-4260; Warm white :2860-3080
-
CRI (Ra>):
-
70
-
Input Voltage(V):
-
DC24C
-
Lamp Luminous Flux(lm):
-
White:1600; Warm white: 1500
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-40 - 60
-
Item Type:
-
Light Strips
-
Emitting Color:
-
Changeable
-
Product Name:
-
Samsung SMD5730 led right strip
-
LED Quantity:
-
60pcs/meter
-
PCB Color:
-
White PCB
-
Pixel pitch (mm):
-
16.6mm
-
Size:
-
1000*12mm
-
Connector:
-
3 Pin connects
-
IP Rating:
-
IP20, IP67
-
LED Signal::
-
SPI
-
Beam angle:
-
120 degree
-
Warranty:
-
3 years
-
LED Light Source:
-
Samsung Smd5730
-
Lamp Power:
-
16±1W
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
IPixel LED
-
Model Number:
-
B605730V24
-
Color Temperature(CCT):
-
White: 3910-4260; Warm white :2860-3080
-
CRI (Ra>):
-
70
-
Input Voltage(V):
-
DC24C
-
Lamp Luminous Flux(lm):
-
White:1600; Warm white: 1500
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-40 - 60
-
Item Type:
-
Light Strips
-
Emitting Color:
-
Changeable
-
Product Name:
-
Samsung SMD5730 led right strip
-
LED Quantity:
-
60pcs/meter
-
PCB Color:
-
White PCB
-
Pixel pitch (mm):
-
16.6mm
-
Size:
-
1000*12mm
-
Connector:
-
3 Pin connects
-
IP Rating:
-
IP20, IP67
-
LED Signal::
-
SPI
-
Beam angle:
-
120 degree
-
Warranty:
-
3 years
-
LED Light Source:
-
Samsung Smd5730
-
Lamp Power:
-
16±1W

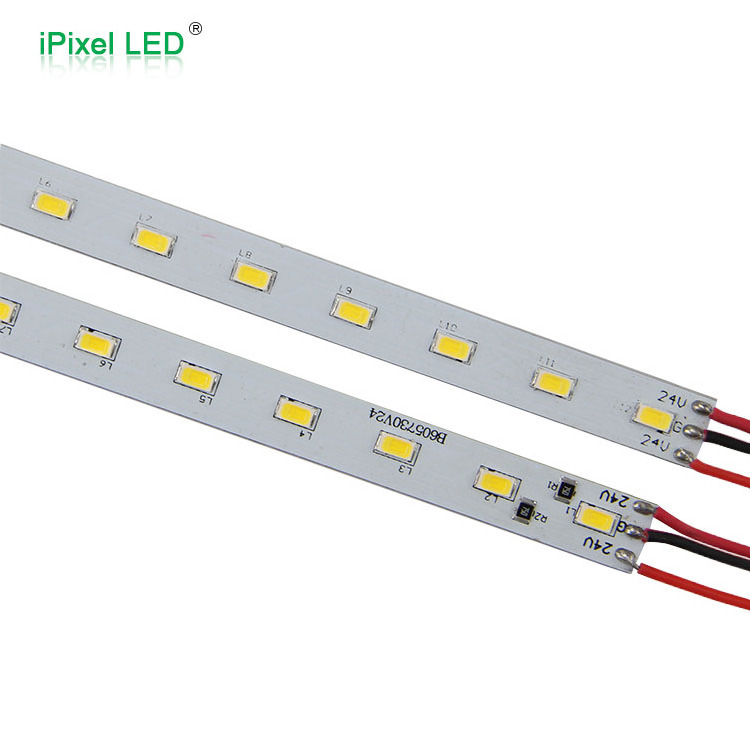

Commercial bar led rigid strip 5730 16W DC24V rigid led light bar
1. This is a regular aluminum light bar with aluminum PCB back lighting
2. Milky white & clear shell on top of the bar
3.
DC24V,16W/m
,
we used 60pcs high brightness
Samsung SMD 5730
LED
4.
Waterproof IP67
and
Non-waterproof version
available
5. Cutable every 20cm
6. Each bar attached 2 pcs metal holder for installation use
| Product Name | Samsung SMD5730 led right strip |
| Model Number | B605730V24 |
| Voltage | DC24V input |
| Power | 16±1W |
| LED Qty | 60 leds/m |
| IC Chip | Samsung |
| Size/mm | 1000*12mm |
| PCB Width | 12mm |
| PCB Color | White |
| Connector | 3Pin connectors |
| IP Rate | IP20, IP67 |
| Warranty | 3 years |
Samsung chip SMD5730 led rigid strip, Non-waterproof
SPI signal : LED Strip+LED power supply +LED controller
DMX control : LED Strip+LED pwer supply+DMX Controller+DMX decoder
LED controller : T- series SD card controller, RF remote controller, DMX controller, Arduino (offline / PC online)
LED power suppply : Meanwell power supply (Waterproof / Non-waterproof)
Trade Terms:
1. Payment Terms:
T/T, Western Union, Ali Excrow(Credit Card, Debit Card, Bank Transfer)
2. Lead Time:
Usually we had materials in stock, regular order delivery time 1--7days after the order(PI) paid
Customized products 8--15days(Custom PCB)
3.Warranty:
3 years warranty since the data of purchase our LED products
4. Delivery Ways:
DHL, Fedex, TNT UPS, EMS door to door service, by sea, by air, etc.
