Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GOOTU
-
Model Number:
-
JSY-H2442E120
-
Input Voltage:
-
24V
-
Output Voltage:
-
220-240V
-
Output Current:
-
15.7A
-
Output Frequency:
-
50/60Hz
-
Size:
-
420*310*110MM
-
Certificate:
-
CE
-
Warranty:
-
1 Year
-
Weight:
-
10kg
-
Product name:
-
Dual Output Hybrid Solar Inverter
-
Application:
-
Solar Energy Storage System
-
Inverter type:
-
Hybrid Solar Inverter
-
Protection:
-
Short Circuit Overload Overvolt Overtemp
-
Output waveform:
-
Pure Sine Wave
-
Battery type:
-
Lead Acid / Lithium Ion Battery
-
Transfer Time:
-
10ms
-
Display:
-
LCD Display
-
Rated power:
-
4200W
-
Protection Degree:
-
IP20 (indoor Only)
Quick Details
-
Output Type:
-
Single, DUAL, One Phase
-
Type:
-
DC/DC Converters, DC/AC Inverters
-
Inverter Efficiency:
-
>95%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GOOTU
-
Model Number:
-
JSY-H2442E120
-
Input Voltage:
-
24V
-
Output Voltage:
-
220-240V
-
Output Current:
-
15.7A
-
Output Frequency:
-
50/60Hz
-
Size:
-
420*310*110MM
-
Certificate:
-
CE
-
Warranty:
-
1 Year
-
Weight:
-
10kg
-
Product name:
-
Dual Output Hybrid Solar Inverter
-
Application:
-
Solar Energy Storage System
-
Inverter type:
-
Hybrid Solar Inverter
-
Protection:
-
Short Circuit Overload Overvolt Overtemp
-
Output waveform:
-
Pure Sine Wave
-
Battery type:
-
Lead Acid / Lithium Ion Battery
-
Transfer Time:
-
10ms
-
Display:
-
LCD Display
-
Rated power:
-
4200W
-
Protection Degree:
-
IP20 (indoor Only)
Product Description
GOOTU 24V 4.2KW Dual Output Hybrid Solar Inverter

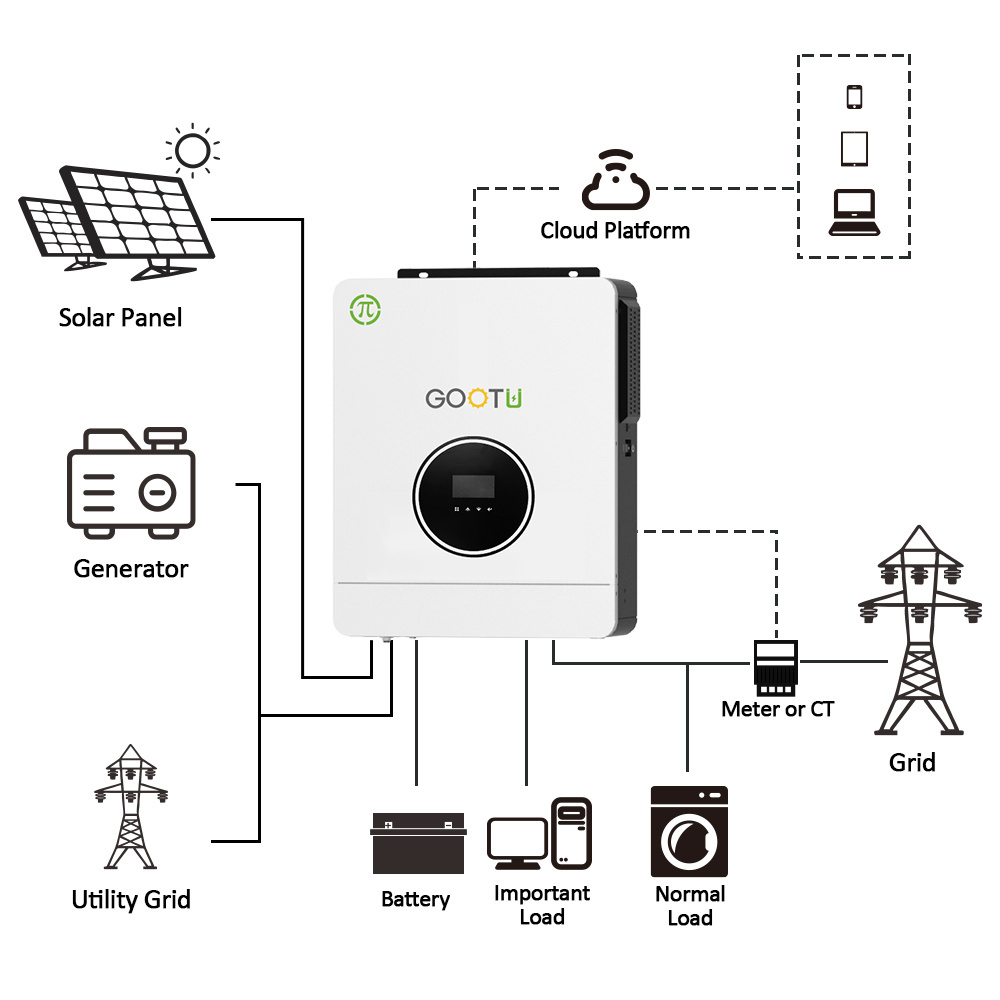

GOOTU dual output solar inverter is a type of solar inverter that has two separate AC outputs. This allows for the inverter to be used in a variety of different applications, such as powering two separate buildings or powering a home and a backup generator simultaneously. The dual output feature also allows for greater flexibility in system design, as it can be used to optimize energy production and distribution. Dual output solar inverters are commonly used in larger residential and commercial solar installations.
Data Sheet
|
MODEL
|
JSY-H2442E120
|
|
|
Maximum PV Input Power
|
6200W
|
|
|
Rated Output Power
|
4200W
|
|
|
Maximum Solar Charging Current
|
140A
|
|
|
GRID-TIE OPERATION
|
|
|
|
PV Input(DC)
|
|
|
|
Nominal DC Voltage/Maximum DC Voltage
|
360VDC/500VDC
|
|
|
Start-up Voltage/Initial Feeding Voltage
|
90VDC/120VDC
|
|
|
Maximum DC Voltage
|
60~450VDC
|
|
|
Number of MPPT Trackers/Maximum Input Current
|
1/18A
|
|
|
GRID OUTPUT(AC)
|
|
|
|
Nominal Output Voltage
|
220/230/240VAC
|
|
|
Output Voltage Range
|
195.5~253VAC
|
|
|
Nominal Output Current
|
18.2A
|
|
|
Power Factor
|
>0.99
|
|
|
Feed-inGrid Frequency Range
|
49~51±1Hz
|
|
|
EFFICIENCY
|
|
|
|
Maximum ConversionE ficiency
|
98%
|
|
|
TWO LOAD OUTPUT POWER
|
|
|
|
Full Load
|
4200W
|
|
|
Maximum Main Load
|
4200W
|
|
|
Maximum Second Load(battery mode)
|
1400W
|
|
|
Main Load Cut Off Voltage
|
26VDC
|
|
|
Main Load Return Voltage
|
27VDC
|
|
|
OFF-GRID OPERATION
|
|
|
|
AC INPUT
|
|
|
|
AC Start-up Voltage/Auto Restart Voltage
|
120-140VAC/180VAC
|
|
|
Acceptable Input Voltage Range
|
90-280VACor 170-280VAC
|
|
|
Maximum AC Input Current
|
30A
|
|
|
Nominal operating frequency
|
50/60Hz
|
|
|
BATTERY MODE OUTPUT(AC)
|
|
|
|
Nominal Output Voltage
|
220/230/240VAC
|
|
|
Output Waveform
|
Pure sine wave
|
|
|
Efficiency(DC to AC)
|
94%
|
|
|
BATTERY & CHARGER
|
|
|
|
Nominal DC Voltage
|
24VDC
|
|
|
Maximum Charging Current(Solar to AC)
|
140A
|
|
|
Maximum AC Charging Current
|
100A
|
|
|
GENERAL
|
|
|
|
PHYSICAL
|
|
|
|
Dimension，DX WxH(mm)
|
420*350*110
|
|
|
Net Weight(kgs)
|
8.5
|
|
|
INTERFACE
|
|
|
|
Communication Port
|
RS/485/RS232/WIFI/GPRS
|
|
|
ENVIRONMENT
|
|
|
|
Operating Temperature
|
-10~50℃
|
|
