Quick Details
-
Graphic Format Supported:
-
PLT, DXF
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Jinan Tianhong
-
Dimension(L*W*H):
-
4050x2270x2100mm
-
Weight (KG):
-
1600 KG
-
Product name:
-

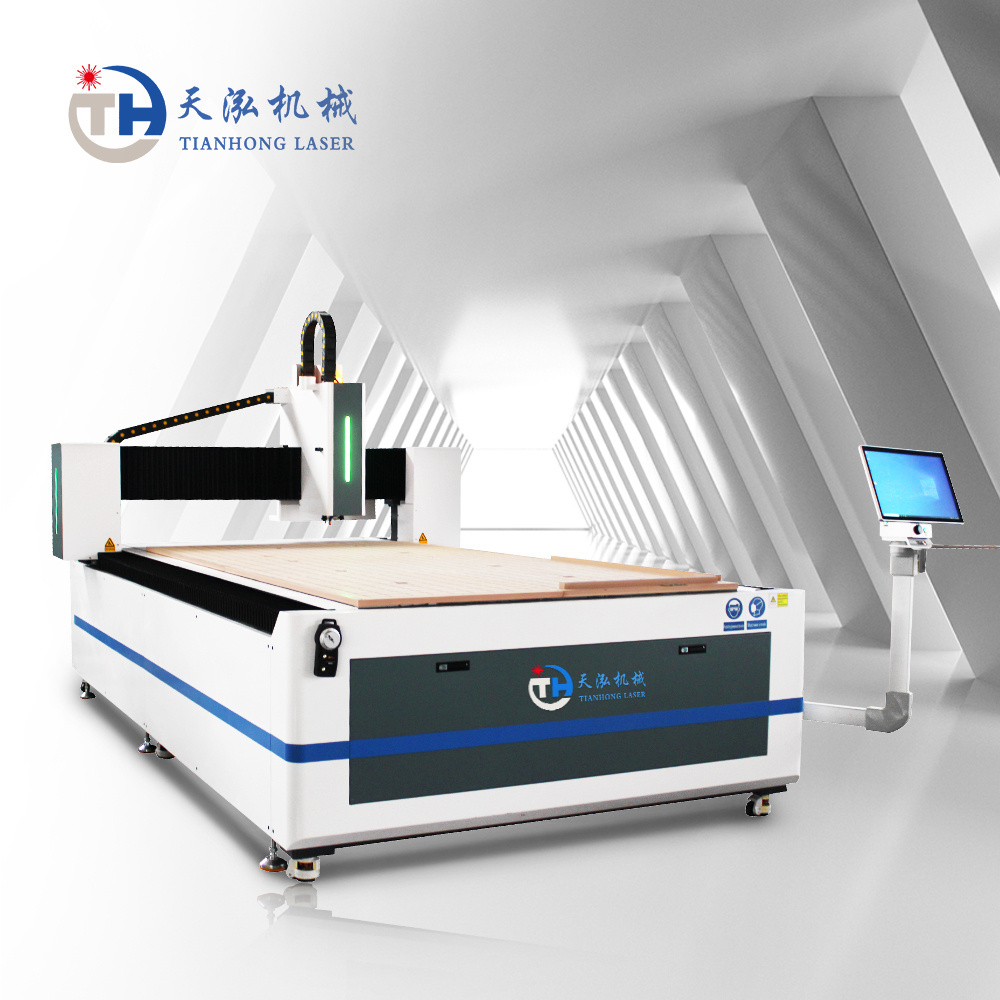

Large Size Fiber Laser Markng Machine
-
Laser Power:
-
100W/120W/200W
-
Laser source:
-
JPT/GZ Mopa/Orion
-
Working Area:
-
1300x2500mm/1500x3000mm
-
Lifespan of laser device:
-
100000hours
-
Marking Speed:
-
0-7000mm/s
-
Laser wavelength:
-
1064nm
-
Marking Depth:
-
0-1mm
Quick Details
-
Engraving Area:
-
1300*2500mm
-
Laser Type:
-
Fiber Laser
-
Engraving Speed:
-
8000-10000mm/s
-
Graphic Format Supported:
-
PLT, DXF
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Jinan Tianhong
-
Dimension(L*W*H):
-
4050x2270x2100mm
-
Weight (KG):
-
1600 KG
-
Product name:
-
Large Size Fiber Laser Markng Machine
-
Laser Power:
-
100W/120W/200W
-
Laser source:
-
JPT/GZ Mopa/Orion
-
Working Area:
-
1300x2500mm/1500x3000mm
-
Lifespan of laser device:
-
100000hours
-
Marking Speed:
-
0-7000mm/s
-
Laser wavelength:
-
1064nm
-
Marking Depth:
-
0-1mm
|
Machine Parameter Specification:
|
|
|
|
|
||||
|
Model
|
TH-1325F/TH-1530F/TH-2030F
|
|
|
|
||||
|
Working Area
|
1300*2500mm/1500*3000mm,2000*3000mm(size support customized)
|
|
|
|
||||
|
Suitable materials
|
All Metals,Sliver mirror,aluminum mirror,copper-free mirror,etc.
|
|
|
|
||||
|
Laser Source
|
Full power multi-mode anti-high-reflection type
|
|
|
|
||||
|
Wavelength
|
1064nm
|
|
|
|
||||
|
Precision
|
0.01mm
|
|
|
|
||||
|
Electronic control system
|
Taiwan MEAN WELL Brand
|
|
|
|
||||
|
Control switch
|
France Schneider Electric Brand
|
|
|
|
||||
|
Guide
|
Linear Guide(Taiwan HIWIN Brand)
|
|
|
|
||||
|
Galvo head
|
Imported high speed(Micron level accuracy,speed 12000mm/s)
|
|
|
|
||||
|
Sensor
|
Omron Brand(Japan)
|
|
|
|
||||
|
Switch
|
DELIXI Brand
|
|
|
|
||||
|
Fastener screws
|
304 stainles steel
|
|
|
|
||||
|
Electrical cable
|
Special flexible cable(Brand Changtong Cable)
|
|
|
|
||||
|
Machine structure
|
Thickened steel one-piece welded bed; high-precision machine tool grinding and milling;
|
|
|
|
||||
|
Control method
|
4 sets high precision 750w pure servo motors+Precision reducer;Double drive gantry type transmission
|
|
|
|
||||
|
Positioning tool
|
Aluminum alloy four-station positioning tools
|
|
|
|
||||
|
Cooling Type
|
Air cooled
|
|
|
|
||||
|
Control System
|
CNC 5 axis motion system (Impoted Taiwan Control System)
|
|
|
|
||||
|
Marking Format
|
DXF、PLT
|
|
|
|
||||
|
Working speed
|
0-40m/min
|
|
|
|
||||
|
Working Voltage
|
AC190-240V,50-60Hz
|
|
|
|
||||
|
Package dimension
& G.W.
|
4050x2270x2100mm
1600kgs
|
|
|
|
||||
Applicable Industries/ Applicable Materials
(1) The large-format laser marking machine is a new high-speed, high-precision mirror stripping,glass sandblasting, drilling hole equipment developed according to the needs of the current smart mirror industry; (2)This machine is not only suitable for architectural glass, automotive glass, furniture glass, craft glass, decorative glass, The paint and mirror removal process in the cabinet glass smart mirror industry is also suitable for surface marking on most plastics and stainless steel, aluminum oxide, copper and other alloy materials.
1. Our wooden case is after fumigation treatment.
2. Needn’t timber inspection,saving shipping time.
3.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.
4.Avoiding all damages that could happen in the delivery process.
Then we’ll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
5.The out most is wooden case with fixed form work.
6.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
1, Jinan Tianhong supply various CNC product such as advertising, application. Art and Craft, Organic Glass, Mould, Marking, Automobile Industry, Textile Machinery, Electronics, and so on.
2, We are specialized in providing solution for global customers with quality products and efficient services. "High Quality, Customer First" is the corporate management purpose. We have got good reputation and many agents all over the world especially in North America, European, Middle East and South Asia.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
2.After-Sales Service:
* Training how to instal the machine, training how to use the machine in our factory. We provide food and accommodation.
* Engineers available to service machinery overseas.
3.Training
*Training for normatively turning on/off operation of the machine
*Instruction of technical parameters, as well as their setting ranges
*Basic daily cleaning and maintenance for the machine
*Solutions for common hardware problems
*Training for other questions and technical suggestions during daily production
4.Training can be processed in the following ways:
*Workers of customers can come to our factory in Shandong, China to get the most professional hand-by-hand training.
*We can send engineers to customers’ country and do training for workers in customers’ target factory. However, tickets and daily consumption like food and accommodation should be afforded by customers.
*Remote training through Internet tools like Team-viewer, Skype and other instant communication softwares.
1) This is the first time I use this kind of machine, is it easy operate?
There are English manual or guide video that show how to use machine.
If there is still have any question, we can talk from Phone/WhatsApp/WeChat/Skype,etc.
2)Can you recommend a MACHINE to me,thanks.
Yes, In order to recommend you the suitable machine, please tell me the max working area, materials to do .
3) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem. we will give you 24hours service from phone and skype.
4) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you
5)Payment terms
a. T/T in advance
b. L/C is acceptiable
c.West Union for Samller Amount
d.Alibaba Trade Assurance
6)Delivery terms
Gnerally it will be be delivery within 5 working days after get the payment.
