Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
CPT
-
Model Number:
-
2517 taper bushing
-
Product Name:
-

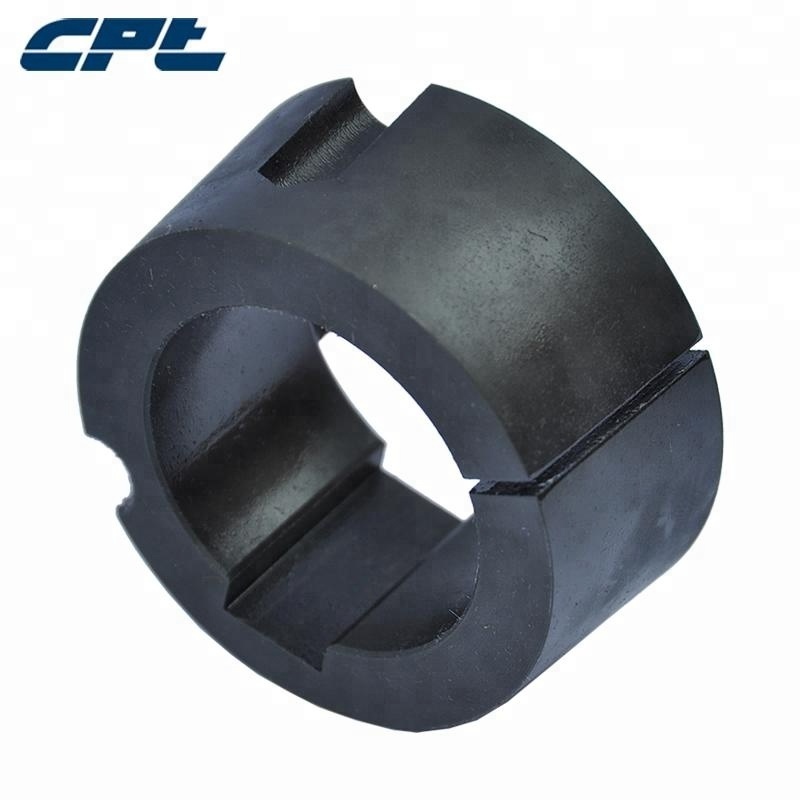

2517 taper lock bush with Two Screws
-
Transmissible torque:
-
1310 Nm
-
Screws Specification:
-
1/2-12BSW*1
-
Screws Quantity:
-
2
-
Screw tightening torque:
-
48 Nm
-
Tools for tighten:
-
Allen wrench 1/4"
-
Surface treatment:
-
Phosphated black
-
Bore Diameter (mm):
-
10 ~ 65 mm
-
Bore Diameter (in):
-
1/2" ~ 1-1/2"
-
Certification:
-
ISO 9001:2008
Quick Details
-
Applicable Industries:
-
Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Retail, Construction works , Energy & Mining
-
Type:
-
sleeve
-
Material:
-
Cast Iron GG20
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
CPT
-
Model Number:
-
2517 taper bushing
-
Product Name:
-
2517 taper lock bush with Two Screws
-
Transmissible torque:
-
1310 Nm
-
Screws Specification:
-
1/2-12BSW*1
-
Screws Quantity:
-
2
-
Screw tightening torque:
-
48 Nm
-
Tools for tighten:
-
Allen wrench 1/4"
-
Surface treatment:
-
Phosphated black
-
Bore Diameter (mm):
-
10 ~ 65 mm
-
Bore Diameter (in):
-
1/2" ~ 1-1/2"
-
Certification:
-
ISO 9001:2008
company introduction
Product Description
| CPT Taper lock bushing series | 1008, 1108, 1210, 1215, 1310, 1610, 1615, 2012, 2017, 2517, 2525, 3020, 3030, 3525, 3535, 4030, 4040, 4535, 4545, 5040, 5050, 6050, 7060, 8065 |
| Material | Cast iron GG20, Steel |
| Bore Diameter | mm and in |
| Surface Treatment | Black phosphating |
Product Structure type
Specifications
Product Name:2517 Meric bushing Specifications
Bore Diameter (Metric system)
Bore Diameter (Imperial system)
Product Feature
Certifications
Factory photos
Packaging
Our customers
FAQ
