Quick Details
-
Model Number:
-
JQX-15F/T90
-
Contact Form:
-
1Z,1H,1D,2Z,2H,2D
-
Coil Voltage:
-
DC 6~220V AC 6~380V
-
Nominal Coil Power:
-
DC2.5W AC4.0VA
-
Contact capacity:
-
30A 250VAC 2HP 250VAC
-
Terminal Type:
-
Screw
-
Contact Resistance:
-
100mΩ (1A 6VDC)
-
Contact Material:
-
AgCdo
-
Insulation Resistance:
-
≥500MΩ, 500VDC
-
Operate Time:
-
20ms /15ms
Quick Details
-
Contact Load:
-
Low Power
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Naidian
-
Model Number:
-
JQX-15F/T90
-
Contact Form:
-
1Z,1H,1D,2Z,2H,2D
-
Coil Voltage:
-
DC 6~220V AC 6~380V
-
Nominal Coil Power:
-
DC2.5W AC4.0VA
-
Contact capacity:
-
30A 250VAC 2HP 250VAC
-
Terminal Type:
-
Screw
-
Contact Resistance:
-
100mΩ (1A 6VDC)
-
Contact Material:
-
AgCdo
-
Insulation Resistance:
-
≥500MΩ, 500VDC
-
Operate Time:
-
20ms /15ms

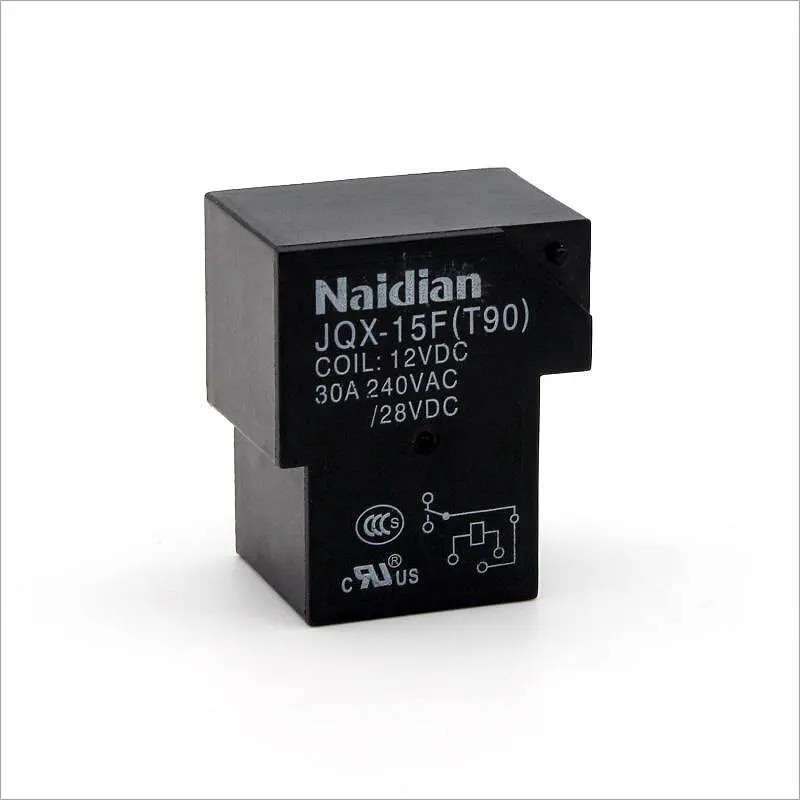

JQX-15F/T90 12v 30A electromagnetic power relay
--------- Product Show ---------
Welcome to Naidian Group Co., Ltd. Welcome to contact us
Ordering information
Specification
|
Contact Ratings |
1A 1C 1B |
|
Contact Resistance |
50 mΩ (1A 6VDC) |
|
Contact Material |
Silver Alloy |
|
Contact capacity |
1A:30 A 240 VAC /28VDC 1B:15A 240VAC/28VDC 1C:20A 240VAC/28VDC |
|
Insulation Resistance |
100MΩ, 500VDC |
|
Dielectric Strength |
Between coil and contacts 1 5 00VAC 1minute |
|
Between open contacts 1500 VAC 1minute |
|
|
Operate Time |
15 ms / 10 ms |
|
Terminal Type |
PCB |
|
Nominal Coil Power |
0.9W |
Coil Versions
Characteristic Curves
