Quick Details
-
Roll Ratio(Front/Back):
-
customized
-
Cooling Mode:
-
water cooling
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JUCAI
-
Voltage:
-
As your local need
-
Weight (KG):
-
1100 KG
-
Type:
-
Open Mixing Mill
-
roller:
-
hollow smooth roll/drilled smooth roller/hollow grooved roll
-
Nip adjustment:
-
manual / motorized/hydraulic type
-
stock guide:
-
fixed type /manually move/hydraulic move
-
safety device:
-
mechnical safety
-
gearbox:
-
hardened teeth gearbox
-
Weight:
-
about 1100 kg
Quick Details
-
Diameter of Roll(mm):
-
160 mm
-
Rotation Speed of Front Roll(rpm):
-
1 - 50 rpm
-
Length of Roll(mm):
-
320 mm
-
Roll Ratio(Front/Back):
-
customized
-
Cooling Mode:
-
water cooling
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JUCAI
-
Voltage:
-
As your local need
-
Weight (KG):
-
1100 KG
-
Type:
-
Open Mixing Mill
-
roller:
-
hollow smooth roll/drilled smooth roller/hollow grooved roll
-
Nip adjustment:
-
manual / motorized/hydraulic type
-
stock guide:
-
fixed type /manually move/hydraulic move
-
safety device:
-
mechnical safety
-
gearbox:
-
hardened teeth gearbox
-
Weight:
-
about 1100 kg
Product Application

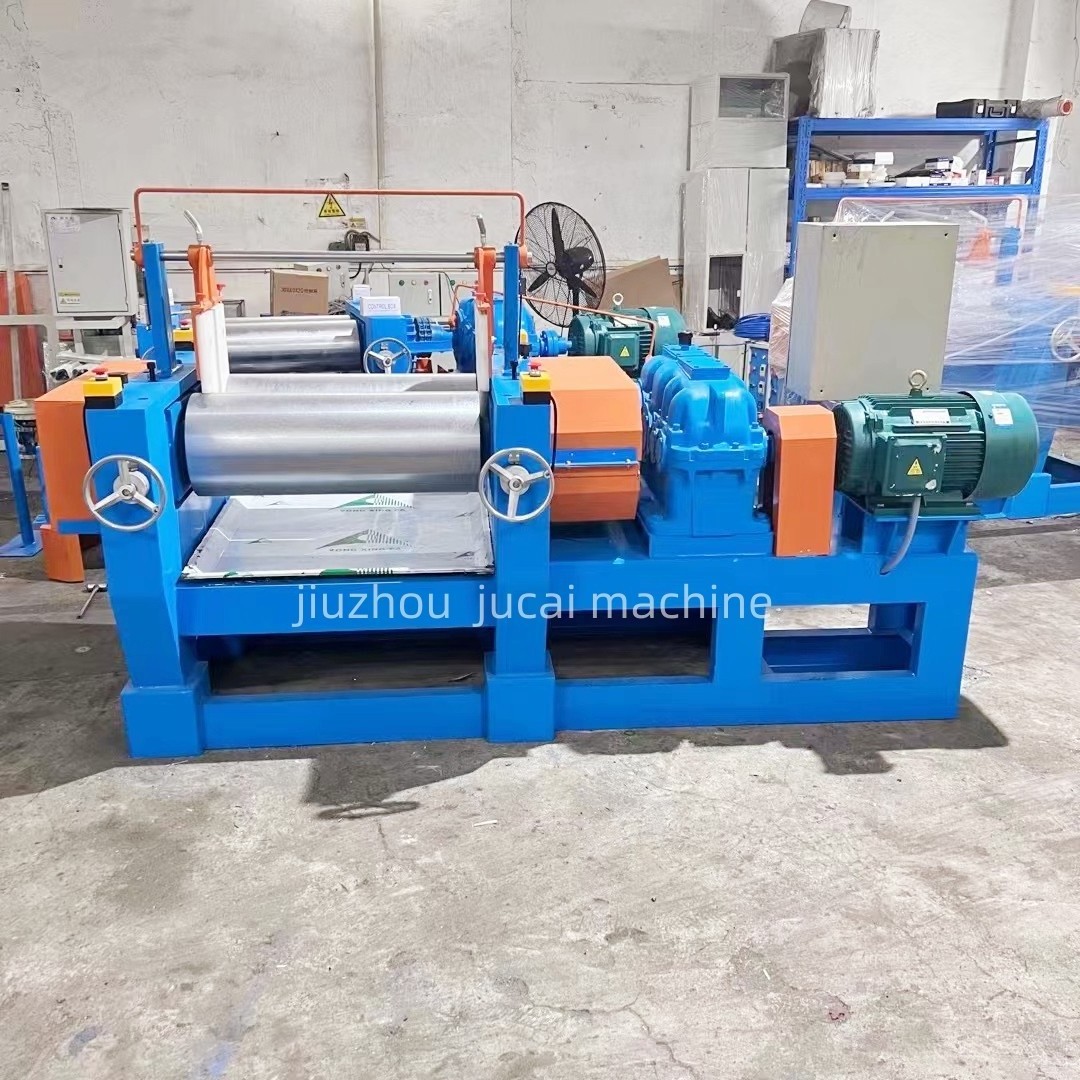

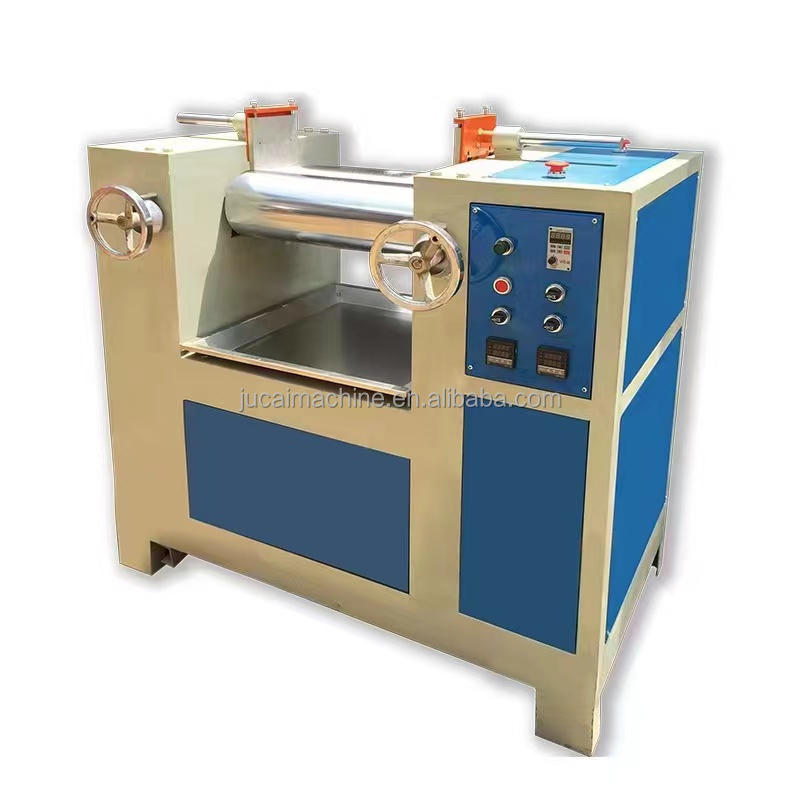

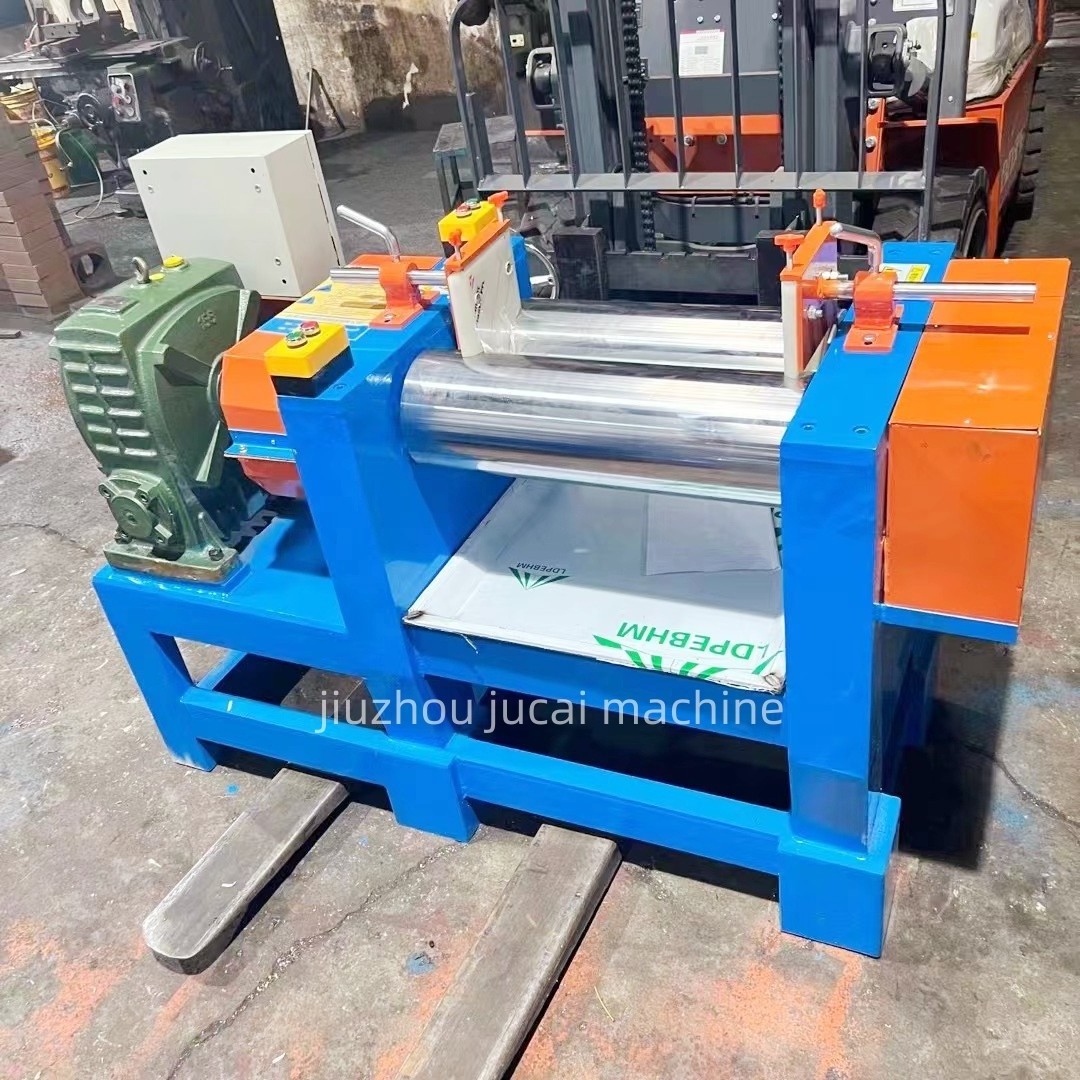

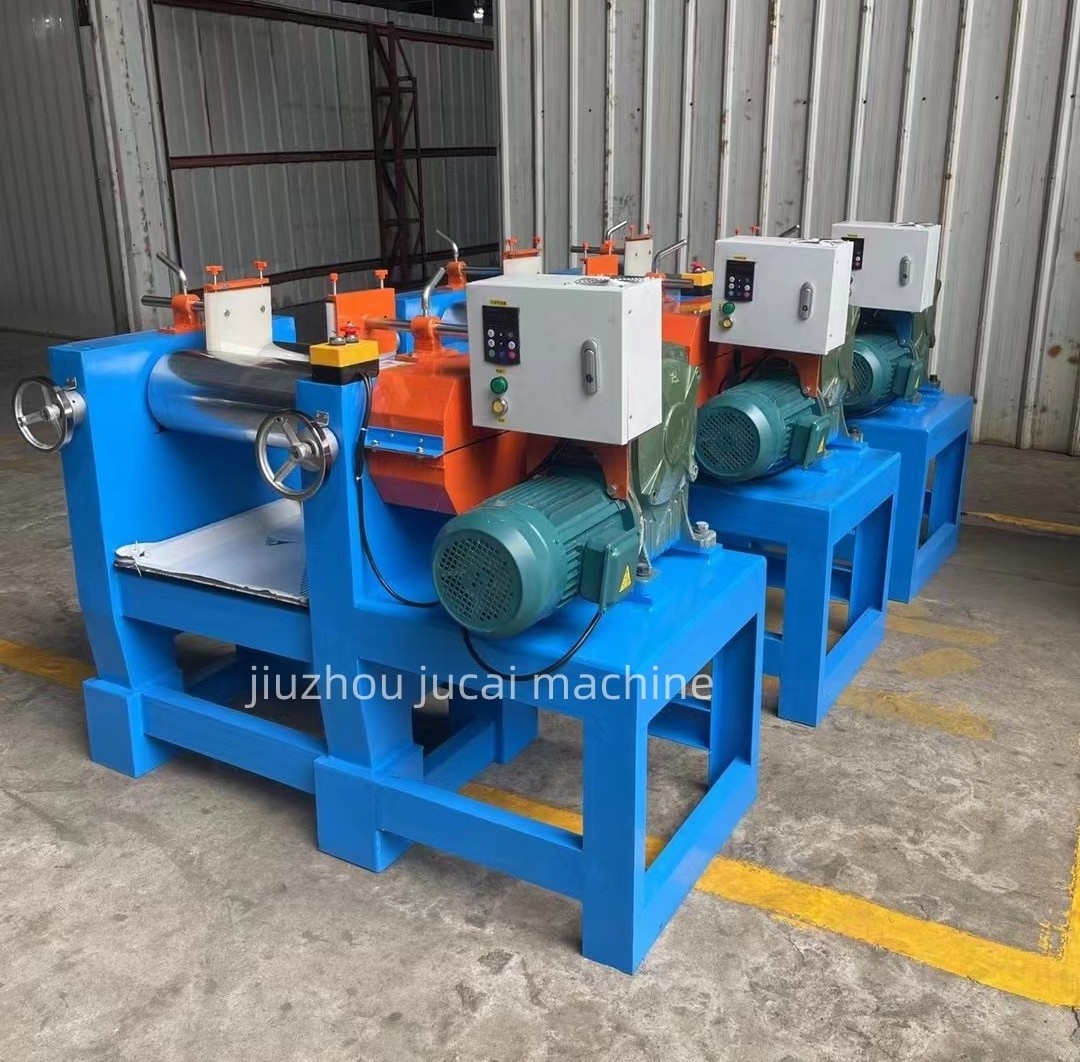

This machine mainly consists of rollers , ZQbull gearbox (except XK-160), electrical cabinet ,nylon bush transmission device , main motor , etc . It is widely used for mixing , warming and sheeting rubber , etc .
Main Features
1.The roller is made of alloy chilled cast iron .Their surfance are hard and wear resistance . Its hardness of surface is HRC68-75
2.The end of rollers are supported by the roller ball bearing bush .It has the advantages of running smoothy ,energy saving , low noise and long life
3.The roll gap adjustment is manual control type . It is simple for operation
4.The machine is equipped with overloading protection device , in order to protect the main parts from being damanged
5.The machine adopts the single drive type transmission structure . It adopts the nylon pin coupling to prevent main parts from being damanged due to the overload of transmission part
6.The base is integral type , the transmission mode is of closed transmission . so it is safe and easy for use
7.The machine is installed with the emergency button and pulling rope as the safety device
8.This machine are installed with four sets lubrication device and suitable for grease lubrication
9.The machine adopts the PLC control cabinet , the machine will be suitable for your local industrial voltage and frequency
|
Model
|
XK-160
|
XK-250
|
XK-360
|
XK-400
|
|
roller diameter
|
160
|
250
|
360
|
400
|
|
roller length
|
320
|
620
|
900mm
|
1000
|
|
front roll linear speed
|
9
|
15.1
|
16.25
|
18.65
|
|
friction ratio
|
1:1.35
|
1:1.1
|
1:1.25
|
1:1.27
|
|
batch capacity
|
1-2
|
10-15
|
20-25
|
18-35
|
|
driving motor
|
5.5
|
18.5
|
30
|
37
|
|
machine size
|
1380*860*1320
|
3400*1350*1500
|
3940*1780*1740
|
4200*1850*1870
|
|
weight
|
1000 kg
|
3500 kg
|
5600
|
7600
|
|
model
|
XK-450
|
XK-550
|
XK-560
|
|
roller diameter
|
450mm
|
550mm
|
560/510mm
|
|
roller working length
|
1200mm
|
1500
|
1500
|
|
front roll linear speed
|
24.5
|
27.94
|
27.87
|
|
frictio ratio of roller
|
1:1.27
|
1:1.22
|
1:1.2
|
|
motor
|
55
|
110
|
90
|
|
Batch capacity
|
25-50
|
50-60
|
50-60
|
|
machine size
|
5200*2380*1770
|
5900*2680*2080
|
6500*2300*2000
|
|
machine weight
|
about 12000 kg
|
27000 kg
|
19500 kg
|
