Quick Details
-
Type:
-
Thermoelectric genenrators
-
Product name:
-
Thermoelectric generators
-
Size:
-
62*62*4.8 mm
-
Open Voltage:
-
8.4V
-
Matched Load Output Voltage:
-
4.2 V
-
Martched Load Resitance:
-
0.57 ohm
-
Martched Load Output Current:
-
7.29A
-
Martched Load Output Power:
-
30.6W
-
Warranty:
-
1 Year
-
Application:
-
Stove Fans
-
Delivery Time:
-
10-14 days
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
wellentech
-
Model Number:
-
TEG-10-6230
-
Type:
-
Thermoelectric genenrators
-
Product name:
-
Thermoelectric generators
-
Size:
-
62*62*4.8 mm
-
Open Voltage:
-
8.4V
-
Matched Load Output Voltage:
-
4.2 V
-
Martched Load Resitance:
-
0.57 ohm
-
Martched Load Output Current:
-
7.29A
-
Martched Load Output Power:
-
30.6W
-
Warranty:
-
1 Year
-
Application:
-
Stove Fans
-
Delivery Time:
-
10-14 days
Related Products
Specification
( Output @ T cold 27℃ T hot 200℃ under match load condition )
|
Open Circuit Voltage
|
8.4V
|
|
|
Martched Load Resitance
|
0.57ohm
|
|
|
Martched Output Voltage
|
4.2 V
|
RoHS Compliant
|
|
Martched Output Current
|
7.29 A
|
Ceramic Material :Al2O3 96%
|
|
Output Power
|
30.6 W
|
Soldering temp.: 238 degree
|
|
AC Resistance at 27 ℃
|
0.43 ohm
|
Flatness/Parallelism:+/-0.05
|
Products Show
Wellen Technology Co.,Ltd.
Specialized in thermoelectric modules production for more than 20 years
Thermoelectric Power Generator
Thermoelectric Power Generator

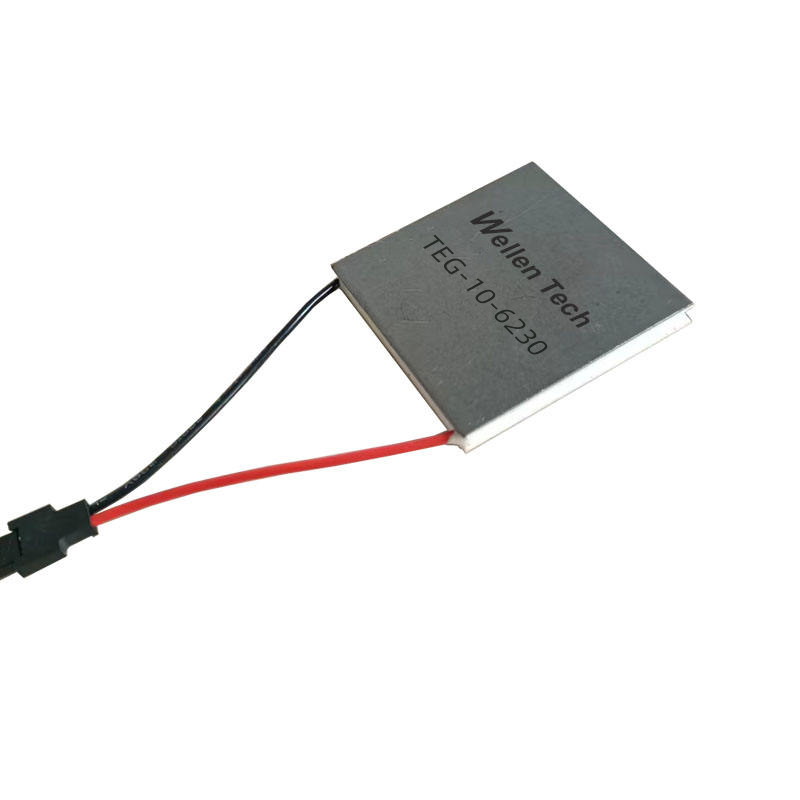

TEG-10-6230
The power module is designed and manufactured by Wellentech unique technology for converting heat source directly into electricity. The module is Bi-Te based thermoelectric module that can work at the temperature of as high as 200 ℃ heat source continuously. The thermoelectric module will generate DC electricity as long as there is a temperature difference across the module. The more power will be generated when the temperature difference across the module becomes larger.
Custom design is acceptable .(Wellen Tech
www.wellentech.com
)
All products are RoHS ans REACH compliant,SGS ISO9001 certified.
Products List
|
Part NO.
|
Cold side temp.
|
Hot side temp.
|
Open Circuit Voltage
|
Martched Load Resitance
|
Martched Load Output Voltage
|
Martched Load Output Current
|
Martched Load Output Power
|
AC resistance
|
|
TEG-10-3003
|
27
|
200
|
8.4
|
5.3
|
4.2
|
0.8
|
3.3
|
3.9
|
|
TEG-10-3004
|
27
|
200
|
8.4
|
4.0
|
4.2
|
1.0
|
4.4
|
3.0
|
|
TEG-10-3005
|
27
|
200
|
8.4
|
3.2
|
4.2
|
1.3
|
5.5
|
2.5
|
|
TEG-10-4004
|
27
|
200
|
8.4
|
4.0
|
4.2
|
1.1
|
4.4
|
3.0
|
|
TEG-10-4006
|
27
|
200
|
8.4
|
2.9
|
4.2
|
1.5
|
6.1
|
2.1
|
|
TEG-10-4008
|
27
|
200
|
8.4
|
2.2
|
4.2
|
1.9
|
8.2
|
1.6
|
|
TEG-10-4010
|
27
|
200
|
8.4
|
1.7
|
4.2
|
2.4
|
10.2
|
1.3
|
|
TEG-10-5015
|
27
|
200
|
8.4
|
1.2
|
4.2
|
3.6
|
15.3
|
0.9
|
|
TEG-10-5018
|
27
|
200
|
8.4
|
1.0
|
4.2
|
4.4
|
18.4
|
0.7
|
|
TEG-10-6226
|
27
|
200
|
8.4
|
0.7
|
4.2
|
6.3
|
26.5
|
0.5
|
|
TEG-10-6230
|
27
|
200
|
8.4
|
0.6
|
4.2
|
7.3
|
30.6
|
0.4
|
|
TEG-08-4004
|
27
|
200
|
10.7
|
5.5
|
5.3
|
1.0
|
5.2
|
4.1
|
|
TEG-08-4006
|
27
|
200
|
10.7
|
3.7
|
5.3
|
1.5
|
7.8
|
2.7
|
|
TEG-08-4008
|
27
|
200
|
10.7
|
2.7
|
5.3
|
2.0
|
10.4
|
2.0
|
|
TEG-19-4003
|
27
|
200
|
13.2
|
9.0
|
6.6
|
0.7
|
4.8
|
6.7
|
|
TEG-19-4006
|
27
|
200
|
13.2
|
4.5
|
6.6
|
1.5
|
9.7
|
3.4
|
|
TEG-19-5008
|
27
|
200
|
13.2
|
3.4
|
6.6
|
2.0
|
12.9
|
2.5
|
|
TEG-19-4008
|
27
|
200
|
13.2
|
3.4
|
6.6
|
2.0
|
12.9
|
2.5
|
|
TEG-19-4010
|
27
|
200
|
13.2
|
2.7
|
6.6
|
2.4
|
16.1
|
2.0
|
|
TEG-07-4004
|
27
|
200
|
16.0
|
8.2
|
8.0
|
1.0
|
7.8
|
6.1
|
|
TEG-07-4006
|
27
|
200
|
16.0
|
5.5
|
8.0
|
1.5
|
11.7
|
4.1
|
|
TEG-07-5007
|
27
|
200
|
16.0
|
4.7
|
8.0
|
1.7
|
13.6
|
3.5
|
|
TEG-07-5507
|
27
|
200
|
16.0
|
4.7
|
8.0
|
1.7
|
13.6
|
3.5
|
|
TEG-07-5508
|
27
|
200
|
16.0
|
4.1
|
8.0
|
2.0
|
15.6
|
3.0
|
|
TEG-07-5510
|
27
|
200
|
16.0
|
3.3
|
8.0
|
2.4
|
19.5
|
2.4
|
|
TEG-07-5515
|
27
|
200
|
16.0
|
2.2
|
8.0
|
3.7
|
29.2
|
1.6
|
|
TEG-11-5008
|
27
|
200
|
17.5
|
4.5
|
8.7
|
2.0
|
17.0
|
3.3
|
|
TEG-17-5004
|
27
|
200
|
19.1
|
9.8
|
9.5
|
1.0
|
9.3
|
7.3
|
