The rice milling equipment has such advantages of
Compact structure,easy operation,convenient Maintenance,large production and high rice precision . The rice mill machine output is 1000kg per hour
.If you can keep the stable input voltage , 12-15% moisture of paddy , it can works best . Our rice milling equipment provides higher yields, less brokens, better taste and presentation, lower operating costs and most importantly higher profitability for the miller.
- Product Details
- {{item.text}}
Quick Details
-
Power:
-
43kw, 43kw
-
Weight:
-
1500 KG, 1500kg
-
Dimension(L*W*H):
-
4000*3000*3200mm
-
Model:
-
UDNM-20
-
Capacity:
-
900-1000kg/h
-
Rice milling rate:
-
70-75%
-
Dimension:
-
4000*3000*3200mm
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
UD
-
Voltage:
-
380v, 380V
-
Power:
-
43kw, 43kw
-
Weight:
-
1500 KG, 1500kg
-
Dimension(L*W*H):
-
4000*3000*3200mm
-
Model:
-
UDNM-20
-
Capacity:
-
900-1000kg/h
-
Rice milling rate:
-
70-75%
-
Dimension:
-
4000*3000*3200mm
Finished product display
Technical parameters
|
Model
|
UDNM-20
|
|
Capacity
|
900-1000kg/h
|
|
Rice milling rate
|
70-75%
|
|
Power
|
43kw
|
|
Weight
|
1500kg
|
|
Dimension
|
4000*
3000*
3200
mm
|
|
Voltage
|
380V
|
Product introduction

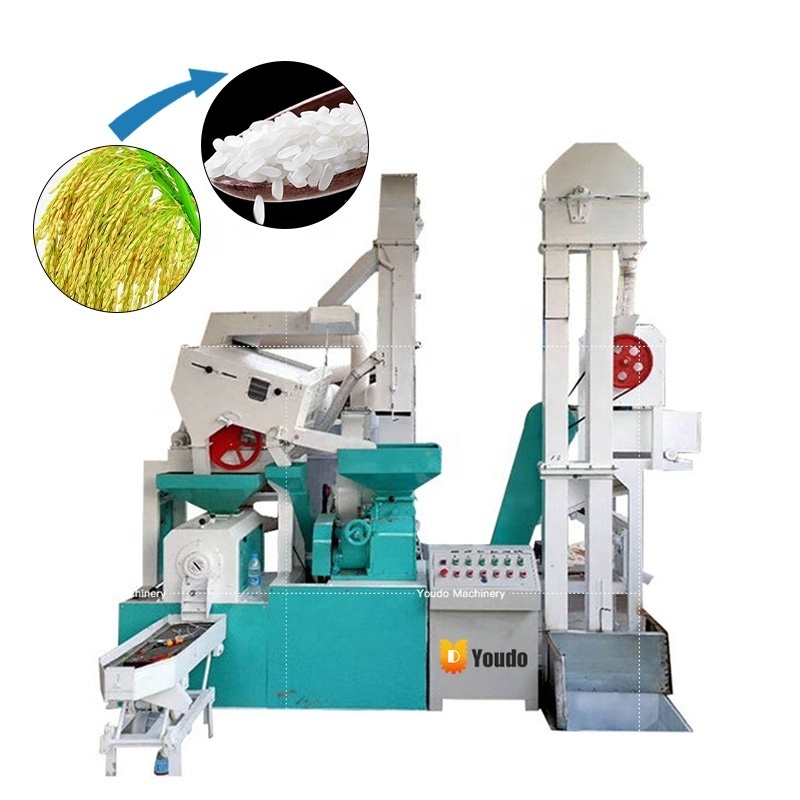

800-1000kg/h Combined Rice Milling Machine
The combined rice mill is
composed of a roller screen stone remover, an eight-inch rubber roller sheller, a five-layer coarse grain separator, a rice whitener and elevators.
Easy operation, convenient maintenance and high productivity, reducing the leftovers at the maximum level
; with direct optional brown rice outlet, provides users with a flexible multifunctional rice milling solution. At the meantime, we reserved the possibility to match the follow up equipment such as multi-layer rice grader, rice polisher, color sorter etc., to improve the milling performance or extending its functions
Machine Structure
1. Feed hopper
2. Three-layer drum screen stone removing machine : remove the stone
3. Single Elevator
4. Double Elevator
5.Rice huller machine: remove the rice husk.
6. Gravity paddy separator : classify the impurity and rice.
7. Rice mill machine
8.Screening mesh machine: remove the broken-rice, get the good rice.
2. Three-layer drum screen stone removing machine : remove the stone
3. Single Elevator
4. Double Elevator
5.Rice huller machine: remove the rice husk.
6. Gravity paddy separator : classify the impurity and rice.
7. Rice mill machine
8.Screening mesh machine: remove the broken-rice, get the good rice.
Three-layer drum screen stone removing machine
The stone removal machine
adopts a large air volume suction design,which has large air volume,good stone removal effect, simple adjustment, stable operation and fast processing speed.
Rice huller machine
The grain hulling machine integrates the variable-direction gearbox and the mobile tight-roller device, which
avoids the problem of the coordination and cooperation of the swing gears
;the one-time shell breakage rate in normaloperation exceeds 90%
Screening mesh machine
Screening machine,
screening broken rice to get good rice, simple and fast, firm body, long service life.
This machine has good stability and can run for a long time. Low energy consumption, high efficiency, and can be used for automatic operation in the assembly line.
Five layer gravity rice separator
The gravity grain separation screen of this machine
adopts a new type of convex structure on the screen surface, which can start, finish and finish quickly
.Solve the problem that it took too long to start upand close in the past.
The electronic control system
The electronic control system
adopts the weak point to start with high safety, and the protection switch can prevent the operation error from burning the motor
.With the ammeter, the machine load can be monitored in real time.
The rice whitening machine
The rice whitening machine
adopts a large-diameter hollow spindle and innovates the design of "emery roller whitening";
strong pulling fan, low rice temperature, clean rice ,
effectively improve the gloss of rice and reduce the breakage rate of rice.
Product advantages
Advantage 1:
Adopt "humanized" design, reduce the height of gravity screen and rice hulling machine
, make the
processing process clear at a glance, no matter dry or wetrice can be processed normally during processing
Adwantage 2
The operation is simple during normal processing, and there is no excessive switch adjustment
.The brown rice and the paddy are automatically separated clearly, and the milled rice does not contain paddy.
Production process
Llifting--removing stone--husking rice--lifting--separating brown rice and paddy-- whitening rice--separate broken rice
Product real photo
After Sales Service
Quality assurance
We have always focused on research and development because they are the key to our corporate innovation. They make us do better in production, technical service and marketing.
We provide high-quality machines and professional after-sales service.
Our goal is to maximize customer satisfaction and value. We usually provide 1 year warranty and free common accessories.
assured.When disassembling, we will paste the corresponding label on each part, and provide multi-language installation video and instruction manual. Customer satisfaction is our aim.
We provide high-quality machines and professional after-sales service.
Our goal is to maximize customer satisfaction and value. We usually provide 1 year warranty and free common accessories.
We promise that our products are brand new and have not been used. They are made of corresponding materials and adopted a new design.
The quality, specifications, and functions are in compliance with the contract requirements.
We promise that the products produced on this production line can be stored for one year without any additives.
The quality, specifications, and functions are in compliance with the contract requirements.
We promise that the products produced on this production line can be stored for one year without any additives.
Test and teardown
We will take the initiative to test the operation of the machine when it is completed, and take videos to let customers rest
assured.When disassembling, we will paste the corresponding label on each part, and provide multi-language installation video and instruction manual. Customer satisfaction is our aim.
Package
We will wrap the machine with film to avoid damp and scattered during transportation, and thicken the export wooden box to surround the machine to protect the machine from impact and friction. The size depends on the machine.
Transportation
We can provide multiple channels of transportation. We guarantee that the freight forwarders we use have more than 5 years of cooperation history, provide you with fast timeliness and economic prices, and ensure the safety and integrity of your machines.
Installation and commissioning
After the equipment arrives at the customer's workshop, please arrange the equipment in accordance with the floor plan drawn up by us. During the epidemic, we can use online videos or video tutorials to guide debugging.
After the epidemic is over, we can also arrange professional engineers to your factory. You need to provide our engineers' round-trip air tickets and accommodation, as well as salary.
company information
Youdo machinery
is a factory with 10 years experience in machinery production and foreign trade.
In the past ten years, we have helped friends from 152 countries to start their businesses. With our support, 1,230 friends have made their business bigger and bigger and ranked among the forefront of the industry.
We have received after-sales praise from more than 10,000 friends, we strictly control the quality of our products, and have
long-term cooperation with 127 large foreign companies based on the principle of mutual benefit.
In the past ten years, we have helped friends from 152 countries to start their businesses. With our support, 1,230 friends have made their business bigger and bigger and ranked among the forefront of the industry.
We have received after-sales praise from more than 10,000 friends, we strictly control the quality of our products, and have
long-term cooperation with 127 large foreign companies based on the principle of mutual benefit.
Our service tenet is:
Choosing us makes you rich.
Finding us means that you will find a one-stop solution to your needs.
Choose us to start your business development journey, please let me grow with you, my friend.
Finding us means that you will find a one-stop solution to your needs.
Choose us to start your business development journey, please let me grow with you, my friend.
Certificate display
Packing & Delivery
Why Choose Us
FAQ
Question1:
Are you manufacturer?
A: Yes, we are manufacturer with more than 10 years' experience.
A: Yes, we are manufacturer with more than 10 years' experience.
Question2:
What are your advantages compared with your competitors?
A:
With rich industry experience and strict Product Quality Control systems, we provide:
1. Stable and reliable product at reasonable price
2. Good customer service: Fast response to any inquiry or question
3. On-time delivery.
Question 3:
What's the delivery time and w
hich ports do you usually ship at
?
A
:
We will deliver the product in 7 days after receiving the deposit.
We can load container at: Qingdao, Shanghai, Tianjin, Guangzhou etc.
Question4
:
What's the lifetime of the wearing parts?
A:
The material of our product is of high quality, and the lifetime of our wearing parts is twice longer than the others,including the roller skin, die and bearing.
Question5
:
What
shall we do if breakdown occurs？
A:
.
In case of failure, please inform us. During the warranty period, in case of failure, we will respond in time after receiving the buyer's notice. We will handle the fault by telephone / fax or email according to the buyer's requirements.
Question 6:
Do you have English Manual for each machinery?
A:
Yes. The instruction manual,the test report and other Data Sheets related shall be provided by us.
Question7
:
Do you have some foreign customers useing your equipments?
A:
Yes , we have customers all over the world.
Question8
:
MOQ(Minimum Order Quantity)
A:
One set is welcome, and mix products for order are welcome.
Question 9:
Can you customize the machine for me ?
A: Yes, we can customize according to customer's requirements.
A: Yes, we can customize according to customer's requirements.
Question10
:
Package
A:
Standard export wooden case or other packages depending on products packaging weight is subject to the actual pack.
Question11:
How long is your warranty?
A:
The warranty period of our products is one year (excluding man-made damage and misuse). During the warranty period, we will provide maintenance videos or face-to-face videos to teach you. If the machine has serious quality problems, we support returning it.
Question 12:
What are your Payment Terms?
A: Payment shall be made by T/T, L/C, or D/P, etc., it varies considerably according to the region that you are in.
A: Payment shall be made by T/T, L/C, or D/P, etc., it varies considerably according to the region that you are in.
Question 13:
Can you show how the machine works?
A:
Certainly, we will send you the Operating video & instruction to you together with machines, to help you use the machines better.
Question 14:
Do you have any other fish processing equipment?
A: Yes. we have fish pre processing equipment and deep process machinery, such as fish head removing machine, fish block making
machine, fish scaling machine, fish gutting machine, fish bone and meat separating machine, fish ball making machine.etc.
A: Yes. we have fish pre processing equipment and deep process machinery, such as fish head removing machine, fish block making
machine, fish scaling machine, fish gutting machine, fish bone and meat separating machine, fish ball making machine.etc.
