Quick Details
-
Brand Name:
-
SOMPOM
-
Model Number:
-
S-200-12
-
Output Frequency:
-
90KHZ
-
Output Current:
-
16.5A
-
Product Name:
-
switch power supply
-
Dimension:
-
199*97*42mm
-
weight:
-
505g
-
Warranty:
-
2 years
-
Application:
-
LED Related Products
-
Efficiency:
-
>85%
-
Working Temp:
-
-10~60℃
-
Protections:
-
Shortcuit Overtemp Overload Overtemp
-
Certification:
-
CE FCC ROHS ISO9001
Quick Details
-
Input Voltage:
-
85V-265VAC, 110V/220V optional
-
Output Voltage:
-
12V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SOMPOM
-
Model Number:
-
S-200-12
-
Output Frequency:
-
90KHZ
-
Output Current:
-
16.5A
-
Product Name:
-
switch power supply
-
Dimension:
-
199*97*42mm
-
weight:
-
505g
-
Warranty:
-
2 years
-
Application:
-
LED Related Products
-
Efficiency:
-
>85%
-
Working Temp:
-
-10~60℃
-
Protections:
-
Shortcuit Overtemp Overload Overtemp
-
Certification:
-
CE FCC ROHS ISO9001

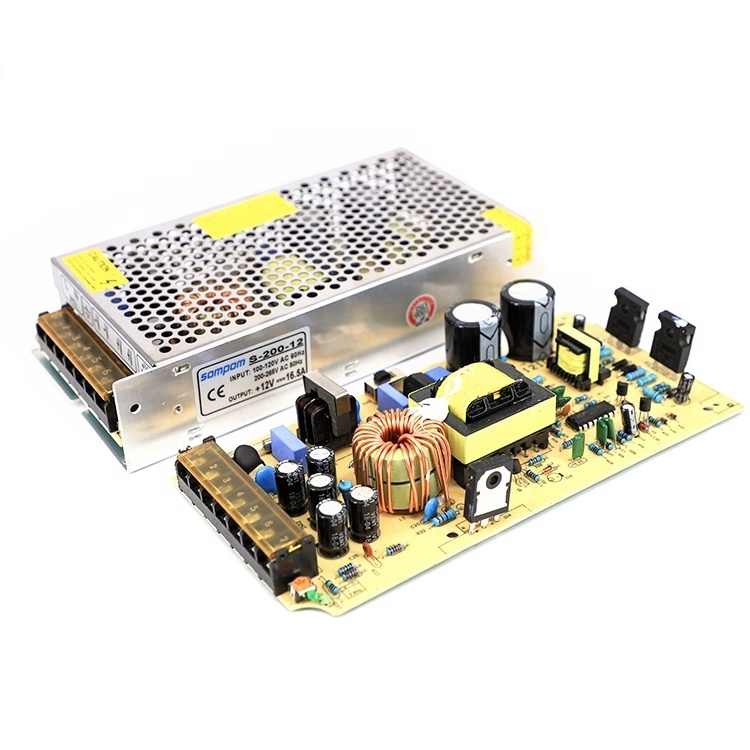

China supplier 200W high quality 12Volt 16.5Amp dc switch power supply for LCD screen LED display lighting
| DC Output | DC Voltage: 12V |
| DC Current : 16. 5A | |
| Ripple & Noise: 80MV | |
| DC Adjustable Range: ±10% Rated Voltage | |
| Voltage Tolerance: ±2.0% | |
| Line Regulation: ±0.5% | |
| Load Regulation: ±1% | |
| Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC | |
| AC Input | AC Voltage Range: 85-264VAC |
| Frequency Range: 47-63Hz | |
| Efficiency:>85% | |
| AC Current: 0.86/115V 0.4A/230V | |
| AC Inrush Current: 20A/115V 40A/230V | |
| Leakage Current< 0.5mA /240VAC | |
| Protection | Over-load: 105%-150% hiccup mode,Auto-recovery |
| Over-voltage: 115%-135% Cut Off the Output,Auto-recovery | |
| Over-temp. : Shut down O/P voltage, Auto-recovery | |
| Environment | Working temp.: -10~ +60 C° (Refer to output load derating curve) |
| Working Humidity:20 ~ 90% RH, non-condensing | |
| Storage Temp.: -10~ +60 C° | |
| Storage Humidity: 10 ~ 95% RH | |
| Safety | Isolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25 C° / 70% RH |
| Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |
| Safety standards: CE,RoHS,FCC,ISO9001 |
|
|
Features: 110V/220V AC to DC Power Series 3V 5V 6V 9V 12V 13.8V 15V 18V 24V 28V 36V 48V |
| Model Series Link (View more) | |
| 3V Series: 3V5A , 3V10A , 3V20A , 3V30A , 3V40A , 3V60A | |
|
5V Series: 5V2A , 5V3.8A , 5V5.5A , 5V10A , 5V20A , 5V30A , 5V40A , 5V60A |
|
| 6V Series: 6V10A , 6V20A , 6V30A , 6V40A , 6V50A | |
| 9V Series: 9V2A , 9V5A , 9V10A , 9V20A , 9V30A | |
|
12V Series: 12V1A , 12V2A , 12V3.2A , 12V5A , 12V8.5A , 12V10A , 12V12.5A , 12V15A , 12V16.5A , 12V20A , 12V30A , 12V40A , 12V50A . |
|
| 13.8V Series: 13.8V30A | |
| 15V Series: 15V2A , 15V5A , 15V10A , 15V20A | |
| 18V Series: 18V2A , 18V3A , 18V5A , 18V7.5A , 18V10A , 18V20A | |
|
24V Series: 24V1A , 24V2A , 24V3A , 24V5A , 24V7.5A , 24V10A 24V15A , 24V20A , 24V25A |
|
| 28V Series:28V1A, 28V10A | |
| 36V Series: 36V2A , 36V5A , 36V10A | |
| 48V Series: 48V2A , 48V3A , 48V5A , 48V7.5A , 48V10A , 48V15A |
SOMPOM is focusing on offering LED switch power, waterproof switch power,rainproof switch power,AC-DC power adapter and CCTV camera power. Withe the over load protection, over voltage protection and high temperature protection. SOMPOM wins customer ’ s favor by its high efficiency, reliability and long life span. Each of the switch power is extremely safe and stable after 5 times testing. All of our powers have the ISO9001,CE,FC,ROHS certification. Our switch powers are widely used in industrial automation field, indoor and outdoor LED lighting, LED lighting engineering.
Q1:What is your MOQ of switch power?
A:Our MOQ is 1 piece.
Q2:How many year warranty of your Led driver?
A:Two years.
Q3:Do you offer sample of power?
A:Yes,We offer free sample,but you need pay the shippment.
Q4:Do you have switch power factory?
A:Yes,we are OEM & ODM manufacturer in Dongguan.
Q5:Is your power with copper transform or something?
A:We can do with complete copper transform and copper cladding aluminum.
Q6:What is your MOQ of switch power?
A:Yes,we have CE,RoHS,FCC and ISO9001 right now.If you need other certification with large order,
We can apply for it.
|
ADVANCED MACHINE
Its brand SOMPOM is well-known at home and abroad. |
|
|
LONG-TIME BURN-IN TEST
Each of the switch power is extremely safe and stable after 5 times testing. |
|
|
OEM&ODM SERVICE
This company is engaged in the design, manufacture and sale of switching power series. |
|
|
OUR CERTIFICATE
All of our products have the ISo9001 CE,FC,ROHS certification. |
